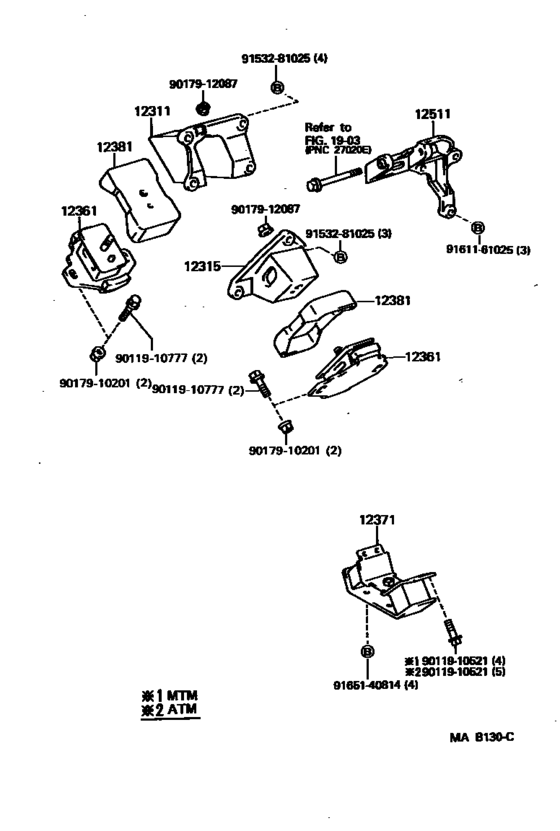

Mounting ([08.1990 - 11.1995] (9008-9511)3VZE) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1990 - 1995
- Sales region
- General
- Frame
- VZN130
- grade
- SR5
- ENGINE
- 3VZE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- 4RUNNER
- From
- 08.1990
- To
- 11.1995
- Body
- WG
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Body
- 4D
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-65020
Bracket, Engine Mounting, Front No.1 Rh
[08.1990 - 11.1995] 3VZE..VZN130 |
12311-65020 |
— | ||
|
12315
|
12315
12315-65020
Bracket, Engine Mounting, Front No.1 Lh
[08.1990 - 11.1995] 3VZE..VZN130 |
12315-65020 |
— | ||
|
12361
|
12361
12361-65010
Insulator, Engine Mounting, Front
[08.1990 - 11.1995] 3VZE..VZN130 |
12361-65010 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-65011 Insulator, Engine Mounting, Front[08.1990 - 11.1995] 3VZE..VZN130 |
12361-65011 |
from US $53.88 |
||
|
12371
|
12371
12371-65010 Insulator, Engine Mounting, Rear No.1[08.1990 - 12.1991] 3VZE..VZN130..5F |
12371-65010 |
from US $126.79 |
||
|
12371
|
12371
12371-65100
Insulator, Engine Mounting, Rear No.1
[01.1992 - 11.1995] 3VZE..VZN130..5F |
12371-65100 |
— | ||
|
12381
|
12381
12381-65011 Stabilizer, Engine Mounting[08.1990 - 05.1992] 3VZE..VZN130 |
12381-65011 |
US $31.74 |
||
| replacement | |||||
|
12381
|
12381
12381-65030 Stabilizer, Engine Mounting[08.1990 - 05.1992] 3VZE..VZN130 |
12381-65030 |
from US $15.64 |
||
|
12381
|
12381
12381-65020 Stabilizer, Engine Mounting[05.1992 - 07.1992] 3VZE..VZN130 |
12381-65020 |
US $31.01 |
||
| replacement | |||||
|
12381
|
12381
12381-65030 Stabilizer, Engine Mounting[05.1992 - 07.1992] 3VZE..VZN130 |
12381-65030 |
from US $15.64 |
||
|
12381
|
12381
12381-65030 Stabilizer, Engine Mounting[07.1992 - 11.1995] 3VZE..VZN130 |
12381-65030 |
from US $15.64 |
||
|
12511
|
12511
12511-65010 Bracket, Alternator, No.1[08.1990 - 08.1992] 3VZE..VZN130 |
12511-65010 |
US $47.76 |
||
| replacement | |||||
|
12511
|
12511
12511-65011 Bracket, Alternator, No.1[08.1990 - 08.1992] 3VZE..VZN130 |
12511-65011 |
US $47.76 |
||
|
12511
|
12511
12511-65011 Bracket, Alternator, No.1[08.1992 - 11.1995] 3VZE..VZN130 |
12511-65011 |
US $47.76 |
||
|
9011910521
|
9011910521
90119-10521
New Genuine Part
|
90119-10521 |
— | ||
|
9011910777
|
9011910777
90119-10777 New Genuine Part |
90119-10777 |
US $3.05 |
||
|
9017910201
|
9017910201
90179-10201 NUT |
90179-10201 |
from US $2.51 |
||
|
9017912087
|
9017912087
90179-12087 New Genuine Part |
90179-12087 |
US $1.97 |
||
|
9153281025
|
9153281025
91532-81025
New Genuine Part
|
91532-81025 |
— | ||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
