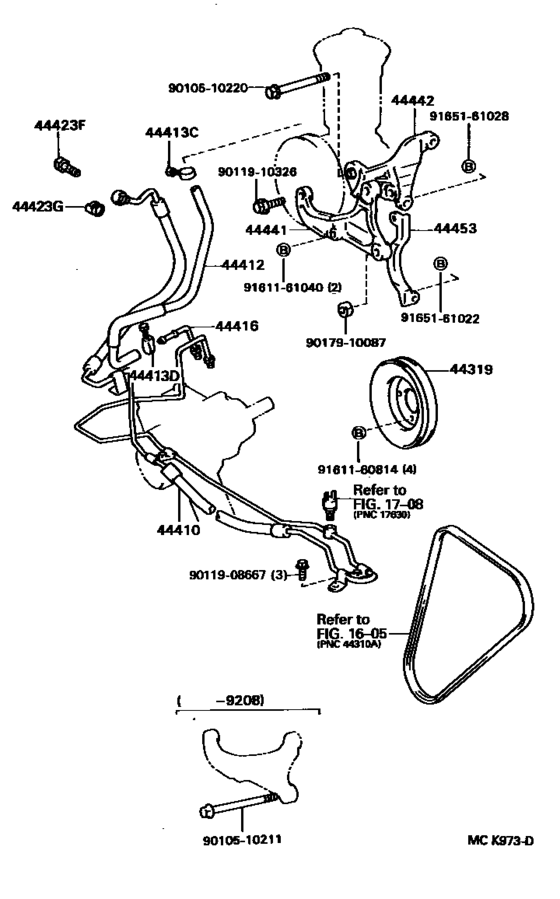

Power Steering Tube ([08.1990 - 11.1995] (9008-9511)VZN130) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1990 - 1995
- Sales region
- General
- Frame
- VZN130
- grade
- SR5
- ENGINE
- 3VZE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- 4RUNNER
- From
- 08.1990
- To
- 11.1995
- Body
- WG
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Body
- 4D
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44319
|
44319
44319-35020
Pulley, Vane Pump Drive
[08.1990 - 11.1995] VZN130 |
44319-35020 |
— | ||
|
44410
|
44410
44410-35330 Tube Assy, Pressure Feed[08.1990 - 11.1995] VZN130 |
44410-35330 |
US $420.26 |
||
|
44412
|
44412
44412-35170
Hose, Return
[08.1990 - 11.1995] VZN130 |
44412-35170 |
— | ||
|
44413C
|
44413C
90460-01001 Clamp, Oil Cooler Hose[08.1991 - 04.1994] VZN130 |
90460-01001 |
US $10.39 |
||
|
44413C
|
44413C
90467-16008
Clip(For Oil Return Hose)
[04.1994 - 11.1995] VZN130 |
90467-16008 |
— | ||
| replacement | |||||
|
44413C
|
44413C
90467-16019 Clip(For Return No.1)[04.1994 - 11.1995] VZN130 |
90467-16019 |
from US $2.40 |
||
|
44413D
|
44413D
90460-01001 Clamp, Oil Cooler Hose[08.1991 - 04.1994] VZN130 |
90460-01001 |
US $10.39 |
||
|
44413D
|
44413D
90467-16008
Clip(For Oil Return Hose)
[04.1994 - 11.1995] VZN130 |
90467-16008 |
— | ||
| replacement | |||||
|
44413D
|
44413D
90467-16019 Clip(For Return No.1)[04.1994 - 11.1995] VZN130 |
90467-16019 |
from US $2.40 |
||
|
44416
|
44416
44416-35100
Tube, Return(For Steering Gear Outlet)
[08.1988 - 12.1998] LN107,111,13#,RN106,110,13#,VZN130,YN13#..RHD |
44416-35100 |
— | ||
|
44423F
|
44423F
90401-16008 Bolt, Union(For Pressure Feed Tube)[10.1989 - 04.1994] VZN130,YN106,13#..RHD |
90401-16008 |
from US $10.93 |
||
|
44423F
|
44423F
96341-41603 Bolt, Union(For Rear Stabilizer Contorol Tube)[04.1994 - 08.1997] VZN130,YN106..RHD |
96341-41603 |
from US $5.56 |
||
|
44423G
|
44423G
44327-12010 Gasket(For Pressure Hose)[04.1994 - 08.1997] VZN130,YN106..RHD |
44327-12010 |
from US $4.54 |
||
|
44423G
|
44423G
90430-16242 Gasket, W/head Straight Screw Plug[10.1989 - 04.1994] VZN130,YN106,13#..RHD |
90430-16242 |
from US $0.82 |
||
|
44441
|
44441
44441-35020
Bracket, Pump, Front
[08.1990 - 11.1995] VZN130 |
44441-35020 |
— | ||
|
44442
|
44442
44442-35010
Bracket, Pump, Rear
[08.1990 - 11.1995] VZN130 |
44442-35010 |
— | ||
|
44453
|
44453
44453-35010 Stay, Pump, FrontPUMP, FRONT [08.1990 - 11.1995] VZN130 |
44453-35010 |
US $25.77 |
||
|
44453
|
44453
44453-35030 Stay, Pump, FrontPUMP, FRONT [08.1990 - 11.1995] VZN130 W(AIR CONDITIONER) |
44453-35030 |
US $21.99 |
||
|
9010510211
|
9010510211
90105-10211 New Genuine Part |
90105-10211 |
US $5.39 |
||
|
9010510220
|
9010510220
90105-10220
New Genuine Part
|
90105-10220 |
— | ||
|
9011908667
|
9011908667
90119-08667 BOLT |
90119-08667 |
from US $1.23 |
||
|
9011910326
|
9011910326
90119-10326
New Genuine Part
|
90119-10326 |
— | ||
| replacement | |||||
|
9011910326
|
9011910326
90119-10719 BOLT WWASHER |
90119-10719 |
US $4.12 |
||
|
9017910087
|
9017910087
90179-10087 Nut (For Front Lower Ball Joint Setting) |
90179-10087 |
from US $0.98 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161161040
|
9161161040
91611-61040
Bolt(For Transaxle Case & Engine Setting)
|
91611-61040 |
— | ||
| replacement | |||||
|
9161161040
|
9161161040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9165161022
|
9165161022
91651-61022 Bolt(For Transaxle & Engine Setting) |
91651-61022 |
US $1.10 |
||
|
9165161028
|
9165161028
91651-61028 New Genuine Part |
91651-61028 |
US $1.31 |
||
