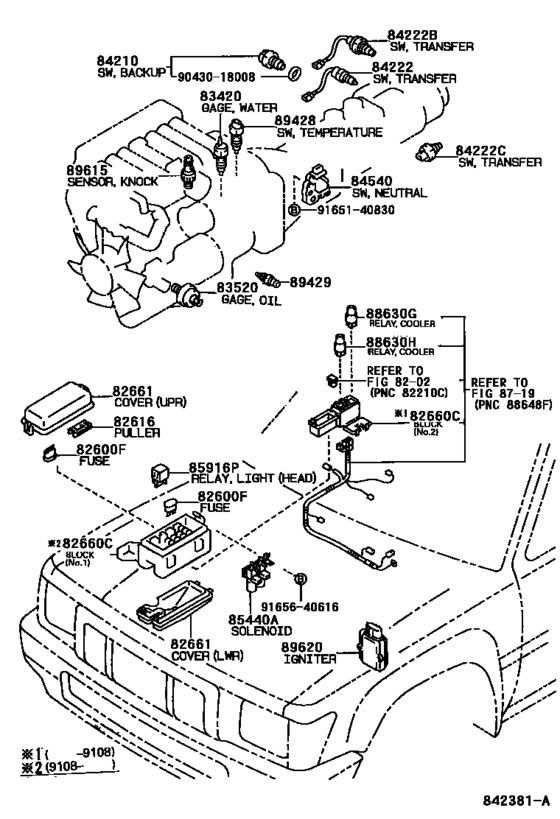

Switch & Relay & Computer ([08.1990 - ] ENGINE & ENGINE ROOM (9008- )VZN130) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1990 - 1995
- Sales region
- General
- Frame
- VZN130
- grade
- SR5
- ENGINE
- 3VZE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- 4RUNNER
- From
- 08.1990
- To
- 11.1995
- Body
- WG
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Body
- 4D
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-09002 Fusible Link[08.1988 - 06.2001] LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 10A |
90982-09002 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[08.1988 - 06.2001] LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 15A |
90982-09003 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[08.1988 - 06.2001] LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[08.1988 - 06.2001] LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 7.5A |
90982-09005 |
from US $0.99 |
||
|
82616
|
82616
82616-89102
Puller, Fuse
[08.1988 - 08.1991] LN106,111,13#,RN105,110,13#,VZN130,YN106,13# |
82616-89102 |
— | ||
|
82660C
|
82660C
82660-35030
Block Assy, Relay
[08.1991 - 08.1992] LN10#,111,13#,RN10#,110,13#,VZN130,YN106 |
82660-35030 |
— | ||
|
82660C
|
82660C
82660-89131
Block Assy, Relay
[08.1990 - 08.1991] LN13#,RN13#,VZN130,YN135 W(AUTOMATIC AIR CONDITIONER),NO.2 |
82660-89131 |
— | ||
|
82660C
|
82660C
82660-89136 Block Assy, Relay[08.1990 - 08.1991] LN13#,RN13#,VZN130,YN135 W(MANUAL AIR CONDITIONER),NO.2 |
82660-89136 |
US $12.81 |
||
|
82661
|
82661
82662-35150
Cover, Relay Block, No.1
[08.1991 - 11.1995] VZN130 UPR |
82662-35150 |
— | ||
|
82661
|
82661
82662-35250 Cover, Relay Block, No.1[02.1991 - 08.1991] VZN130 UPR |
82662-35250 |
US $21.55 |
||
|
82661
|
82661
82662-89116 Cover, Relay Block, No.1[08.1990 - 02.1991] VZN130 UPR |
82662-89116 |
US $21.55 |
||
| replacement | |||||
|
82661
|
82661
82662-35250 Cover, Relay Block, No.1[08.1990 - 02.1991] VZN130 UPR |
82662-35250 |
US $21.55 |
||
|
82661
|
82661
82663-35010
Cover, Relay Block, No.1
[08.1991 - 08.1992] RN10#..LHD; RN135;RN106..ARL;LN10#,111,13#,RN105,110,130,VZN130,YN106..ARL,GEN LWR |
82663-35010 |
— | ||
|
82661
|
82661
82663-89101
Cover, Relay Block, No.1
[08.1988 - 08.1991] LN106,111,13#,RN105,110,13#,VZN130,YN106,13# LWR |
82663-89101 |
— | ||
|
83420
|
83420
83420-16020 Gage Assy, Water Temperature Sender[08.1991 - 11.1995] VZN130 |
83420-16020 |
from US $36.93 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[08.1988 - 08.1991] LN106,111,13#,RN105,110,13#,VZN130,YN106,13# |
83420-20020 |
from US $29.21 |
||
|
83520
|
83520
83520-14023
Gage Assy,oil Pressure Sender
[08.1988 - 08.1992] RN10#,110,13#,VZN130,YN130..SR5 DENSO |
83520-14023 |
— | ||
| replacement | |||||
|
83520
|
83520
83520-35032 Gage Assy,oil Pressure Sender[08.1988 - 08.1992] RN10#,110,13#,VZN130,YN130..SR5 DENSO |
83520-35032 |
from US $41.50 |
||
|
83520
|
83520
83520-34010 Gage Assy,oil Pressure Sender[08.1992 - 09.1999] RN106,110,135,VZN130..SR5 |
83520-34010 |
US $55.56 |
||
|
83520
|
83520
83520-55011 Gage Assy,oil Pressure Sender[08.1988 - 08.1992] RN10#,110,13#,VZN130,YN130..SR5 YAZAKI |
83520-55011 |
from US $69.72 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[08.1988 - 06.2001] LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[08.1988 - 06.2001] LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F |
84210-52050 |
from US $22.85 |
||
|
84222
|
84222
84222-12010 Switch, Transfer Indicator, No.1[08.1990 - 11.1995] VZN130..4D..5F SR LIMITED PACKAGE |
84222-12010 |
from US $54.43 |
||
|
84222
|
84222
84222-35060 Switch, Transfer Indicator, No.1[08.1990 - 11.1995] VZN130..4D..5F;LN13#,RN13#,YN135 |
84222-35060 |
from US $48.75 |
||
|
84222B
|
84222B
84222-35080 Switch, Transfer Indicator, No.1[08.1990 - 12.1998] LN107,111,RN106,110,VZN130..5F..ARL..CBU |
84222-35080 |
from US $52.08 |
||
|
84222C
|
84222C
84222-35070 Switch, Transfer Indicator, No.3[08.1990 - 08.1993] LN107,111,RN106,110,VZN130..ARL |
84222-35070 |
from US $47.66 |
||
|
85440A
|
85440A
85440-35010
Solenoid Assy, Four Wheel Drive Control
[08.1990 - 08.1993] VZN130 |
85440-35010 |
— | ||
|
85916P
|
85916P
90987-02006 Relay[08.1988 - 06.2001] LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
90987-02006 |
from US $26.75 |
||
|
88630G
|
88630G
90987-02004 Relay Assy, Starter[04.1989 - 08.1991] LN13#,RN13#,VZN130,YN13# |
90987-02004 |
from US $28.10 |
||
| replacement | |||||
|
88630G
|
88630G
909870200483 [04.1989 - 08.1991] LN13#,RN13#,VZN130,YN13# |
909870200483 |
US $53.75 |
||
|
88630G
|
88630G
90987-02009 Relay Assy[08.1991 - 08.1993] RN135..V;LN13#..GEN;RN135,VZN130..RHD |
90987-02009 |
from US $26.15 |
||
|
88630H
|
88630H
90987-03001 Relay[04.1989 - 08.1991] LN13#,RN13#,VZN130,YN13# |
90987-03001 |
from US $33.48 |
||
|
88630H
|
88630H
90987-03003 Relay Assy, Fuel Pump[08.1991 - 08.1993] RN135..V;LN13#..GEN;RN135,VZN130..RHD |
90987-03003 |
from US $23.44 |
||
|
89429
|
89429
89429-35060
Sensor, Oil Temperature
[08.1990 - 08.1991] LN111,RN110,VZN130..(2D,T1)..ARL TRANSMISSION; VZN130..4D..5F SR LIMITED PACKAGE,TRANSMISSION |
89429-35060 |
— | ||
|
89615
|
89615
89615-20010 Sensor, Knock Control[08.1990 - 08.1991] VZN130 |
89615-20010 |
from US $133.34 |
||
|
89615
|
89615
89615-50010 Sensor, Knock Control[08.1991 - 11.1995] VZN130 |
89615-50010 |
from US $133.34 |
||
|
89620
|
89620
89621-12050 Igniter Assy[08.1991 - 11.1995] VZN130 |
89621-12050 |
US $404.04 |
||
|
89620
|
89620
89621-30010
Igniter Assy
[08.1990 - 08.1991] VZN130 |
89621-30010 |
— | ||
| replacement | |||||
|
89620
|
89620
89621-12010
Igniter Assy
[08.1990 - 08.1991] VZN130 |
89621-12010 |
— | ||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.01 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
