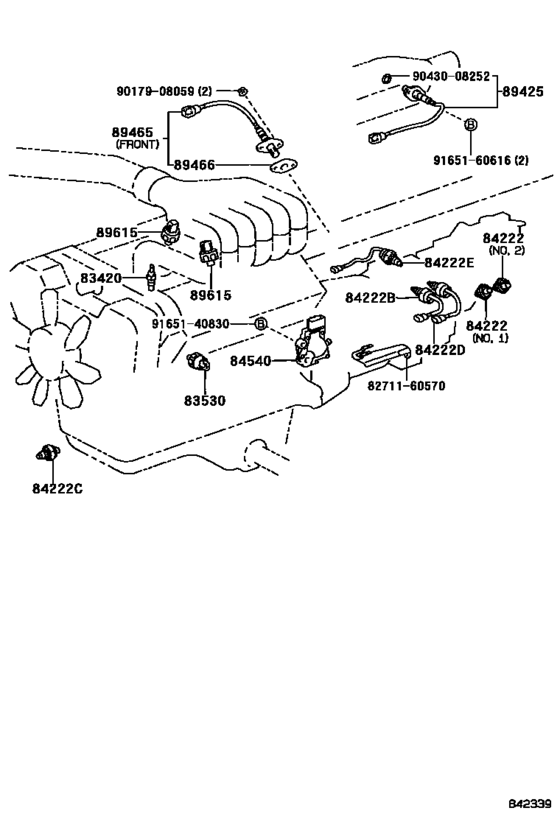

Switch & Relay & Computer ([11.1995 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (9511- )VZN18#) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1995 - 2002
- Sales region
- Japan
- Frame
- VZN185
- grade
- SSRG
- body
- WIB
- ENGINE
- 5VZFE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 11.1995
- To
- 11.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- Hilux Surf
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16020 Gage Assy, Water Temperature Sender[11.1995 -] VZN18# |
83420-16020 |
from US $50.49 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[03.1998 -] RZN18#,VZN18# ＤＥＮＳＯ |
83530-28020 |
from US $29.33 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.1998 -] RZN18#,VZN18# ＤＥＮＳＯ |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[03.1998 -] RZN18#,VZN18# ＤＥＮＳＯ |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-30090
Switch Assy, Oil Pressure (For Engine)
[11.1995 - 03.1998] RZN185,VZN185 |
83530-30090 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [11.1995 - 03.1998] RZN185,VZN185 |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.1998 -] RZN18#,VZN18# ＹＡＺＡＫＩ |
83530-60020 |
from US $25.21 |
||
|
84222
|
84222
84222-12010 Switch, Transfer Indicator, No.1[11.1995 -] KDN185,KZN185,RZN185,VZN185 ＮＯ．１ |
84222-12010 |
from US $49.25 |
||
|
84222
|
84222
84222-35120 Switch, Transfer Indicator, No.1[08.2000 - 12.2001] KDN185,RZN185,VZN185 ＮＯ．２ |
84222-35120 |
US $58.68 |
||
| replacement | |||||
|
84222
|
84222
84222-35121 Switch, Transfer Indicator, No.1[08.2000 - 12.2001] KDN185,RZN185,VZN185 ＮＯ．２ |
84222-35121 |
from US $48.50 |
||
|
84222
|
84222
84222-35121 Switch, Transfer Indicator, No.1[12.2001 -] KDN185,RZN185,VZN185 ＮＯ．２ |
84222-35121 |
from US $48.50 |
||
|
84222
|
84222
84222-60080
Switch, Transfer Indicator, No.1
[11.1995 - 08.1997] KZN185,VZN185..WIB ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD),ＮＯ．２ |
84222-60080 |
— | ||
| replacement | |||||
|
84222
|
84222
84222-60081 Switch, Transfer Indicator, No.1[11.1995 - 08.1997] KZN185,VZN185..WIB ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD),ＮＯ．２ |
84222-60081 |
from US $41.80 |
||
|
84222
|
84222
84222-60081 Switch, Transfer Indicator, No.1[09.1999 - 08.2000] KZN185,RZN185,VZN185 ＮＯ．２ |
84222-60081 |
from US $41.80 |
||
|
84222B
|
84222B
84222-35080 Switch, Transfer Indicator, No.1[11.1995 -] KZN185..4FC;KDN185,RZN185,VZN185;KZN185..5F..(SSR,SSRV,SSRX) |
84222-35080 |
from US $55.79 |
||
|
84222C
|
84222C
84222-35070 Switch, Transfer Indicator, No.3[11.1995 - 08.2000] KZN185,RZN185,VZN185 |
84222-35070 |
from US $49.94 |
||
|
84222D
|
84222D
84222-35090 Switch, Transfer Indicator, No.1[11.1995 -] KDN185,KZN185,RZN185,VZN185 |
84222-35090 |
from US $54.34 |
||
|
84222E
|
84222E
84222-35110 Switch, Transfer Indicator, No.3[11.1995 - 07.1998] KZN185,VZN185..WIB |
84222-35110 |
from US $53.02 |
||
|
84540
|
84540
84540-30270 Switch Assy, Neutral Start[11.1995 - 08.2000] KZN185,RZN18#,VZN18#..4FC |
84540-30270 |
US $145.44 |
||
|
84540
|
84540
84540-30320 Switch Assy, Neutral Start[08.2000 -] KDN185,RZN18#,VZN185 |
84540-30320 |
US $174.24 |
||
|
89425
|
89425
89425-80034
Sensor, Exhaust Gas Temperature
[11.1995 - 08.1997] VZN185 |
89425-80034 |
— | ||
|
89465
|
89465
89465-39755 Sensor, Oxygen[11.1995 - 08.2000] VZN18# |
89465-39755 |
US $149.97 |
||
|
89465
|
89465
89465-80010 Sensor, Oxygen[08.2000 -] VZN185 |
89465-80010 |
US $149.97 |
||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[11.1995 - 12.2001] RZN18#,VZN18# |
89466-20020 |
from US $13.42 |
||
|
89615
|
89615
89615-12040 Sensor, Knock Control[11.1995 -] VZN18# ＭＡＴＳＵＳＨＩＴＡ |
89615-12040 |
from US $147.58 |
||
|
89615
|
89615
89615-12050
Sensor, Knock Control
[11.1995 -] VZN18# ＤＥＮＳＯ |
89615-12050 |
— | ||
| replacement | |||||
|
89615
|
89615
89615-12090 Sensor, Knock Control[11.1995 -] VZN18# ＤＥＮＳＯ |
89615-12090 |
from US $137.81 |
||
|
8271160570
|
8271160570
82711-60570 Wire, Fuse To Fuse(for Combustion Heater) |
82711-60570 |
US $14.56 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9043008252
|
9043008252
90430-08252 Gasket(For Catalytic Converter Sensor Guide) |
90430-08252 |
US $3.84 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
