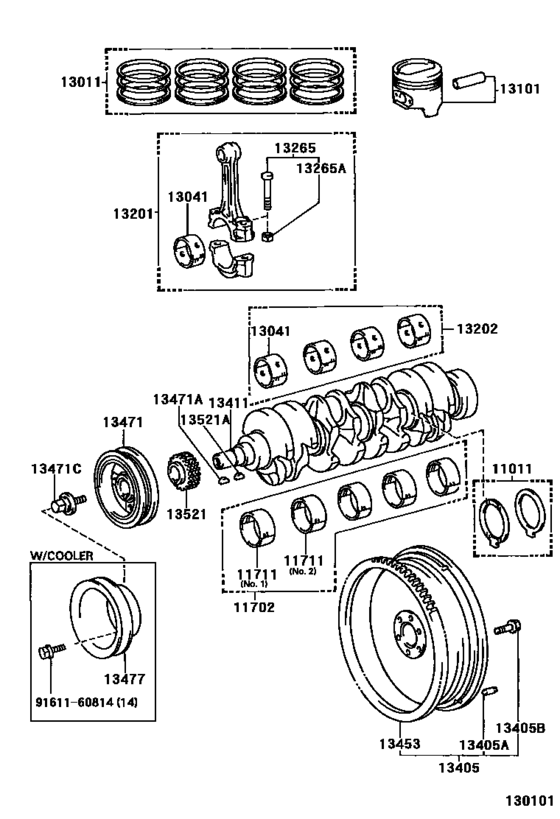

Crankshaft & Piston ([08.1988 - ] (8808- )4Y#) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1989 - 1990
- Sales region
- General
- Frame
- YN130
- grade
- SR5
- ENGINE
- 4YE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- 4RUNNER
- From
- 08.1989
- To
- 08.1990
- Body
- WG
- Gear Shift Type
- 4FC
- Vehicle Model
- 4Runner
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Body
- 2D
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-25010 Washer Set, Crankshaft Thrust[08.1988 - 08.1997] 4Y#..YN106,13# STD |
11011-25010 |
from US $22.85 |
||
|
11702
|
11702
11704-71020 Bearing Set, Crankshaft (0.25)[08.1988 - 12.1995] 4Y#..YN106,13# U/S 0.25 |
11704-71020 |
US $206.17 |
||
|
11711
|
11711
11701-71020-01 Bearing, Crankshaft[08.1988 - 12.1995] 4Y#..YN106,13# MARK 1 |
11701-71020-01 |
from US $22.89 |
||
|
11711
|
11711
11701-71020-02 Bearing, Crankshaft[08.1988 - 12.1995] 4Y#..YN106,13# MARK 2 |
11701-71020-02 |
from US $22.89 |
||
|
11711
|
11711
11701-71020-03 Bearing, Crankshaft[08.1988 - 12.1995] 4Y#..YN106,13# MARK 3 |
11701-71020-03 |
US $45.43 |
||
|
13011
|
13011
13011-73021 Ring Set, PistonPISTON [08.1989 - 08.1990] 4YE..YN130 STD |
13011-73021 |
US $237.33 |
||
| replacement | |||||
|
13011
|
13011
13011-73032 Ring Set, PistonPISTON [08.1989 - 08.1990] 4YE..YN130 STD |
13011-73032 |
from US $147.46 |
||
|
13011
|
13011
13013-73021 Ring Set, PistonPISTON [08.1989 - 08.1990] 4YE..YN130 O/S 0.50 |
13013-73021 |
US $235.87 |
||
| replacement | |||||
|
13011
|
13011
13013-73032 Ring Set, PistonPISTON [08.1989 - 08.1990] 4YE..YN130 O/S 0.50 |
13013-73032 |
from US $142.41 |
||
|
13041
|
13041
13041-71011-06
Bearing, Connecting Rod
[08.1988 - 08.1997] 4Y#..YN106,13# MARK 6 |
13041-71011-06 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-06 Bearing, Connecting Rod[08.1988 - 08.1997] 4Y#..YN106,13# MARK 6 |
13041-73010-06 |
from US $19.64 |
||
|
13041
|
13041
13041-71011-07
Bearing, Connecting Rod
[08.1988 - 08.1997] 4Y#..YN106,13# MARK 7 |
13041-71011-07 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-07 Bearing, Connecting Rod[08.1988 - 08.1997] 4Y#..YN106,13# MARK 7 |
13041-73010-07 |
US $34.42 |
||
|
13041
|
13041
13041-71011-08
Bearing, Connecting Rod
[08.1988 - 08.1997] 4Y#..YN106,13# MARK 8 |
13041-71011-08 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-08 Bearing, Connecting Rod[08.1988 - 08.1997] 4Y#..YN106,13# MARK 8 |
13041-73010-08 |
US $35.38 |
||
|
13101
|
13101
13101-73031-01 Piston Sub-Assy, W/pinW/PIN [08.1988 - 08.1997] 4Y#..YN106,13# STD,MARK 1 |
13101-73031-01 |
US $81.54 |
||
|
13101
|
13101
13101-73031-02 Piston Sub-Assy, W/pinW/PIN [08.1988 - 08.1997] 4Y#..YN106,13# STD,MARK 2 |
13101-73031-02 |
US $69.50 |
||
|
13101
|
13101
13101-73031-03 Piston Sub-Assy, W/pinW/PIN [08.1988 - 08.1997] 4Y#..YN106,13# STD,MARK 3 |
13101-73031-03 |
US $81.54 |
||
|
13101
|
13101
13103-73031 Piston Sub-Assy, W/pinW/PIN [08.1988 - 08.1997] 4Y#..YN106,13# O/S 0.50 |
13103-73031 |
from US $54.78 |
||
|
13201
|
13201
13201-79045 Rod Sub-Assy, Connecting[08.1988 - 08.1997] 4Y#..YN106,13# |
13201-79045 |
US $168.90 |
||
| replacement | |||||
|
13201
|
13201
13201-79046 Rod Sub-Assy, Connecting[08.1988 - 08.1997] 4Y#..YN106,13# |
13201-79046 |
US $168.90 |
||
|
13202
|
13202
13204-71011
Bearing Set, Connecting Rod
[08.1988 - 08.1997] 4Y#..YN106,13# U/S 0.25 |
13204-71011 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-73010 Bearing Set, Connecting Rod (0.25)[08.1988 - 08.1997] 4Y#..YN106,13# U/S 0.25 |
13204-73010 |
US $160.74 |
||
|
13265
|
13265
13265-29025 Bolt, Connecting Rod[08.1988 - 08.1997] 4Y#..YN106,13# |
13265-29025 |
US $13.62 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[08.1988 - 08.1997] 4Y#..YN106,13# |
90170-09001 |
US $3.05 |
||
|
13411
|
13411
13411-73010 Crankshaft[08.1988 - 08.1997] 4Y#..YN106,13# |
13411-73010 |
US $1,316.22 |
||
| replacement | |||||
|
13411
|
13411
13411-73900 Crankshaft[08.1988 - 08.1997] 4Y#..YN106,13# |
13411-73900 |
US $1,316.22 |
||
|
13471
|
13471
13408-73010 Pulley, Crankshaft[08.1989 - 08.1990] 4YE..YN130 |
13408-73010 |
US $256 |
||
|
13471A
|
13471A
90280-05010 Key(For Oil Pump Drive Spline)[08.1988 - 09.1992] 4Y#..YN106,13# |
90280-05010 |
from US $1.74 |
||
|
13471C
|
13471C
90105-14069 Bolt(For Crankshaft Pulley Set)[01.1989 - 08.1997] 4Y#..YN106,13# |
90105-14069 |
US $14 |
||
|
13477
|
13477
88451-20110
Pulley, Crankshaft, No.2
[08.1988 - 08.1994] 4Y#..YN106,13# |
88451-20110 |
— | ||
|
13521
|
13521
13521-33010 Gear Or Sprocket, Crankshaft Timing[08.1988 - 08.1997] 4Y#..YN106,13# |
13521-33010 |
from US $35.80 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[08.1988 - 09.1992] 4Y#..YN106,13# |
90280-05010 |
from US $1.74 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
