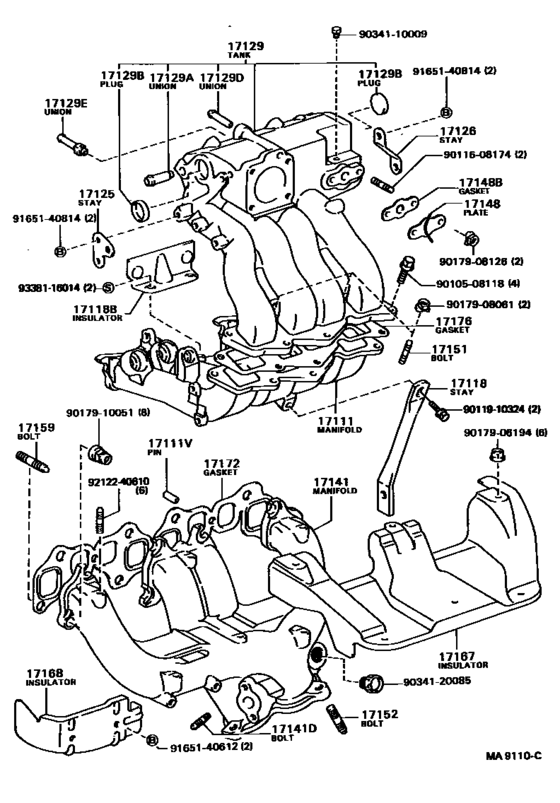

Manifold ([08.1989 - 08.1990] (8908-9008)4YE) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1989 - 1990
- Sales region
- General
- Frame
- YN130
- grade
- SR5
- ENGINE
- 4YE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- 4RUNNER
- From
- 08.1989
- To
- 08.1990
- Body
- WG
- Gear Shift Type
- 4FC
- Vehicle Model
- 4Runner
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Body
- 4D
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-73011
Manifold, Intake
[08.1989 - 08.1990] 4YE..YN130 |
17111-73011 |
— | ||
|
17111V
|
17111V
90250-08120 Pin, Straight, No.1[08.1989 - 08.1990] 4YE..YN130 |
90250-08120 |
from US $1.01 |
||
|
17118
|
17118
17118-73010 Stay, Manifold[08.1989 - 08.1990] 4YE..YN130 |
17118-73010 |
US $20.82 |
||
|
17118B
|
17118B
17853-73012 Insulator, Intake Manifold[08.1989 - 08.1990] 4YE..YN130 |
17853-73012 |
US $22.42 |
||
|
17125
|
17125
17125-73010 Stay, Surge Tank, No.1[08.1989 - 08.1990] 4YE..YN130 |
17125-73010 |
US $5.97 |
||
|
17126
|
17126
17126-73010 Stay, Surge Tank, No.2[08.1989 - 08.1990] 4YE..YN130 |
17126-73010 |
US $9.03 |
||
|
17129
|
17129
17109-73020
Tank, Intake Air Surge
[08.1989 - 08.1990] 4YE..YN130 |
17109-73020 |
— | ||
|
17129A
|
17129A
90405-14003 Union, No.1[08.1989 - 08.1990] 4YE..YN130 |
90405-14003 |
US $3.49 |
||
|
17129B
|
17129B
96411-43500 Plug, Tight, No.1[08.1989 - 08.1990] 4YE..YN130 |
96411-43500 |
from US $3.59 |
||
|
17129D
|
17129D
90405-10010 Union, No.2[08.1989 - 08.1990] 4YE..YN130 |
90405-10010 |
US $2.33 |
||
|
17129E
|
17129E
90404-51237 Union, No.3[08.1989 - 08.1990] 4YE..YN130 |
90404-51237 |
US $9.68 |
||
|
17141
|
17141
17141-72010
Manifold, Exhaust
[08.1989 - 08.1990] 4YE..YN130 |
17141-72010 |
— | ||
|
17141D
|
17141D
90116-08128 Bolt, Stud(For Manifold Stay)[08.1989 - 08.1990] 4YE..YN130 |
90116-08128 |
US $4.66 |
||
|
17148
|
17148
25617-73010 Plate, Exhaust Manifold(For Egr Inlet)[08.1989 - 08.1990] 4YE..YN130 |
25617-73010 |
US $8.59 |
||
|
17148B
|
17148B
25627-31020 Gasket, Egr Inlet[08.1989 - 12.1989] 4YE..YN130 |
25627-31020 |
US $2.77 |
||
|
17148B
|
17148B
25627-73010 Gasket, Egr Inlet[12.1989 - 08.1990] 4YE..YN130 |
25627-73010 |
from US $4.66 |
||
|
17151
|
17151
92132-40825
Bolt, Stud(For Water Outlet Setting)
[08.1989 - 08.1990] 4YE..YN130 |
92132-40825 |
— | ||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[08.1988 - 09.1989] 4Y#..YN106,13# |
90116-10058 |
from US $2.32 |
||
|
17152
|
17152
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe)[01.1990 - 08.1997] 4Y#..YN106,13# |
90116-10146 |
from US $1.81 |
||
|
17152
|
17152
90116-10148 Bolt, Stud(For Turbocharger)[09.1989 - 01.1990] 4Y#..YN106,13# |
90116-10148 |
US $2.06 |
||
|
17159
|
17159
90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[08.1988 - 08.1997] 4Y#..YN106,13# |
90116-10063 |
from US $0.98 |
||
|
17167
|
17167
17167-73011 Insulator, Exhaust Manifold Heat, No.1[08.1989 - 08.1990] 4YE..YN130 |
17167-73011 |
US $113.57 |
||
|
17168
|
17168
12521-72010 Insulator, Exhaust Manifold Heat, No.2[08.1988 - 08.1997] 4Y#..YN106,13# |
12521-72010 |
US $54.60 |
||
|
17172
|
17172
17172-73010 Gasket, Manifold To Cylinder Head[08.1988 - 08.1997] 4Y#..YN106,13# |
17172-73010 |
from US $16.11 |
||
|
17176
|
17176
17176-73011
Gasket, Air Surge Tank To Intake Manifold
[08.1989 - 12.1989] 4YE..YN130 |
17176-73011 |
— | ||
| replacement | |||||
|
17176
|
17176
17176-73012 Gasket, Air Surge Tank To Intake Manifold[08.1989 - 12.1989] 4YE..YN130 |
17176-73012 |
US $9.61 |
||
|
17176
|
17176
17176-73012 Gasket, Air Surge Tank To Intake Manifold[12.1989 - 08.1990] 4YE..YN130 |
17176-73012 |
US $9.61 |
||
|
9010508118
|
9010508118
90105-08118 New Genuine Part |
90105-08118 |
US $1.89 |
||
|
9011608174
|
9011608174
90116-08174 New Genuine Part |
90116-08174 |
US $1.89 |
||
|
9011910324
|
9011910324
90119-10324 Bolt, No.1 (For Center Support Bearing) |
90119-10324 |
US $1.75 |
||
| replacement | |||||
|
9011910324
|
9011910324
90119-10427 Bolt, No.1 (For Center Support Bearing) |
90119-10427 |
US $4.12 |
||
|
9017906194
|
9017906194
90179-06194
Nut (For Rear Wiper Arm Setting)
|
90179-06194 |
— | ||
| replacement | |||||
|
9017906194
|
9017906194
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.78 |
||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.76 |
||
|
9017908126
|
9017908126
90179-08126 Nut |
90179-08126 |
US $2.33 |
||
|
9017910051
|
9017910051
90179-10051 NUT |
90179-10051 |
US $4.66 |
||
|
9034110009
|
9034110009
90341-10009 Plug, No.2 |
90341-10009 |
US $3.84 |
||
|
9034120085
|
9034120085
90341-20085 Plug(For Clutch Housing) |
90341-20085 |
US $7.72 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9212240610
|
9212240610
92122-40610 Bolt, Stud(For Manifold To Carburetor) |
92122-40610 |
US $2.33 |
||
|
9338116014
|
9338116014
93381-16014 New Genuine Part |
93381-16014 |
US $0.87 |
||
