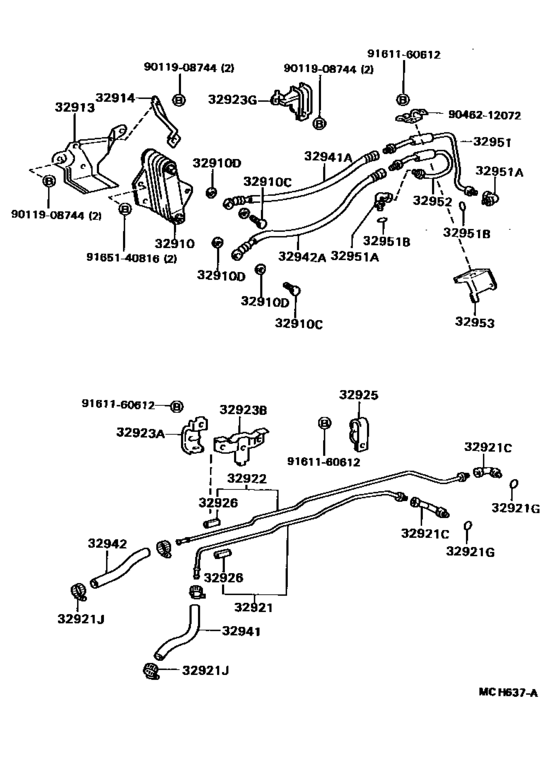

Oil Cooler & Tube (Atm) ([08.1989 - 08.1990] (8908-9008)YN130) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1989 - 1990
- Sales region
- General
- Frame
- YN130
- grade
- SR5
- ENGINE
- 4YE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- 4RUNNER
- From
- 08.1989
- To
- 08.1990
- Body
- WG
- Gear Shift Type
- 4FC
- Vehicle Model
- 4Runner
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Body
- 4D
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32910
|
32910
32910-35010 Cooler Assy, Oil[08.1989 - 11.1995] VZN130,YN130..4FC |
32910-35010 |
US $474.66 |
||
|
32910C
|
32910C
90401-14003 Bolt, Union(For Oil Cooler)[08.1989 - 11.1995] VZN130,YN130..4FC |
90401-14003 |
US $6.63 |
||
|
32910D
|
32910D
90430-14235 Gasket, W/head Taper Screw Plug[08.1989 - 11.1995] VZN130,YN130..4FC |
90430-14235 |
US $4.12 |
||
|
32913
|
32913
32913-35010 Bracket, Oil Cooler[08.1989 - 11.1995] VZN130,YN130..4FC |
32913-35010 |
US $43.53 |
||
|
32914
|
32914
32914-35010 Stay, Oil Cooler[08.1989 - 11.1995] VZN130,YN130..4FC |
32914-35010 |
US $14.27 |
||
|
32921
|
32921
32921-35210 Tube, Oil Cooler Inlet, No.1[08.1989 - 08.1990] YN130 |
32921-35210 |
US $17.18 |
||
|
32921C
|
32921C
90407-16008 Union(For Oil Cooler Tube)[08.1989 - 11.1995] VZN130,YN130..4FC OUTLET |
90407-16008 |
US $2.33 |
||
|
32921C
|
32921C
90407-16012 Union(For Oil Cooler Tube)[08.1989 - 11.1995] VZN130,YN130..4FC INLET |
90407-16012 |
US $9.68 |
||
|
32921G
|
32921G
90301-11006 O Ring, Transaxle Case Elbow[08.1989 - 11.1995] VZN130,YN130..4FC |
90301-11006 |
from US $2.50 |
||
|
32921J
|
32921J
90467-16013
Clip(For Oil Return Hose)
[08.1989 - 11.1995] VZN130,YN130..4FC |
90467-16013 |
— | ||
| replacement | |||||
|
32921J
|
32921J
90467-16022 Clip(For Water Inlet Hose)[08.1989 - 11.1995] VZN130,YN130..4FC |
90467-16022 |
from US $2.32 |
||
|
32922
|
32922
32922-35210 Tube, Oil Cooler Outlet, No.1[08.1989 - 08.1990] YN130 |
32922-35210 |
US $21.84 |
||
|
32923A
|
32923A
32929-28010 Clamp, Automatic Transmission Oil Cooler Tube[08.1989 - 08.1990] YN130 |
32929-28010 |
US $5.97 |
||
|
32923B
|
32923B
32923-35020 Clamp, Automatic Transmission Oil Cooler Tube[08.1989 - 08.1990] YN130 |
32923-35020 |
US $9.90 |
||
|
32923B
|
32923B
32923-35030 Clamp, Automatic Transmission Oil Cooler Tube[08.1989 - 08.1990] YN130 DEALER OPTION AIR CONDITIONER |
32923-35030 |
US $9.90 |
||
|
32923G
|
32923G
32908-35010 Clamp Sub-Assy, Oil Cooler Hose[08.1989 - 11.1995] VZN130,YN130..4FC |
32908-35010 |
US $16.60 |
||
|
32925
|
32925
90461-08628 Clamp, Automatic Transmission Oil Cooler Tube[08.1989 - 08.1990] YN130 |
90461-08628 |
US $2.62 |
||
|
32926
|
32926
32926-30020 Cushion, Oil Cooler Tube(Atm)[08.1989 - 08.1990] YN130 L=35,ID=10 |
32926-30020 |
US $3.05 |
||
|
32941
|
32941
90445-17097 Hose, Oil Cooler Water Outlet[08.1989 - 08.1990] YN130 |
90445-17097 |
from US $18.72 |
||
|
32941A
|
32941A
32941-35010
Hose, Oil Cooler Inlet, No.1
[08.1989 - 08.1990] YN130 |
32941-35010 |
— | ||
|
32942
|
32942
90445-17105 Hose(For Oil Cooler Inlet)[08.1989 - 08.1990] YN130 |
90445-17105 |
US $12.52 |
||
| replacement | |||||
|
32942
|
32942
90445-17103 Hose, Oil Cooler Tube(For Inlet)[08.1989 - 08.1990] YN130 |
90445-17103 |
from US $9.89 |
||
|
32942A
|
32942A
32942-35020 Hose, Oil Cooler Outlet, No.1[08.1989 - 08.1990] YN130 |
32942-35020 |
US $81.54 |
||
|
32951
|
32951
32951-35010
Tube, Transfer Oil Cooler Inlet
[08.1989 - 11.1995] VZN130,YN130..4FC |
32951-35010 |
— | ||
|
32951A
|
32951A
90407-16010 Union(For Oil Cooler Tube)[08.1989 - 11.1995] VZN130,YN130..4FC |
90407-16010 |
US $9.50 |
||
|
32951B
|
32951B
90301-10189 Ring, O(For Oil Cooler Tube Union)[08.1989 - 11.1995] VZN130,YN130..4FC |
90301-10189 |
from US $2.63 |
||
|
32952
|
32952
32952-35010
Tube, Transfer Oil Cooler Outlet
[08.1989 - 11.1995] VZN130,YN130..4FC |
32952-35010 |
— | ||
|
32953
|
32953
32953-35010
Clamp, Transfer Oil Cooler
[08.1989 - 11.1995] VZN130,YN130..4FC |
32953-35010 |
— | ||
|
9011908744
|
9011908744
90119-08744 New Genuine Part |
90119-08744 |
US $2.33 |
||
|
9046212072
|
9046212072
90462-12072 Clamp, Automatic Transmission Oil Cooler Tube |
90462-12072 |
US $4.37 |
||
| replacement | |||||
|
9046212072
|
9046212072
90462-12047 Clamp, Automatic Transmission Oil Cooler Tube |
90462-12047 |
US $2.71 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
