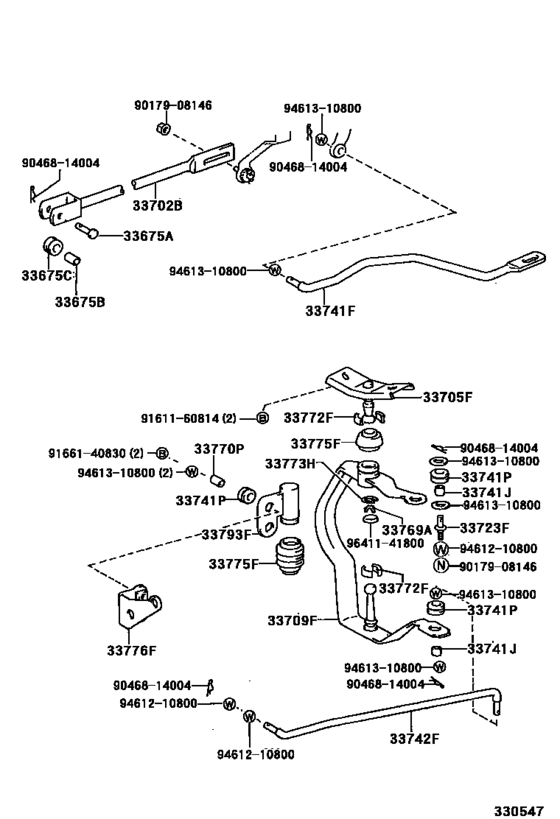

Shift Lever & Retainer ([08.1989 - 08.1990] (8908-9008)YN130) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1989 - 1990
- Sales region
- General
- Frame
- YN130
- grade
- SR5
- ENGINE
- 4YE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- 4RUNNER
- From
- 08.1989
- To
- 08.1990
- Body
- WG
- Gear Shift Type
- 4FC
- Vehicle Model
- 4Runner
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Body
- 4D
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33675A
|
33675A
90240-08054 Pin, W/hole (For Transmission Control Rod)[08.1989 - 08.1990] YN130 |
90240-08054 |
from US $1.79 |
||
|
33675B
|
33675B
90389-08005 Bushing(For Gear Selecting Rod)[08.1989 - 11.1995] VZN130,YN130..4FC |
90389-08005 |
from US $1.77 |
||
|
33675C
|
33675C
90480-17177 Grommet (For Transmission Control Rod)[08.1989 - 11.1995] VZN130,YN130..4FC |
90480-17177 |
from US $2.07 |
||
|
33702B
|
33702B
33702-35160
Rod Sub-Assy, Gear Shifting, No.1 (For Floor Shift)
[08.1989 - 08.1990] YN130 |
33702-35160 |
— | ||
|
33705F
|
33705F
33705-35020 Support Sub-Assy, Cross Shaft, No.1 (For Floor Shift)[08.1989 - 11.1995] VZN130,YN130..4FC |
33705-35020 |
US $21.84 |
||
|
33709F
|
33709F
33709-35110
Shaft Sub-Assy, Cross, No.1 (For Floor Shift)
[08.1989 - 11.1995] VZN130,YN130..4FC |
33709-35110 |
— | ||
|
33723F
|
33723F
33723-22010 Swivel, Connecting Rod (For Column Shift)[08.1989 - 11.1995] VZN130,YN130..4FC |
33723-22010 |
from US $11.47 |
||
|
33741F
|
33741F
33741-35200 Rod, Gear Shifting, No.1 (For Floor Shift)[08.1989 - 08.1990] YN130 |
33741-35200 |
US $30.28 |
||
|
33741J
|
33741J
90389-08005 Bushing(For Gear Selecting Rod)[08.1989 - 11.1995] VZN130,YN130..4FC |
90389-08005 |
from US $1.77 |
||
|
33741P
|
33741P
90480-17177 Grommet (For Transmission Control Rod)[08.1989 - 11.1995] VZN130,YN130..4FC |
90480-17177 |
from US $2.07 |
||
|
33742F
|
33742F
33742-35090 Rod, Gear Shifting, No.2(For Floor Shift)[08.1989 - 11.1995] VZN130,YN130..4FC |
33742-35090 |
US $19.95 |
||
|
33769A
|
33769A
33769-35010
Spring, Cross Shaft End
[08.1989 - 11.1995] VZN130,YN130..4FC |
33769-35010 |
— | ||
|
33770P
|
33770P
90387-08058
Coller (For Cross Shaft)
[08.1989 - 11.1995] VZN130,YN130..4FC |
90387-08058 |
— | ||
|
33772F
|
33772F
33772-20010 Bush (For Control Rod Support)[08.1989 - 11.1995] VZN130,YN130..4FC |
33772-20010 |
from US $4.43 |
||
|
33773H
|
33773H
96151-01600
Ring, Snap
[08.1989 - 11.1995] VZN130,YN130..4FC |
96151-01600 |
— | ||
|
33775F
|
33775F
33775-27020
Cover, Cross Shaft Dust, No.1 (For Floor Shift)
[08.1989 - 11.1995] VZN130,YN130..4FC UPR |
33775-27020 |
— | ||
|
33775F
|
33775F
33775-35010 Cover, Cross Shaft Dust (For Column Shift)[08.1989 - 11.1995] VZN130,YN130..4FC LWR |
33775-35010 |
US $7.16 |
||
|
33776F
|
33776F
33776-35100 Bracket, Cross Shaft, No.1 (For Floor Shift)[08.1989 - 08.1990] YN130 |
33776-35100 |
US $16.31 |
||
|
33793F
|
33793F
33793-35010 Bracket, Cross Shaft, No.2(For Floor Shift)[08.1989 - 11.1995] VZN130,YN130..4FC |
33793-35010 |
US $33.78 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.66 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9166140830
|
9166140830
91661-40830
New Genuine Part
|
91661-40830 |
— | ||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.84 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
|
9641141800
|
9641141800
96411-41800 Plug, Tight, No.1 |
96411-41800 |
from US $1.66 |
||
