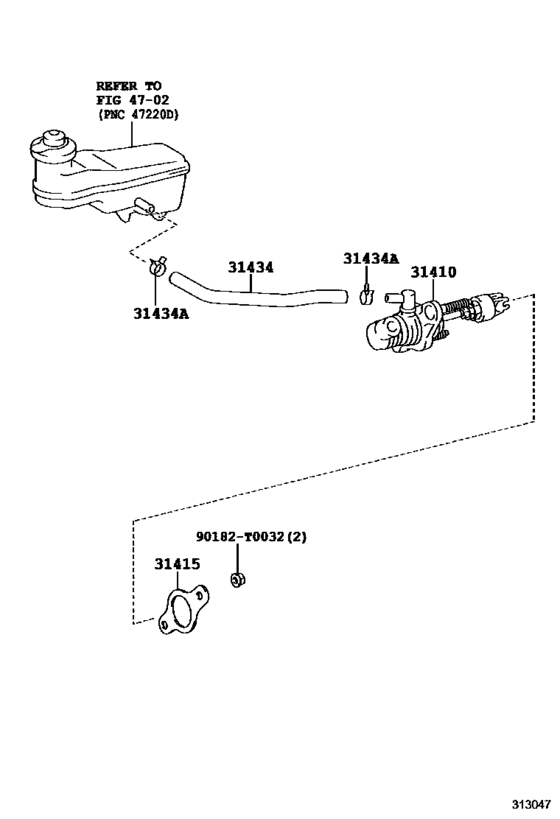

Clutch Master Cylinder ([11.2015 - ] (1511- )GUN142..5F..GCC ; (1511- )GUN143.. 5F) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- GUN143
- grade
- 28G
- ENGINE
- 1GDFTV
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- PHL
- Model
- INNOVA
- From
- 08.2016
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31410
|
31410
31420-0K070
Cylinder Assy, Clutch Master
[11.2015 -] GUN142..5F;GUN143..5F..PHL |
31420-0K070 |
— | ||
| replacement | |||||
|
31410
|
31410
31420-0K071 CYLINDER ASSY MASTE[11.2015 -] GUN142..5F;GUN143..5F..PHL |
31420-0K071 |
US $91.14 |
||
|
31415
|
31415
31415-0K010 Gasket, Clutch Master CylinderCLUTCH MASTER CYLINDER [11.2015 -] GUN142..5F..GCC;GUN143..5F..PHL;TGN14#..5F..(20E,20G,20Q,20V,27,27G,27SR,27V,N) |
31415-0K010 |
from US $1.10 |
||
|
31434
|
31434
31434-0K070
Tube, Clutch Reservoir
[11.2015 -] GUN143..5F..PHL;GUN142,TGN14#..LHD..5F..(20E,24,24G,27,27G,27SR,N) |
31434-0K070 |
— | ||
|
31434A
|
31434A
90466-T0052
Clip(For Clutch Reservoir Tube)
[11.2015 -] GUN143..5F..PHL;GUN142,TGN14#..5F..(20E,20G,20Q,20V,24,24G,24Q,24V,24Z,27,27G,27SR ,27V,G,N) |
90466-T0052 |
— | ||
