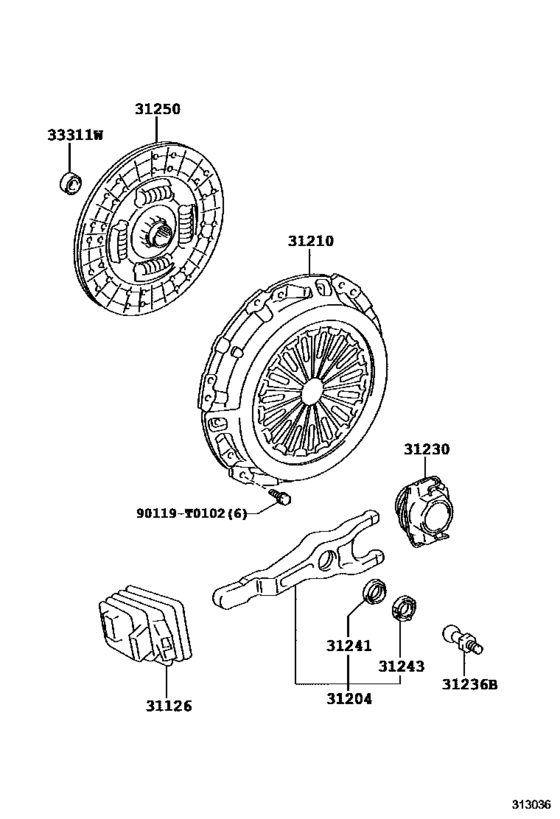

Clutch & Release Fork ([11.2015 - ] (1511- )GUN142..5F ; (1511- )GUN143..5F) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- GUN143
- grade
- 28G
- ENGINE
- 1GDFTV
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- PHL
- Model
- INNOVA
- From
- 08.2016
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-0K100
Boot, Clutch Release Fork
[11.2015 -] GUN142..5F;GUN143..5F..PHL TYPE C:REFER 33-01,TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31126-0K100 |
— | ||
|
31204
|
31204
31204-0K110 Fork Sub-Assy, Clutch Release[11.2015 -] GUN142..5F;GUN143..5F..PHL TYPE C:REFER 33-01,TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31204-0K110 |
from US $54.43 |
||
|
31210
|
31210
31210-0K310 Cover Assy, Clutch[11.2015 -] GUN143..5F..PHL;GUN142..IDNP..5F |
31210-0K310 |
US $223.45 |
||
|
31230
|
31230
31230-71050
Bearing Assy, Clutch Release
[11.2015 -] GUN142..5F;GUN143..5F..PHL TYPE C:REFER 33-01,TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31230-71050 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-71052 BEARING ASSY CLUTCH[11.2015 -] GUN142..5F;GUN143..5F..PHL TYPE C:REFER 33-01,TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31230-71052 |
from US $55.44 |
||
|
31236B
|
31236B
31236-0K030
Support, Release Fork
[11.2015 -] GUN142..5F;GUN143..5F..PHL TYPE C:REFER 33-01,TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31236-0K030 |
— | ||
|
31241
|
31241
31241-71010 Boot, Clutch Release Fork Support[11.2015 -] GUN142..5F;GUN143..5F..PHL TYPE C:REFER 33-01,TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31241-71010 |
from US $0.41 |
||
|
31243
|
31243
31243-0K010 Collar, Clutch Release Fork[11.2015 -] GUN142..5F;GUN143..5F..PHL TYPE C:REFER 33-01,TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31243-0K010 |
from US $1.43 |
||
|
31250
|
31250
31250-0K310
Disc Assy, Clutch
[11.2015 -] GUN143..5F..PHL;GUN142..IDNP..5F |
31250-0K310 |
— | ||
|
33311W
|
33311W
90363-T0006 Bearing (For Input Shaft)[11.2015 -] GUN142..5F;GUN143..5F..PHL |
90363-T0006 |
from US $4.50 |
||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[11.2015 -] GUN142..5F;GUN143..5F..PHL |
90363-12024 |
from US $5.67 |
||
|
90119T0102
|
90119T0102
90119-T0102 Bolt (For Transmission Control Cable Bracket) |
90119-T0102 |
US $0.27 |
||
