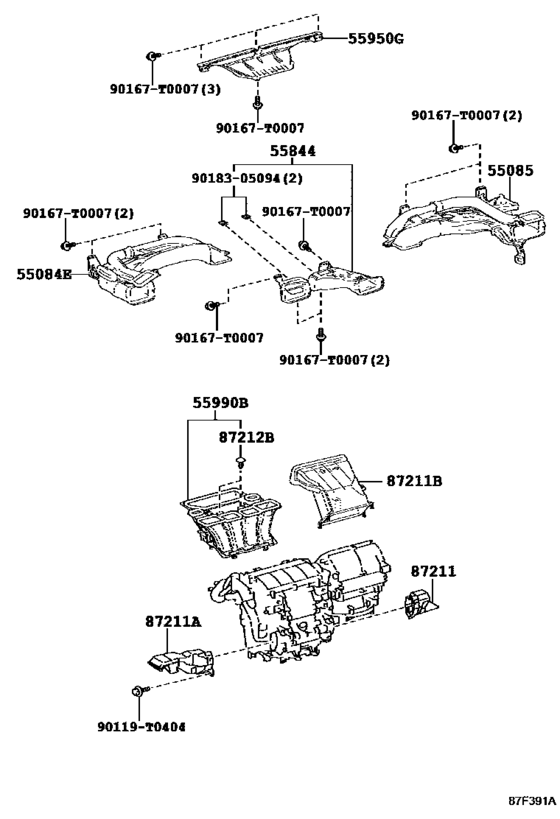

Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] FRONT AIR DUCT (1511- )GUN143,TGN140..LHD ; (1511- )GUN14 2,TGN141..LHD) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- GUN143
- grade
- 28G
- ENGINE
- 1GDFTV
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- PHL
- Model
- INNOVA
- From
- 08.2016
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55084E
|
55084E
55085-KK020
Duct Sub-Assy, Heater To Register, No.1
[11.2015 -] GUN142,TGN141..LHD..(24,24G,27,27G,27SR,27SRV);GUN143,TGN140..(20E,20G,20V,28E,28G ,28V,N)..(PHL,VN) |
55085-KK020 |
— | ||
|
55085
|
55085
55084-KK060
Duct Sub-Assy, Heater To Register, No.2
[11.2015 -] GUN142,TGN141..LHD..(24,24G,27,27G,27SR,27SRV);GUN143,TGN140..(20E,20G,20V,28E,28G ,28V,N)..(PHL,VN) |
55084-KK060 |
— | ||
|
55844
|
55844
55835-KK020
Duct, Heater To Register, No.2
[11.2015 -] GUN142,TGN141..LHD..(24,24G,27,27G,27SR,27SRV);GUN143,TGN140..(20E,20G,20V,28E,28G ,28V,N)..(PHL,VN) |
55835-KK020 |
— | ||
|
55950G
|
55950G
55950-KK010
Nozzle Assy, Defroster
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
55950-KK010 |
— | ||
|
55990B
|
55990B
55990-KK010
Nozzle Assy, Defroster, Lower
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
55990-KK010 |
— | ||
|
87211
|
87211
87211-0K660
Duct, Air, No.1
[11.2015 -] GUN143..IDNP..PHL;GUN142,TGN14#..LHD..IDNP..(20E,20G,24,24G,27,27G,27SR,27SRV,N) |
87211-0K660 |
— | ||
|
87211A
|
87211A
87211-0K570 Duct, Air, No.1[11.2015 -] GUN143..IDNP..PHL;GUN142,TGN14#..LHD..IDNP..(20E,20G,24,24G,27,27G,27SR,27SRV,N) |
87211-0K570 |
US $31.53 |
||
|
87211B
|
87211B
87211-0K530
Duct, Air, No.3
[11.2015 -] GUN143..IDNP..PHL;GUN142,TGN14#..LHD..(IDNP,VNP)..(20E,20G,20V,24,24G,27,27G,27SR, 27SRV,N) |
87211-0K530 |
— | ||
|
87212B
|
87212B
90467-05045-22 Clip(For Front Fender Seal)[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) BLACK |
90467-05045-22 |
US $1.61 |
||
|
90119T0404
|
90119T0404
90119-T0404
New Genuine Part
|
90119-T0404 |
— | ||
|
90167T0007
|
90167T0007
90167-T0007 Screw,pan Tapping |
90167-T0007 |
from US $0.21 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.94 |
