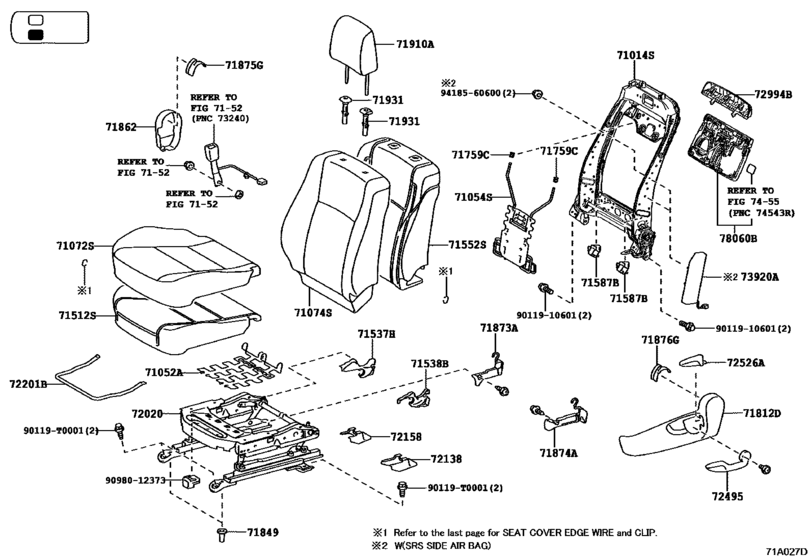

Seat & Seat Track ([11.2015 - ] DRIVER, W(SEAT BACK TABLE) (1511- )LHD..20G,24,24G,27,27G,27SR,27SRV,28G ,28V) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- GUN143
- grade
- 28G
- ENGINE
- 1GDFTV
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- PHL
- Model
- INNOVA
- From
- 08.2016
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71014S
|
71014S
71014-0K150
Frame Sub-Assy, Front Seat Back, Lh
[11.2015 -] GUN143..IDNP..28G;GUN142,TGN14#..LHD..IDNP..(20G,24G,27G,27SR,27SRV);GUN14#,TGN140 ..IDNP..(20Q,20V,24,24Q,24V,28V)..(IDN,PHL,SA); GUN142,TGN14#..6FC..(20,24,27)..(GCC,GEN) SEAT COVER MATERIAL-FULL HI FOR MPV; TGN140..GEN SEAT COVER MATERIAL-F |
71014-0K150 |
— | ||
|
71052A
|
71052A
71051-0K050
Spring Sub-Assy, Front Seat Cushion, Rh
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
71051-0K050 |
— | ||
|
71054S
|
71054S
71053-0K010
Spring Sub-Assy, Front Seat Back, Rh
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
71053-0K010 |
— | ||
|
71072S
|
71072S
71072-0KC60-C2
Cover, Front Seat Cushion, Lh(For Separate Type)
[11.2015 -] GUN143,TGN14#..IDNP..(20G,27SR,27SRV,28G)..(LA,PHL) SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),BLACK,TRIM2# |
71072-0KC60-C2 |
— | ||
|
71072S
|
71072S
71072-0KC60-E0
Cover, Front Seat Cushion, Lh(For Separate Type)
[11.2015 -] GUN143,TGN14#..IDNP..(20G,27SR,27SRV,28G)..(LA,PHL) SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),HAZEL BROWN,TRIM4# |
71072-0KC60-E0 |
— | ||
|
71072S
|
71072S
71072-0KF80-C2
Cover, Front Seat Cushion, Lh(For Separate Type)
[11.2015 -] GUN143..IDNP..28G..PHL;GUN142,TGN14#..LHD..IDNP..(20G,24G,27G,27SR,27SRV) BLACK,TRIM2#; GUN142,TGN141..6FC..(24,27)..GCC SEAT COVER MATERIAL-FULL HI FOR MPV,BLACK,TRIM2# |
71072-0KF80-C2 |
— | ||
|
71072S
|
71072S
71072-0KF80-E0
Cover, Front Seat Cushion, Lh(For Separate Type)
[11.2015 -] GUN143..IDNP..28G..PHL;GUN142,TGN14#..LHD..IDNP..(20G,24G,27G,27SR,27SRV) HAZEL BROWN,TRIM4#; GUN142,TGN141..6FC..(24,27)..GCC SEAT COVER MATERIAL-FULL HI FOR MPV,HAZEL BROWN,TRIM4# |
71072-0KF80-E0 |
— | ||
|
71074S
|
71074S
71074-0K160-C2
Cover, Front Seat Back, Lh(For Separate Type)
[11.2015 -] GUN142..5F..24Q;GUN14#,TGN140..IDNP..(20Q,20V,24V,28G)..(IDN,PHL);GUN142,TGN14#..L HD..IDNP..(20G,24G,27G,27SR,27SRV) BLACK,TRIM2#; GUN142,TGN14#..6FC..(20,24,27)..(GCC,GEN) SEAT COVER MATERIAL-FULL HI FOR MPV,BLACK,TRIM2# |
71074-0K160-C2 |
— | ||
|
71074S
|
71074S
71074-0K160-E0
Cover, Front Seat Back, Lh(For Separate Type)
[11.2015 -] GUN142..5F..24Q;GUN14#,TGN140..IDNP..(20Q,20V,24V,28G)..(IDN,PHL);GUN142,TGN14#..L HD..IDNP..(20G,24G,27G,27SR,27SRV) HAZEL BROWN,TRIM4#; GUN142,TGN14#..6FC..(20,24,27)..(GCC,GEN) SEAT COVER MATERIAL-FULL HI FOR MPV,HAZEL BROWN,TRIM4# |
71074-0K160-E0 |
— | ||
|
71074S
|
71074S
71074-0K170-C2
Cover, Front Seat Back, Lh(For Separate Type)
[11.2015 -] GUN14#..RHD..IDNP..6FC..(24,24Q,28G) BLACK,TRIM2#; TGN140..GEN SEAT COVER MATERIAL-FULL HI FOR MPV&SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTA IN),BLACK,TRIM2#; GUN142..5F..24Q;TGN140..IDNP..20G..PHL;GUN14#,TGN14#..IDNP..(20Q,20V,24V,27SR,2 |
71074-0K170-C2 |
— | ||
|
71074S
|
71074S
71074-0K170-E0
Cover, Front Seat Back, Lh(For Separate Type)
[11.2015 -] GUN143..IDNP..28V..PHL;GUN14#..RHD..IDNP..6FC..(24,24Q,28G) HAZEL BROWN,TRIM4#; TGN140..GEN SEAT COVER MATERIAL-FULL HI FOR MPV&SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTA IN),HAZEL BROWN,TRIM4#; GUN142..5F..24Q;TGN140..IDNP..20G..PHL;GUN14 |
71074-0K170-E0 |
— | ||
|
71512S
|
71512S
71512-0K290
Pad, Front Seat Cushion, Lh (For Separate Type)
[11.2015 -] GUN143..IDNP..(28G,28V)..PHL;GUN142,TGN14#..LHD..IDNP..(20G,24G,27G,27SR,27SRV); GUN142,TGN141..6FC..(24,27)..GCC SEAT COVER MATERIAL-FULL HI FOR MPV |
71512-0K290 |
— | ||
|
71537H
|
71537H
71537-0K040-C0
Protector, Front Seat Cushion Edge, Rh(For Rh Seat)
[11.2015 -] GUN143..IDNP..(28G,28V)..PHL;GUN142,TGN14#..LHD..IDNP..(20G,24,24G,27,27G,27SR,27S RV) BLACK,TRIM2#,4# |
71537-0K040-C0 |
— | ||
|
71538B
|
71538B
71538-0K020-C0
Protector, Front Seat Cushion Edge, Lh(For Rh Seat)
[11.2015 -] GUN143..IDNP..(28G,28V)..PHL;GUN142,TGN14#..LHD..IDNP..(20G,24,24G,27,27G,27SR,27S RV) BLACK,TRIM2#,4# |
71538-0K020-C0 |
— | ||
|
71552S
|
71552S
71552-0K030
Pad, Front Seat Back, Lh(For Separate Type)
[11.2015 -] GUN142..5F..24Q;GUN14#,TGN140..IDNP..(20Q,20V,24V,28G)..(IDN,PHL);GUN142,TGN14#..L HD..IDNP..(20G,24G,27G,27SR,27SRV); GUN142,TGN14#..6FC..(20,24,27)..(GCC,GEN) SEAT COVER MATERIAL-FULL HI FOR MPV |
71552-0K030 |
— | ||
|
71552S
|
71552S
71552-0K060
Pad, Front Seat Back, Lh(For Separate Type)
[11.2015 -] GUN143..IDNP..28V..PHL;GUN14#..RHD..IDNP..6FC..(24,24Q,28G); TGN140..GEN SEAT COVER MATERIAL-FULL HI FOR MPV&SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTA IN); GUN142..5F..24Q;TGN140..IDNP..20G..PHL;GUN14#,TGN14#..IDNP..(20Q,20V,24V,27SR,27SR |
71552-0K060 |
— | ||
|
71587B
|
71587B
71587-0K010
Protector, Front Seat Back Edge
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
71587-0K010 |
— | ||
|
71759C
|
71759C
71759-0K010
Hook, Front Seat Back, No.1
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
71759-0K010 |
— | ||
|
71812D
|
71812D
71812-0K070-C0
Shield, Front Seat Cushion, Lh
[11.2015 -] GUN143,TGN14#..IDNP..(20G,27,27SR,27SRV,28G)..(LA,PHL) SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),BLACK,TRIM2#,4# |
71812-0K070-C0 |
— | ||
|
71812D
|
71812D
71812-0K350-C0
Shield, Front Seat Cushion, Lh
[11.2015 -] GUN143..IDNP..28G..PHL;GUN142,TGN14#..LHD..IDNP..(20G,24,24G,27,27G,27SR,27SRV) BLACK,TRIM2#,4# |
71812-0K350-C0 |
— | ||
|
71849
|
71849
71848-0K010 Cap, Seat Adjuster Cover, Rh[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
71848-0K010 |
US $0.43 |
||
|
71862
|
71862
71862-0K080-C0
Shield, Front Seat Cushion, Inner Lh
[11.2015 -] GUN143..IDNP..(28G,28V)..PHL;GUN142,TGN14#..LHD..IDNP..(20G,24,24G,27,27G,27SR,27S RV) BLACK,TRIM2#,4# |
71862-0K080-C0 |
— | ||
|
71873A
|
71873A
71873-0D370
Shield, Front Seat Cushion, Lower Rh, No.1
[11.2015 -] GUN143..IDNP..(28E,28G,28V)..PHL;GUN142,TGN14#..LHD..IDNP..(20E,20G,24,24G,27,27G, 27SR,27SRV) |
71873-0D370 |
— | ||
|
71874A
|
71874A
71874-0D390
Shield, Front Seat Cushion, Lower Lh
[11.2015 -] GUN143..IDNP..(28E,28G,28V)..PHL;GUN142,TGN14#..LHD..IDNP..(20E,20G,24,24G,27,27G, 27SR,27SRV) |
71874-0D390 |
— | ||
|
71875G
|
71875G
71875-0K230-C0
Cover, Reclining Adjuster Inside, Rh
[11.2015 -] TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..IDNP..(20G,28G,28V). .(PHL,TH) BLACK,TRIM2#,4#; GUN142,TGN140..20Q,24Q SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; TGN140..20Q;GUN142..5F..24Q SEAT COVER MATERIAL-LEATHER&SRS AIRBAG-W |
71875-0K230-C0 |
— | ||
|
71876G
|
71876G
71876-0K230-C0
Cover, Reclining Adjuster Inside, Lh
[11.2015 -] TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..IDNP..(20G,28G,28V). .(PHL,TH) BLACK,TRIM2#,4#; GUN142,TGN140..20Q,24Q SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; TGN140..20Q;GUN142..5F..24Q SEAT COVER MATERIAL-LEATHER&SRS AIRBAG-W |
71876-0K230-C0 |
— | ||
|
71910A
|
71910A
71910-0K750-C1
Headrest Assy, Front Seat
[11.2015 -] GUN143..IDNP..28G;GUN142,TGN140..(20Q,20V,24,24Q,24V)..(IDN,SA);GUN142,TGN14#..LHD ..IDNP..(20G,24G,27G,27SR,27SRV) BLACK,TRIM2#; GUN142,TGN14#..6FC..(20,24,27)..(GCC,GEN) SEAT COVER MATERIAL-FULL HI FOR MPV,BLACK,TRIM2#; TGN140..GEN SEAT COVE |
71910-0K750-C1 |
— | ||
|
71910A
|
71910A
71910-0K750-E1
Headrest Assy, Front Seat
[11.2015 -] GUN143..IDNP..28G;GUN142,TGN14#..LHD..IDNP..(20G,24G,27G,27SR,27SRV);GUN14#,TGN140 ..IDNP..(20Q,20V,24,24Q,24V,28V)..(IDN,PHL,SA) HAZEL BROWN,TRIM4#; GUN142,TGN14#..6FC..(20,24,27)..(GCC,GEN) SEAT COVER MATERIAL-FULL HI FOR MPV,HAZEL BROWN,TRI |
71910-0K750-E1 |
— | ||
|
71931
|
71931
71930-0K010-C0
Support, Front Seat Headrest
[11.2015 -] TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..IDNP..(20G,28G,28V). .(PHL,TH) W(LOCK),BLACK,TRIM2#,4# |
71930-0K010-C0 |
— | ||
|
71931
|
71931
71931-0K010-C0
Support, Front Seat Headrest
[11.2015 -] TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..IDNP..(20G,28G,28V). .(PHL,TH) W/O(LOCK),BLACK,TRIM2#,4# |
71931-0K010-C0 |
— | ||
|
72020
|
72020
72020-0K020
Adjuster Assy, Front Seat, Lh
[11.2015 -] GUN143..IDNP..(28E,28G,28V)..PHL;GUN142,TGN14#..LHD..IDNP..(20E,20G,24,24G,27,27G, 27SR,27SRV) |
72020-0K020 |
— | ||
|
72138
|
72138
72137-0K070-C0
Cover, Seat Track, Outer Rh
[11.2015 -] TGN140..RHD..IDNP;GUN143,TGN140..(IDNP,VNP)..(20G,28G,28V)..(PHL,TH,VN);GUN142,TGN 14#..(20E,24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA,VN) BLACK,TRIM2#,4# |
72137-0K070-C0 |
— | ||
|
72158
|
72158
72158-0K050-C0
Cover, Seat Track Bracket, Inner Lh
[11.2015 -] TGN140..RHD..IDNP;GUN143,TGN140..(IDNP,VNP)..(20G,28G,28V)..(PHL,TH,VN);GUN142,TGN 14#..(20E,24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA,VN) BLACK,TRIM2#,4# |
72158-0K050-C0 |
— | ||
|
72201B
|
72201B
72211-0D210
Handle Sub-Assy, Seat Track Rh
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
72211-0D210 |
— | ||
|
72495
|
72495
72495-0D080-C0
Handle, Vertical Adjusting, Lh
[11.2015 -] GUN143..IDNP..(28G,28V)..PHL;GUN142,TGN14#..LHD..IDNP..(20G,24,24G,27,27G,27SR,27S RV) BLACK,TRIM2#,4# |
72495-0D080-C0 |
— | ||
|
72526A
|
72526A
72526-0D310-C0
Handle, Reclining Adjuster Release, Lh
[11.2015 -] GUN143..IDNP..(28G,28V)..PHL;GUN142,TGN14#..LHD..IDNP..(20G,24,24G,27,27G,27SR,27S RV) BLACK,TRIM2#,4# |
72526-0D310-C0 |
— | ||
|
72994B
|
72994B
72993-0K010-C0
Cover, Front Seat Back, Rh
[11.2015 -] GUN142,TGN141..LHD..(24G,27G,27SR,27SRV);GUN14#,TGN140..(20G,24,28G)..(PHL,SA,TH,V N) BLACK,TRIM2#,4#; GUN142,TGN141..6FC..(24,27)..GCC SEAT COVER MATERIAL-FULL HI FOR MPV,BLACK,TRIM2#,4#; TGN140..GEN SEAT COVER MATERIAL-FULL HI FOR MPV&SRS AI |
72993-0K010-C0 |
— | ||
|
73920A
|
73920A
73920-0K050 Air Bag Assy, Front Seat, Lh[11.2015 -] TGN140..20G..MA;GUN14#..RHD..IDNP..6FC..(24Q,28G);GUN14#,TGN14#..(20V,24,24Z,27Z,2 8V,28Z)..(IND,PHL,SA,TH,VN); TGN140..20Q;GUN142..5F..24Q SEAT COVER MATERIAL-LEATHER&SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTAIN); TGN140..GEN SEAT COVER M |
73920-0K050 |
US $262.08 |
||
|
78060B
|
78060B
78060-0K010-C0
Table Assy, Front Seat Back, Rh
[11.2015 -] GUN143..(28G,28V)..PHL;GUN142,TGN14#..LHD..(20G,20V,24G,27G,27SR,27SRV) BLACK,TRIM2#,4#; GUN142,TGN141..6FC..(24,27)..GCC SEAT COVER MATERIAL-FULL HI FOR MPV,BLACK,TRIM2#,4# |
78060-0K010-C0 |
— | ||
|
90119T0001
|
90119T0001
90119-T0001
BOLTWWSH
|
90119-T0001 |
— | ||
|
9011910601
|
9011910601
90119-10601 BOLT WWASHER |
90119-10601 |
US $1.61 |
||
|
9098012373
|
9098012373
90980-12373 Connector, Wiring Harness |
90980-12373 |
US $4.66 |
||
|
9418560600
|
9418560600
94185-60600 Nut, Wire Adjusting, No.1 |
94185-60600 |
from US $0.72 |
