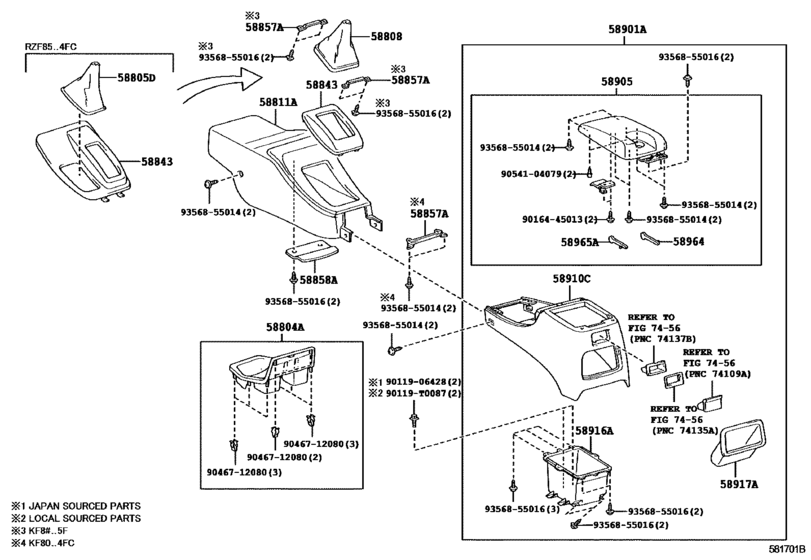

Console Box & Bracket ([10.2002 - ] (0210- )DLX,GL..TAIW ; (0302- )GL..VN) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1999 - 2007
- Sales region
- General
- Frame
- KF80
- grade
- DLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- TAIW
- DECK
- LUB
- CAB
- SHRV
- Model
- ZACE
- From
- 02.1999
- To
- 07.2007
- Gear Shift Type
- 5F
- Vehicle Model
- ZACE
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58804A
|
58804A
58804-0B020-B0
Panel Sub-Assy, Console, Upper
[10.2002 - 07.2007] KF82..GL..VN;KF80,RZF84,85..(DLX,GL)..TAIW BLUISH GRAY,TRIM1# |
58804-0B020-B0 |
— | ||
|
58808
|
58808
58808-0B040-B0
Cover Sub-Assy, Shifting Hole
[10.2002 - 07.2007] KF82..GL..VN;KF80..5F..DLX..TAIW BLUISH GRAY,TRIM1# |
58808-0B040-B0 |
— | ||
|
58811A
|
58811A
58811-0B021-B0
Box, Console, Front
[10.2002 - 07.2007] KF82..GL..VN;KF80..(DLX,GL)..TAIW BLUISH GRAY,TRIM1# |
58811-0B021-B0 |
— | ||
|
58857A
|
58857A
58857-0B040
Bracket, Console Support, Upper No.1
[10.2002 -] KF82..GL..VN;KF80..5F..DLX..TAIW |
58857-0B040 |
— | ||
|
58901A
|
58901A
58901-0B040-B0
Box Sub-Assy, Console, Rear
[02.1999 - 04.2001] KF80..5F..(DLX,GL)..(TAIW,VN) BLUISH GRAY,TRIM1# |
58901-0B040-B0 |
— | ||
|
58901A
|
58901A
58901-0B040-B1
Box Sub-Assy, Console, Rear
[04.2001 - 10.2002] KF80..5F..DLX..TAIW BLUISH GRAY,TRIM1# |
58901-0B040-B1 |
— | ||
|
58901A
|
58901A
58901-0B070-B0
Box Sub-Assy, Console, Rear
[10.2002 - 07.2007] KF82..GL..VN;KF80..DLX..TAIW BLUISH GRAY,TRIM1# |
58901-0B070-B0 |
— | ||
|
58905
|
58905
58905-0B060-B0
Door Sub-Assy, Console Compartment
[10.2002 - 07.2007] KF82..GL..VN;KF80..DLX..TAIW BLUISH GRAY,TRIM1# |
58905-0B060-B0 |
— | ||
|
58910C
|
58910C
58911-0B060-B0
Box Assy, Console, Rear
[10.2002 - 07.2007] KF82..GL..VN;KF80,RZF84,85..(DLX,GL)..TAIW BLUISH GRAY,TRIM1# |
58911-0B060-B0 |
— | ||
|
58916A
|
58916A
58916-0B040-B0
Insert, Console Box, Rear
[10.2002 - 07.2007] KF82..GL..VN;KF80,RZF84,85..(DLX,GL)..TAIW BLUISH GRAY,TRIM1# |
58916-0B040-B0 |
— | ||
|
58917A
|
58917A
58917-0B020-B0
Cover, Console Box, Rear
[10.2002 - 07.2007] KF82..GL..VN;KF80,RZF84,85..(DLX,GL)..TAIW BLUISH GRAY,TRIM1# |
58917-0B020-B0 |
— | ||
|
58964
|
58964
58964-16010 Stopper, Console Compartment Door, No.1[10.2002 -] KF82..GL..VN;KF80..SHRV..(DLX,GL) |
58964-16010 |
from US $4.21 |
||
|
58965A
|
58965A
58965-16010 Stopper, Console Compartment Door, No.1[10.2002 -] KF82..GL..VN;KF80..SHRV..(DLX,GL) |
58965-16010 |
from US $4.66 |
||
|
90119T0087
|
90119T0087
90119-T0087
New Genuine Part
|
90119-T0087 |
— | ||
|
9011906428
|
9011906428
90119-06428 New Genuine Part |
90119-06428 |
US $1.43 |
||
|
9016445013
|
9016445013
90164-45013 SCREW BINDING |
90164-45013 |
US $2.15 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.76 |
||
|
9054104079
|
9054104079
90541-04079 Cushion(For Glove Compartment Door) |
90541-04079 |
from US $1.79 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
