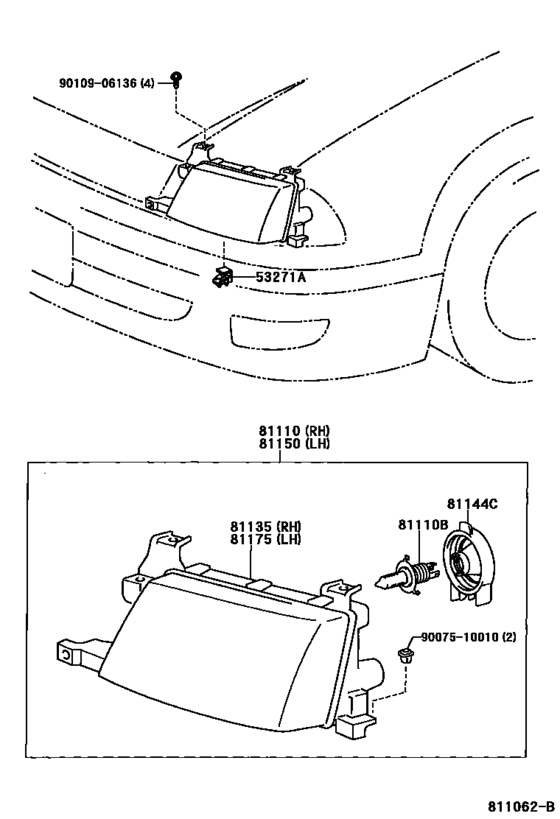

Headlamp ([02.1999 - 10.2002] SCULAPTURE HEADLAMP (9902-0210)KF60,80,LF81,85,RZF84,85,YF80..SA,TAI W,VN..LHD ; (0210-0306)KF80,LF81,85 ,YF80..SHRW..5F.. LHD) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1999 - 2007
- Sales region
- General
- Frame
- KF80
- grade
- DLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- TAIW
- DECK
- LUB
- CAB
- SHRV
- Model
- ZACE
- From
- 02.1999
- To
- 07.2007
- Gear Shift Type
- 5F
- Vehicle Model
- ZACE
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53271A
|
53271A
53271-0B010 Bracket, Headlamp Mounting[04.2000 - 02.2003] KF60,80,RZF84,85..TAIW,VN SCULAPTURE HEADLAMP |
53271-0B010 |
US $0.64 |
||
|
53271A
|
53271A
53271-12060 Bracket, Headlamp Mounting[02.1999 - 04.2000] KF80..TAIW,VN;KF60,72,82,LF72,82,RZF8#..LUB,T2 SCULAPTURE HEADLAMP |
53271-12060 |
from US $7.23 |
||
|
81110
|
81110
81110-0B070
Headlamp Assy, Rh
[02.1999 - 10.2002] KF60,80,LF81,85,RZF84,85,YF80..(SA,TAIW,VN)..LHD SCULAPTURE HEADLAMP |
81110-0B070 |
— | ||
|
81110
|
81110
81110-0B210
Headlamp Assy, Rh
[10.2002 -] KF60,80..(SCB,SHRV)..LHD |
81110-0B210 |
— | ||
|
81110B
|
81110B
90981-13055
Bulb(For Headlamp, No.1)
[08.2002 - 10.2002] KF80,LF80,RZF81..(GL,GLX)..(MA,PHL) 12V 60/55W,HALOGEN,NO.1; KF60,80,LF81,85,RZF80,84,85,YF80..SA,TAIW,VN 12V 60/55W,HALOGEN |
90981-13055 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [08.2002 - 10.2002] KF80,LF80,RZF81..(GL,GLX)..(MA,PHL) 12V 60/55W,HALOGEN,NO.1; KF60,80,LF81,85,RZF80,84,85,YF80..SA,TAIW,VN 12V 60/55W,HALOGEN |
90981-13058 |
from US $33.60 |
||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [08.2002 - 07.2007] LF80..GEN;KF60,7#,8#,LF81,82,85,RZF80,81,84,85..(LUB,T2)..(GEN,MA,SA,TAIW) 12V 60/55W,HALOGEN |
90981-13058 |
from US $33.60 |
||
|
81110B
|
81110B
90981-22004
Bulb(For Headlamp, No.1)
[02.1999 - 08.2002] KF60,80,LF81,85,RZF84,85,YF80..(SA,TAIW,VN)..LHD 12V 60/55W,*HAL *WH,SCULAPTURE HEADLAMP |
90981-22004 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [02.1999 - 08.2002] KF60,80,LF81,85,RZF84,85,YF80..(SA,TAIW,VN)..LHD 12V 60/55W,*HAL *WH,SCULAPTURE HEADLAMP |
90981-13058 |
from US $33.60 |
||
|
81110B
|
81110B
99132-12050 Bulb (12V 5W)[08.2002 - 07.2007] LF80..GEN;KF60,7#,8#,LF81,82,85,RZF80,81,84,85..(LUB,T2)..(GEN,MA,SA,TAIW) 12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81110B
|
81110B
90080-81053 Bulb(For Clearance Lamp)[08.2002 - 07.2007] LF80..GEN;KF60,7#,8#,LF81,82,85,RZF80,81,84,85..(LUB,T2)..(GEN,MA,SA,TAIW) 12V 5W |
90080-81053 |
US $1.01 |
||
|
81135
|
81135
81130-0B070
Unit Assy, Headlamp, Rh
[09.1999 - 10.2002] KF60,80,LF81,RZF84,85,YF80..(SA,TAIW,VN)..LHD SCULAPTURE HEADLAMP |
81130-0B070 |
— | ||
|
81144C
|
81144C
90075-65001 Cover, Headlamp Socket[02.1999 - 03.2001] KF80..TAIW,VN;KF60,72,82,LF72,81,82,85,RZF71,8#,YF80..(LUB,T2)..(GEN,SA,TAIW) |
90075-65001 |
US $13.54 |
||
|
81150
|
81150
81150-0B070
Headlamp Assy, Lh
[02.1999 - 10.2002] KF60,80,LF81,85,RZF84,85,YF80..(SA,TAIW,VN)..LHD SCULAPTURE HEADLAMP |
81150-0B070 |
— | ||
|
81150
|
81150
81150-0B210
Headlamp Assy, Lh
[10.2002 -] KF60,80..(SCB,SHRV)..LHD |
81150-0B210 |
— | ||
|
81175
|
81175
81170-0B070
Unit Assy, Headlamp, Lh
[09.1999 - 10.2002] KF60,80,LF81,85,RZF84,85,YF80..(SA,TAIW,VN)..LHD SCULAPTURE HEADLAMP |
81170-0B070 |
— | ||
|
9007510010
|
9007510010
90075-10010 New Genuine Part |
90075-10010 |
US $1.97 |
||
|
9010906136
|
9010906136
90109-06136 New Genuine Part |
90109-06136 |
US $2.15 |
||
