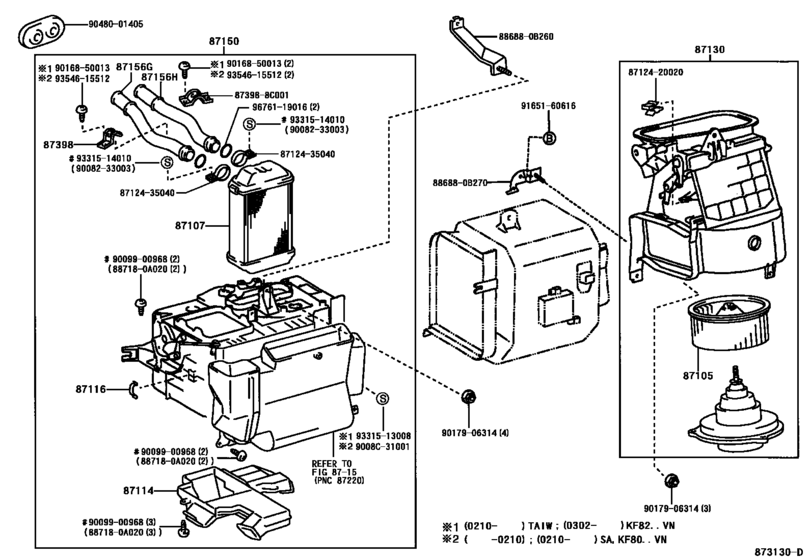

Heating & Air Conditioning - Heater Unit & Blower ([02.1999 - ] (9902- )TAIW,VN ; (0104- )LF85..LHD ; (030 6- )LF85,RZF85..SA) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1999 - 2007
- Sales region
- General
- Frame
- KF80
- grade
- DLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- TAIW
- DECK
- LUB
- CAB
- SHRV
- Model
- ZACE
- From
- 02.1999
- To
- 07.2007
- Gear Shift Type
- 5F
- Vehicle Model
- ZACE
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87105
|
87105
87105-14020 Fan Sub-Assy, Ventilation Blower[10.1998 - 06.2003] KF60,80,LF61,80,81,85,RZF81,84,85,YF60,80..LHD |
87105-14020 |
from US $15.38 |
||
|
87107
|
87107
87107-0B010
Unit Sub-Assy, Heater Radiator
[02.1999 - 06.2003] KF60,80,LF61,81,85,RZF84,85,YF60,80..(SA,TAIW,VN)..LHD |
87107-0B010 |
— | ||
|
87114
|
87114
87114-0B010
Cover, Heater
[02.1999 - 06.2003] KF60,80,LF61,81,85,RZF84,85,YF60,80..(SA,TAIW,VN)..LHD |
87114-0B010 |
— | ||
|
87116
|
87116
87116-14010
Spring, Heater Case Fastening
[02.1999 - 03.1999] KF60,80..TAIW |
87116-14010 |
— | ||
|
87116
|
87116
87116-8C000
Spring, Heater Case Fastening
[03.1999 - 10.2002] KF60,80,LF61,81,85,RZF84,85,YF60,80..(SA,TAIW,VN)..LHD |
87116-8C000 |
— | ||
|
87130
|
87130
87130-0B020
Blower Assy, Heater, Front
[10.1998 - 06.2003] KF60,80,LF61,80,81,85,RZF81,84,85,YF60,80..LHD |
87130-0B020 |
— | ||
|
87150
|
87150
87150-0B010
Radiator Assy, Heater
[02.1999 - 06.2003] KF60,80,LF61,81,85,RZF84,85,YF60,80..(SA,TAIW,VN)..LHD |
87150-0B010 |
— | ||
|
87156G
|
87156G
87108-8C009
Pipe, Heater Water, No.1
[03.1999 - 10.2002] KF60,80,LF61,81,85,RZF84,85,YF60,80..(SA,TAIW,VN)..LHD |
87108-8C009 |
— | ||
|
87156H
|
87156H
87108-8C010
Pipe, Heater Water, No.2
[03.1999 - 10.2002] KF60,80,LF61,81,85,RZF84,85,YF60,80..(SA,TAIW,VN)..LHD |
87108-8C010 |
— | ||
|
87398
|
87398
87398-89104
Band Assy (For Combustion Heater)
[02.1999 - 06.2003] KF60,80,LF61,81,85,RZF84,85,YF60,80..(SA,TAIW,VN)..LHD |
87398-89104 |
— | ||
|
9008C31001
|
9008C31001
9008C-31001
New Genuine Part
|
9008C-31001 |
— | ||
|
873988C001
|
873988C001
87398-8C001
Band Assy (for Combustion Heater)
|
87398-8C001 |
— | ||
|
886880B260
|
886880B260
88688-0B260
Bracket, Cooler Diaphragm
|
88688-0B260 |
— | ||
|
886880B270
|
886880B270
88688-0B270
Bracket, Cooler Diaphragm
|
88688-0B270 |
— | ||
|
887180A020
|
887180A020
88718-0A020
Screw(For Air Conditioner Unit)
|
88718-0A020 |
— | ||
|
8712420020
|
8712420020
87124-20020 Clamp, Heater Control |
87124-20020 |
US $1.75 |
||
|
8712435040
|
8712435040
87124-35040 Clamp, Heater, No.3 |
87124-35040 |
from US $1.25 |
||
|
9008233003
|
9008233003
90082-33003
New Genuine Part
|
90082-33003 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9016850013
|
9016850013
90168-50013 SCREW |
90168-50013 |
US $3.05 |
||
|
9017906314
|
9017906314
90179-06314 NUT |
90179-06314 |
from US $0.80 |
||
|
9048001405
|
9048001405
90480-01405 Grommet, Heater Hose |
90480-01405 |
US $3.84 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.94 |
||
|
9331513008
|
9331513008
93315-13008 New Genuine Part |
93315-13008 |
US $1.31 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.76 |
||
|
9354615512
|
9354615512
93546-15512
New Genuine Part
|
93546-15512 |
— | ||
|
9676119016
|
9676119016
96761-19016 RING |
96761-19016 |
from US $0.74 |
