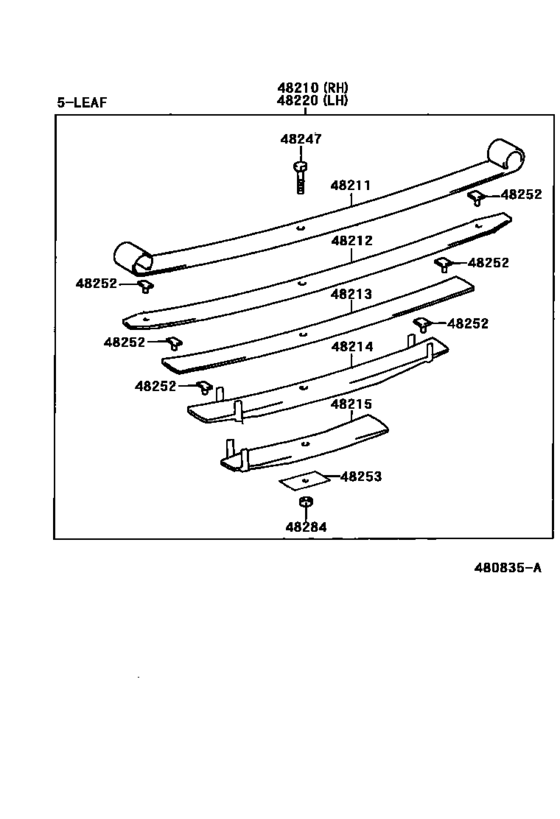

Rear Spring & Shock Absorber ([02.1999 - ] (9902- )KF8#..DLX,GL..TAIW,VN) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1999 - 2007
- Sales region
- General
- Frame
- KF80
- grade
- DLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- TAIW
- DECK
- LUB
- CAB
- SHRV
- Model
- ZACE
- From
- 02.1999
- To
- 07.2007
- Gear Shift Type
- 5F
- Vehicle Model
- ZACE
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-0B090
Spring Assy, Rear Rh
[04.2000 - 10.2002] KF80..(DLX,GL)..(TAIW,VN) 5-LEAF |
48210-0B090 |
— | ||
|
48210
|
48210
48210-0B100
Spring Assy, Rear Rh
[02.1999 - 04.2000] KF80..(DLX,STD)..TAIW 5-LEAF |
48210-0B100 |
— | ||
|
48211
|
48211
48211-0B090
Leaf, Rear Spring, No.1
[04.2000 - 10.2002] KF80..(DLX,GL)..(TAIW,VN) |
48211-0B090 |
— | ||
|
48211
|
48211
48211-0B100
Leaf, Rear Spring, No.1
[02.1999 - 04.2000] KF80..(DLX,STD)..TAIW |
48211-0B100 |
— | ||
|
48212
|
48212
48212-0B090
Leaf, Rear Spring, No.2
[04.2000 - 10.2002] KF80..(DLX,GL)..(TAIW,VN) |
48212-0B090 |
— | ||
|
48212
|
48212
48212-0B100
Leaf, Rear Spring, No.2
[02.1999 - 04.2000] KF80..(DLX,STD)..TAIW |
48212-0B100 |
— | ||
|
48213
|
48213
48213-0B090
Leaf, Rear Spring, No.3
[04.2000 - 10.2002] KF80..(DLX,GL)..(TAIW,VN) |
48213-0B090 |
— | ||
|
48213
|
48213
48213-0B100
Leaf, Rear Spring, No.3
[02.1999 - 04.2000] KF80..(DLX,STD)..TAIW |
48213-0B100 |
— | ||
|
48214
|
48214
48201-0B090
Leaf, Rear Spring, No.4
[04.2000 - 10.2002] KF80..(DLX,GL)..(TAIW,VN) |
48201-0B090 |
— | ||
|
48214
|
48214
48201-0B100
Leaf, Rear Spring, No.4
[02.1999 - 04.2000] KF80..(DLX,STD)..TAIW |
48201-0B100 |
— | ||
|
48215
|
48215
48202-0B090
Leaf, Rear Spring, No.5
[04.2000 - 10.2002] KF80..(DLX,GL)..(TAIW,VN) |
48202-0B090 |
— | ||
|
48215
|
48215
48202-0B100
Leaf, Rear Spring, No.5
[02.1999 - 04.2000] KF80..(DLX,STD)..TAIW |
48202-0B100 |
— | ||
|
48220
|
48220
48210-0B090
Spring Assy, Rear Rh
[04.2000 - 10.2002] KF80..(DLX,GL)..(TAIW,VN) 5-LEAF |
48210-0B090 |
— | ||
|
48220
|
48220
48210-0B100
Spring Assy, Rear Rh
[02.1999 - 04.2000] KF80..(DLX,STD)..TAIW 5-LEAF |
48210-0B100 |
— | ||
|
48247
|
48247
48247-27340 Bolt, Front Spring, Center[02.1999 - 02.2003] KF80..TAIW,VN |
48247-27340 |
US $5.24 |
||
|
48252
|
48252
48252-26070 Silencer, Front Spring[02.1999 - 02.2003] KF80..TAIW,VN |
48252-26070 |
from US $2.13 |
||
|
48253
|
48253
48253-0B090
Spacer, Rear Spring, No.1
[04.2000 - 10.2002] KF80..(DLX,GL)..(TAIW,VN) |
48253-0B090 |
— | ||
|
48284
|
48284
48299-28010 Nut, Rear Spring Center Bolt[02.1999 - 02.2003] KF80..TAIW,VN |
48299-28010 |
US $3.35 |
