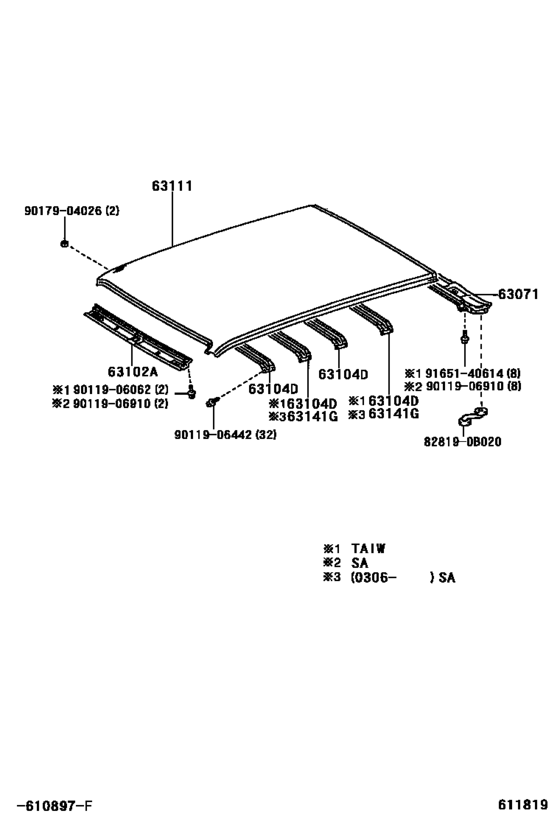

Roof Panel & Back Panel ([10.2002 - ] (0210- )KF80,LF61,81,85,RZF61,80,81,84,85,YF6 0,80..SA,TAIW) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1999 - 2007
- Sales region
- General
- Frame
- KF80
- grade
- DLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- TAIW
- DECK
- LUB
- CAB
- SHRV
- Model
- ZACE
- From
- 02.1999
- To
- 07.2007
- Gear Shift Type
- 5F
- Vehicle Model
- ZACE
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63071
|
63071
63071-0B020
Frame Sub-Assy, Back Door Opening, Upper
[02.1999 - 02.2003] KF80,RZF84,85..TAIW,VN |
63071-0B020 |
— | ||
|
63102A
|
63102A
63102-0B010
Panel Sub-Assy, Windshield Header
[12.1996 - 10.2002] KF60,7#,8#,LF60,7#,80,82,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN |
63102-0B010 |
— | ||
|
63102A
|
63102A
63102-0B040
Panel Sub-Assy, Windshield Header
[10.2002 -] KF82..VN;KF60,80..(SCB,SHRV)..LHD |
63102-0B040 |
— | ||
|
63104D
|
63104D
63104-0B020
Reinforcement Sub-Assy, Roof Panel, No.2
[02.1999 - 02.2003] KF80,RZF84,85..TAIW,VN |
63104-0B020 |
— | ||
|
63111
|
63111
63111-0B080
Panel, Roof
[10.2002 -] KF80..(DLX,STD)..TAIW;LF61,81,85,RZF61,81..SA..LHD |
63111-0B080 |
— | ||
|
63111
|
63111
63111-0B905
Panel, Roof
[02.1999 - 10.2002] KF80,RZF84,85..TAIW |
63111-0B905 |
— | ||
|
828190B020
|
828190B020
82819-0B020
Grommet, Wiring Harness
|
82819-0B020 |
— | ||
|
9011906062
|
9011906062
90119-06062 New Genuine Part |
90119-06062 |
US $1.60 |
||
|
9011906442
|
9011906442
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.92 |
||
|
9011906910
|
9011906910
90119-06910 New Genuine Part |
90119-06910 |
US $3.20 |
||
|
9017904026
|
9017904026
90179-04026 New Genuine Part |
90179-04026 |
US $0.58 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
