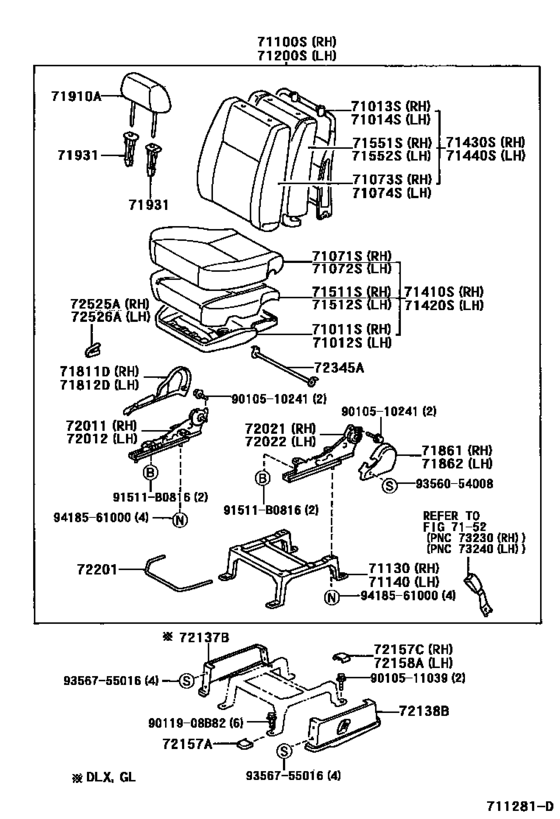

Seat & Seat Track ([02.1999 - 10.2002] W(RECLINING SEAT) (9902-0210)SA,TAIW,VN ; (0210- )SA,VN) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1999 - 2007
- Sales region
- General
- Frame
- KF80
- grade
- DLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- TAIW
- DECK
- LUB
- CAB
- SHRV
- Model
- ZACE
- From
- 02.1999
- To
- 07.2007
- Gear Shift Type
- 5F
- Vehicle Model
- ZACE
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71011S
|
71011S
71011-0B050
Frame Sub-Assy, Front Seat Cushion, Rh
[02.1999 - 02.2003] KF60,80,RZF84,85..TAIW,VN |
71011-0B050 |
— | ||
|
71012S
|
71012S
71011-0B050
Frame Sub-Assy, Front Seat Cushion, Rh
[02.1999 - 10.2002] KF60,80,RZF84,85..TAIW,VN |
71011-0B050 |
— | ||
|
71013S
|
71013S
71014-0B060
Frame Sub-Assy, Front Seat Back, Rh
[02.1999 - 10.2002] KF60,80,RZF84,85..TAIW,VN |
71014-0B060 |
— | ||
|
71014S
|
71014S
71014-0B060
Frame Sub-Assy, Front Seat Back, Rh
[02.1999 - 10.2002] KF60,80,RZF84,85..TAIW,VN |
71014-0B060 |
— | ||
|
71071S
|
71071S
71072-0B150-B0
Cover, Front Seat Cushion, Rh(For Separate Type)
[02.1999 - 10.2002] KF80..DLX..TAIW BLUISH GRAY,TRIM1# |
71072-0B150-B0 |
— | ||
|
71071S
|
71071S
71072-0B380-B0
Cover, Front Seat Cushion, Rh(For Separate Type)
[10.2002 - 07.2007] KF80..DLX..TAIW BLUEISH GRAY,TRIM1# |
71072-0B380-B0 |
— | ||
|
71072S
|
71072S
71072-0B150-B0
Cover, Front Seat Cushion, Rh(For Separate Type)
[02.1999 - 10.2002] KF80..DLX..TAIW BLUISH GRAY,TRIM1# |
71072-0B150-B0 |
— | ||
|
71072S
|
71072S
71072-0B380-B0
Cover, Front Seat Cushion, Rh(For Separate Type)
[10.2002 - 07.2007] KF80..DLX..TAIW BLUEISH GRAY,TRIM1# |
71072-0B380-B0 |
— | ||
|
71073S
|
71073S
71074-0B150-B0
Cover, Front Seat Back, Rh(For Separate Type)
[02.1999 - 10.2002] KF80..DLX..TAIW BLUISH GRAY,TRIM1# |
71074-0B150-B0 |
— | ||
|
71073S
|
71073S
71074-0B360-B0
Cover, Front Seat Back, Rh(For Separate Type)
[10.2002 - 07.2007] KF80..DLX..TAIW BLUISH GRAY,TRIM1# |
71074-0B360-B0 |
— | ||
|
71074S
|
71074S
71074-0B150-B0
Cover, Front Seat Back, Rh(For Separate Type)
[02.1999 - 10.2002] KF80..DLX..TAIW BLUISH GRAY,TRIM1# |
71074-0B150-B0 |
— | ||
|
71074S
|
71074S
71074-0B360-B0
Cover, Front Seat Back, Rh(For Separate Type)
[10.2002 - 07.2007] KF80..DLX..TAIW BLUISH GRAY,TRIM1# |
71074-0B360-B0 |
— | ||
|
71100S
|
71100S
71100-0B120-B0
Seat Assy, Front Rh
[02.1999 - 10.2002] KF80..DLX..TAIW BLUISH GRAY,TRIM1# |
71100-0B120-B0 |
— | ||
|
71100S
|
71100S
71100-0B530-B1
Seat Assy, Front Rh
[10.2002 - 07.2007] KF80..DLX..TAIW ***,BLUISH GRAY,TRIM1# |
71100-0B530-B1 |
— | ||
|
71130
|
71130
71130-0B011
Leg Assy, Front Seat, Rh
[10.2002 -] KF82..VN;KF60,80..(SCB,SHRV)..LHD |
71130-0B011 |
— | ||
|
71140
|
71140
71140-0B031
Leg Assy, Front Seat, Lh
[10.2002 -] KF82..VN;KF80,RZF84,85..TAIW |
71140-0B031 |
— | ||
|
71200S
|
71200S
71200-0B150-B0
Seat Assy, Front Lh
[02.1999 - 10.2002] KF80..DLX..TAIW BLUISH GRAY,TRIM1# |
71200-0B150-B0 |
— | ||
|
71200S
|
71200S
71200-0B570-B1
Seat Assy, Front Lh
[10.2002 - 07.2007] KF80..DLX..TAIW ***,BLUISH GRAY,TRIM1# |
71200-0B570-B1 |
— | ||
|
71410S
|
71410S
71420-0B150-B0
Cushion Assy, Front Seat, Rh(For Separate Type)
[02.1999 - 10.2002] KF80..DLX..TAIW BLUISH GRAY,TRIM1# |
71420-0B150-B0 |
— | ||
|
71410S
|
71410S
71420-0B390-B0
Cushion Assy, Front Seat, Rh(For Separate Type)
[10.2002 - 07.2007] KF80..DLX..TAIW BLUISH GRAY,TRIM1# |
71420-0B390-B0 |
— | ||
|
71420S
|
71420S
71420-0B150-B0
Cushion Assy, Front Seat, Rh(For Separate Type)
[02.1999 - 10.2002] KF80..DLX..TAIW BLUISH GRAY,TRIM1# |
71420-0B150-B0 |
— | ||
|
71420S
|
71420S
71420-0B390-B0
Cushion Assy, Front Seat, Rh(For Separate Type)
[10.2002 - 07.2007] KF80..DLX..TAIW BLUISH GRAY,TRIM1# |
71420-0B390-B0 |
— | ||
|
71430S
|
71430S
71440-0B150-B0
Back Assy, Front Seat, Rh(For Separate Type)
[02.1999 - 10.2002] KF80..DLX..TAIW BLUISH GRAY,TRIM1# |
71440-0B150-B0 |
— | ||
|
71440S
|
71440S
71440-0B150-B0
Back Assy, Front Seat, Rh(For Separate Type)
[02.1999 - 10.2002] KF80..DLX..TAIW BLUISH GRAY,TRIM1# |
71440-0B150-B0 |
— | ||
|
71511S
|
71511S
71502-0B040
Pad, Front Seat Cushion, Rh(For Separate Type)
[02.1999 - 10.2002] KF60,80,RZF84,85..TAIW |
71502-0B040 |
— | ||
|
71512S
|
71512S
71502-0B040
Pad, Front Seat Cushion, Rh(For Separate Type)
[02.1999 - 10.2002] KF60,80,RZF84,85..TAIW |
71502-0B040 |
— | ||
|
71551S
|
71551S
71506-0B050
Pad, Front Seat Back, Rh(For Separate Type)
[02.1999 - 10.2002] KF60,80,RZF84,85..TAIW |
71506-0B050 |
— | ||
|
71551S
|
71551S
71506-0B100
Pad, Front Seat Back, Rh(For Separate Type)
[10.2002 -] KF60,80..(DLX,STD)..TAIW |
71506-0B100 |
— | ||
|
71552S
|
71552S
71506-0B050
Pad, Front Seat Back, Rh(For Separate Type)
[02.1999 - 10.2002] KF60,80,RZF84,85..TAIW |
71506-0B050 |
— | ||
|
71552S
|
71552S
71506-0B100
Pad, Front Seat Back, Rh(For Separate Type)
[10.2002 -] KF60,80..(DLX,STD)..TAIW |
71506-0B100 |
— | ||
|
71811D
|
71811D
71811-02060-B2
Shield, Front Seat Cushion, Rh
[07.2000 - 02.2003] KF60,80,RZF84,85..TAIW,VN BLUISH GRAY,TRIM1# |
71811-02060-B2 |
— | ||
| replacement | |||||
|
71811D
|
71811D
71811-02060-B3
Shield, Front Seat Cushion, Rh
[07.2000 - 02.2003] KF60,80,RZF84,85..TAIW,VN BLUISH GRAY,TRIM1# |
71811-02060-B3 |
— | ||
|
71811D
|
71811D
71811-20300-B1 Shield, Front Seat Cushion, Rh[02.1999 - 07.2000] LF81,YF60,80..RHD;KF60,80,LF85,RZF8#..SA,TAIW,VN BLUISH GRAY,TRIM1# |
71811-20300-B1 |
US $42.52 |
||
| replacement | |||||
|
71811D
|
71811D
71811-20300-B0 Shield, Front Seat Cushion, Rh[02.1999 - 07.2000] LF81,YF60,80..RHD;KF60,80,LF85,RZF8#..SA,TAIW,VN BLUISH GRAY,TRIM1# |
71811-20300-B0 |
US $42.52 |
||
|
71812D
|
71812D
71812-02060-B2
Shield, Front Seat Cushion, Lh
[07.2000 - 02.2003] KF60,80,RZF84,85..TAIW,VN BLUISH GRAY,TRIM1# |
71812-02060-B2 |
— | ||
| replacement | |||||
|
71812D
|
71812D
71812-02060-B3
Shield, Front Seat Cushion, Lh
[07.2000 - 02.2003] KF60,80,RZF84,85..TAIW,VN BLUISH GRAY,TRIM1# |
71812-02060-B3 |
— | ||
|
71812D
|
71812D
71812-20270-B1 Shield, Front Seat Cushion, Lh[02.1999 - 07.2000] YF60..LHD;KF60,80,LF61,81,85,RZF8#,YF80..SA,TAIW,VN BLUISH GRAY,TRIM1# |
71812-20270-B1 |
US $42.52 |
||
| replacement | |||||
|
71812D
|
71812D
71812-20270-B0 Shield, Front Seat Cushion, Lh[02.1999 - 07.2000] YF60..LHD;KF60,80,LF61,81,85,RZF8#,YF80..SA,TAIW,VN BLUISH GRAY,TRIM1# |
71812-20270-B0 |
US $42.22 |
||
|
71861
|
71861
71861-16220-B1 Shield, Front Seat Cushion, Inner Rh[02.1999 - 06.2003] LF81,85,YF60,80..RHD;KF60,80,RZF80,84,85..SA,TAIW,VN BLUISH GRAY,TRIM1# |
71861-16220-B1 |
US $24.46 |
||
|
71862
|
71862
71862-16190-B1 Shield, Front Seat Cushion, Inner Lh[02.1999 - 06.2003] YF60..LHD;KF60,80,LF61,81,85,RZF80,84,85,YF80..SA,TAIW,VN BLUISH GRAY,TRIM1# |
71862-16190-B1 |
US $24.46 |
||
|
71910A
|
71910A
71910-0B130-B0
Headrest Assy, Front Seat
[02.1999 - 10.2002] KF80..DLX..TAIW BLUISH GRAY,TRIM1# |
71910-0B130-B0 |
— | ||
|
71910A
|
71910A
71910-0B420-B0
Headrest Assy, Front Seat
[10.2002 - 07.2007] KF80..DLX..TAIW BLUISH GRAY,TRIM1# |
71910-0B420-B0 |
— | ||
|
71931
|
71931
71930-20130-B1
Support, Front Seat Headrest
[02.1999 - 02.2003] KF60,80,RZF84,85..TAIW,VN W(LOCK),BLUISH GRAY,TRIM1# |
71930-20130-B1 |
— | ||
|
71931
|
71931
71931-12040-P4 Support, Front Seat HeadrestFRONT SEAT HEADREST [02.1999 - 02.2003] KF60,80,RZF84,85..TAIW,VN W/O(LOCK),BLUISH GRAY,TRIM1# |
71931-12040-P4 |
US $12.08 |
||
|
72011
|
72011
72011-0B020
Adjuster Sub-Assy, Front Seat, Outer Rh
[02.1999 - 10.2002] KF80,RZF84,85..TAIW,VN |
72011-0B020 |
— | ||
|
72012
|
72012
72012-0B020
Adjuster Sub-Assy, Front Seat, Outer Lh
[02.1999 - 10.2002] KF80,RZF84,85..TAIW,VN |
72012-0B020 |
— | ||
|
72021
|
72021
72021-0B020
Adjuster Sub-Assy, Front Seat, Inner Rh
[02.1999 - 10.2002] KF80,RZF84,85..TAIW,VN |
72021-0B020 |
— | ||
|
72022
|
72022
72022-0B020
Adjuster Sub-Assy, Front Seat, Inner Lh
[02.1999 - 10.2002] KF80,RZF84,85..TAIW,VN |
72022-0B020 |
— | ||
|
72137B
|
72137B
72137-0B040-B0
Cover, Seat Track, Rh
[01.2003 - 07.2007] KF80,RZF84,85..(DLX,GL)..TAIW BLUISH GRAY,TRIM1# |
72137-0B040-B0 |
— | ||
|
72137B
|
72137B
72137-38030-B0 Cover, Seat Track, RhSEAT TRACK, RH [02.1999 - 01.2003] KF80,RZF84,85..(DLX,GL)..(TAIW,VN) BLUISH GRAY,TRIM1# |
72137-38030-B0 |
US $62.32 |
||
|
72138B
|
72138B
72138-0B020-B0
Cover, Seat Track, Lh
[01.2003 - 07.2007] KF80,RZF84,85..(DLX,GL)..TAIW BLUISH GRAY,TRIM1# |
72138-0B020-B0 |
— | ||
|
72138B
|
72138B
72138-38020-B0 Cover, Seat Track, LhSEAT TRACK, LH [10.1998 - 10.2002] KF80,LF80,RZF81,84,85..LHD BLUISH GRAY,TRIM1# |
72138-38020-B0 |
US $62.17 |
||
|
72138B
|
72138B
72138-38060-B0 Cover, Seat Track, Outer LhSEAT TRACK OUTER, LH [10.2002 - 01.2003] KF80,RZF84,85..(DLX,GL)..TAIW BLUISH GRAY,TRIM1# |
72138-38060-B0 |
US $62.32 |
||
|
72157A
|
72157A
72157-38050-B0 Cover, Seat Track Bracket, Inner RhSEAT TRACK BRACKET, INNER RH [10.2002 - 01.2003] KF80,RZF84,85..(DLX,GL)..TAIW BLUISH GRAY,TRIM1# |
72157-38050-B0 |
US $8.15 |
||
|
72157C
|
72157C
72157-38050-B0 Cover, Seat Track Bracket, Inner RhSEAT TRACK BRACKET, INNER RH [02.1999 - 10.2002] LF81,85,RZF80,YF80..RHD;KF80,RZF84,85..(SHRV,SHRW)..(DLX,GL) BLUISH GRAY,TRIM1# |
72157-38050-B0 |
US $8.15 |
||
|
72157C
|
72157C
72158-0B040-B0
Cover, Seat Track Bracket, Inner Rh
[01.2003 - 07.2007] KF80,RZF84,85..(DLX,GL)..TAIW BLUISH GRAY,TRIM1# |
72158-0B040-B0 |
— | ||
|
72157C
|
72157C
72158-38080-B0 Cover, Seat Track Bracket, Inner RhSEAT TRACK BRACKET, INNER RH [10.2002 - 01.2003] KF80,RZF84,85..(DLX,GL)..TAIW BLUISH GRAY,TRIM1# |
72158-38080-B0 |
US $8.15 |
||
|
72158A
|
72158A
72158-38080-B0 Cover, Seat Track Bracket, Inner RhSEAT TRACK BRACKET, INNER RH [10.2002 - 01.2003] LF81,85,RZF80,85,YF80..RHD BLUISH GRAY,TRIM1#; KF80,RZF84,85..(DLX,GL)..TAIW BLUISH GRAY,TRIM1# |
72158-38080-B0 |
US $8.15 |
||
|
72201
|
72201
72201-0B020
Handle Sub-Assy, Seat Track
[02.1999 - 10.2002] KF60,80,RZF84,85..TAIW,VN |
72201-0B020 |
— | ||
|
72345A
|
72345A
72345-0B030
Pipe, Reclining Connecting
[02.1999 - 10.2002] KF80,RZF84,85..TAIW,VN |
72345-0B030 |
— | ||
|
72525A
|
72525A
72525-16010-B5 Handle, Reclining Adjuster Release, Rh[02.1999 - 06.2003] LF81,85,YF60,80..RHD;KF80,RZF80,84,85..SHRV,SHRW BLUISH GRAY,TRIM1# |
72525-16010-B5 |
US $16.89 |
||
| replacement | |||||
|
72525A
|
72525A
72525-16010-S1 Handle, Reclining Adjuster Release, Rh[02.1999 - 06.2003] LF81,85,YF60,80..RHD;KF80,RZF80,84,85..SHRV,SHRW BLUISH GRAY,TRIM1# |
72525-16010-S1 |
US $17.47 |
||
|
72526A
|
72526A
72526-16010-B5 Handle, Reclining Adjuster Release, Lh[02.1999 - 06.2003] KF80,LF61,81,85,RZF80,84,85,YF60,80..SHRV,SHRW BLUISH GRAY,TRIM1# |
72526-16010-B5 |
US $16.89 |
||
| replacement | |||||
|
72526A
|
72526A
72526-16010-S1 Handle, Reclining Adjuster Release, Lh[02.1999 - 06.2003] KF80,LF61,81,85,RZF80,84,85,YF60,80..SHRV,SHRW BLUISH GRAY,TRIM1# |
72526-16010-S1 |
US $13.63 |
||
|
91511B0816
|
91511B0816
91511-B0816 BOLT |
91511-B0816 |
US $0.84 |
||
| replacement | |||||
|
91511B0816
|
91511B0816
90080-10159 New Genuine Part |
90080-10159 |
US $3.21 |
||
|
9011908B82
|
9011908B82
90119-08B82 New Genuine Part |
90119-08B82 |
US $2.18 |
||
|
9010510241
|
9010510241
90105-10241 New Genuine Part |
90105-10241 |
US $3.20 |
||
|
9010511039
|
9010511039
90105-11039 New Genuine Part |
90105-11039 |
US $0.84 |
||
|
9356054008
|
9356054008
93560-54008 New Genuine Part |
93560-54008 |
US $1.08 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $0.96 |
||
