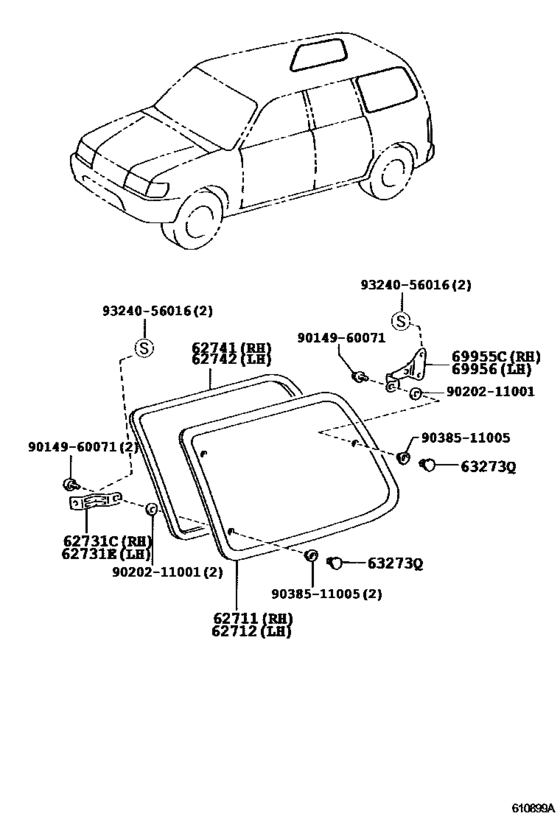

Side Window ([02.1999 - ] (9902- )KF8#,RZF84,85..TAIW,VN) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1999 - 2007
- Sales region
- General
- Frame
- KF80
- grade
- DLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- TAIW
- DECK
- LUB
- CAB
- SHRV
- Model
- ZACE
- From
- 02.1999
- To
- 07.2007
- Gear Shift Type
- 5F
- Vehicle Model
- ZACE
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62711
|
62711
62711-0B080
Glass, Quarter Window, Rh
[02.1999 - 10.2002] KF80..(DLX,STD)..TAIW *TEM,T=4.0,GREEN |
62711-0B080 |
— | ||
|
62711
|
62711
62711-0B100
Glass, Quarter Window, Rh
[02.1999 - 10.2002] KF80,RZF84,85..(DLX,GL)..(TAIW,VN) *TEM,T=4.0,DARKGRAY |
62711-0B100 |
— | ||
|
62712
|
62712
62712-0B080
Glass, Quarter Window, Lh
[02.1999 - 10.2002] KF80..(DLX,STD)..TAIW *TEM,T=4.0,GREEN |
62712-0B080 |
— | ||
|
62712
|
62712
62712-0B100
Glass, Quarter Window, Lh
[02.1999 - 02.2003] KF80,RZF84,85..(DLX,GL)..(TAIW,VN) *TEM,T=4.0,DARKGRAY |
62712-0B100 |
— | ||
|
62731C
|
62731C
62731-90P50
Hinge, Quarter Window, Rh
[02.1999 - 02.2003] KF80,RZF84,85..TAIW,VN |
62731-90P50 |
— | ||
|
62731E
|
62731E
62731-90P50
Hinge, Quarter Window, Rh
[02.1999 - 02.2003] KF80,RZF84,85..TAIW,VN |
62731-90P50 |
— | ||
|
62741
|
62741
62741-0B050
Weatherstrip, Quarter Window, Rh
[02.1999 - 01.2000] KF80,RZF85..TAIW,VN |
62741-0B050 |
— | ||
| replacement | |||||
|
62741
|
62741
62741-0B070
Weatherstrip, Quarter Window, Rh
[02.1999 - 01.2000] KF80,RZF85..TAIW,VN |
62741-0B070 |
— | ||
|
62741
|
62741
62741-0B070
Weatherstrip, Quarter Window, Rh
[01.2000 - 06.2003] KF80,LF81,85,RZF80,84,85,YF80..SHRV,SHRW |
62741-0B070 |
— | ||
|
62742
|
62742
62742-0B050
Weatherstrip, Quarter Window, Lh
[02.1999 - 01.2000] KF80,RZF85..TAIW,VN |
62742-0B050 |
— | ||
| replacement | |||||
|
62742
|
62742
62742-0B070
Weatherstrip, Quarter Window, Lh
[02.1999 - 01.2000] KF80,RZF85..TAIW,VN |
62742-0B070 |
— | ||
|
62742
|
62742
62742-0B070
Weatherstrip, Quarter Window, Lh
[01.2000 - 06.2003] KF80,LF81,85,RZF80,84,85,YF80..SHRV,SHRW |
62742-0B070 |
— | ||
|
63273Q
|
63273Q
63273-95701 Retainer, Quarter Or Side Window Hinge[12.1996 - 06.2003] KF82,LF82..RHD;KF7#,80,LF7#,80,81,85,RZF71,80,81,84,85,YF80 |
63273-95701 |
from US $1.48 |
||
|
69955C
|
69955C
69955-38010 Bracket, Quarter Window Glass, RhQUARTER WINDOW GLASS, RH [02.1999 - 02.2003] KF80,RZF84,85..TAIW,VN |
69955-38010 |
US $9.03 |
||
|
69956
|
69956
69956-38010 Bracket, Quarter Window Glass, LhQUARTER WINDOW GLASS, LH [02.1999 - 02.2003] KF80,RZF84,85..TAIW,VN |
69956-38010 |
US $9.03 |
||
|
9014960071
|
9014960071
90149-60071 New Genuine Part |
90149-60071 |
US $1.60 |
||
|
9020211001
|
9020211001
90202-11001 NUT |
90202-11001 |
from US $0.84 |
||
| replacement | |||||
|
9020211001
|
9020211001
90202-T0002 WASHER |
90202-T0002 |
US $0.64 |
||
|
9038511005
|
9038511005
90385-11005 BUSH |
90385-11005 |
from US $1.35 |
||
|
9324056016
|
9324056016
93240-56016 SCREW |
93240-56016 |
US $1.60 |
||
