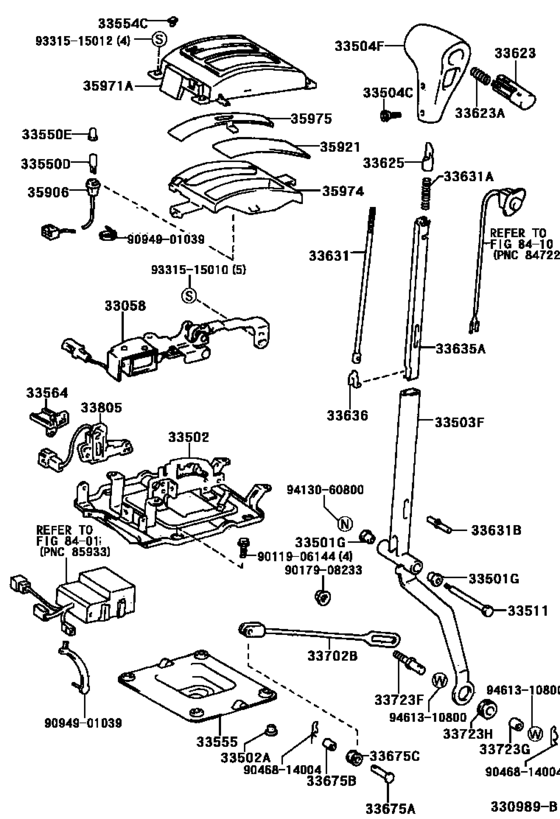

Shift Lever & Retainer ([02.1999 - ] (9902- )KF80,RZF85..4FC..TAIW) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1999 - 2007
- Sales region
- General
- Frame
- KF80
- grade
- GL
- ENGINE
- 7KE
- TRANSMISSION
- ATM
- DESTINATION
- TAIW
- DECK
- LUB
- CAB
- SHRV
- Model
- ZACE
- From
- 02.1999
- To
- 07.2007
- Gear Shift Type
- 4FC
- Vehicle Model
- ZACE
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33058
|
33058
33058-35040 Bracket Sub-Assy, Shift Lock SolenoidSHIFT LOCK SOLENOID [02.1999 - 10.2002] KF80..4FC..TAIW |
33058-35040 |
US $35.38 |
||
|
33501G
|
33501G
90385-11003 Bush(For Control Shaft)[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81..4FC |
90385-11003 |
from US $1.21 |
||
|
33502
|
33502
33502-38030 Plate Sub-Assy, Shift LeverSHIFT LEVER [02.1999 - 10.2002] KF80..4FC..TAIW |
33502-38030 |
US $87.36 |
||
|
33502A
|
33502A
90387-06065 Collar (For Floor Shift Setting)[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81..4FC OD=8.8 |
90387-06065 |
US $3.23 |
||
|
33503F
|
33503F
33055-38020 Lever Sub-Assy, Shift(For Floor Shift)SHIFT(FOR FLOOR SHIFT) [10.1998 - 11.2002] KF80,RZF81..4FC..LHD |
33055-38020 |
US $71.34 |
||
|
33504C
|
33504C
90159-40109 Bolt Or Pin (For Shift Lever Knob Setting)[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81,84,85..4FC |
90159-40109 |
US $1.43 |
||
|
33504F
|
33504F
33542-20150-B0
Knob Sub-Assy, Shift Lever
[10.1998 - 04.2001] KF80,RZF81..4FC..LHD BLUISH GRAY,TRIM1# |
33542-20150-B0 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33542-20150-C0 Knob Sub-Assy, Shift LeverSHIFT LEVER [10.1998 - 04.2001] KF80,RZF81..4FC..LHD BLUISH GRAY,TRIM1# |
33542-20150-C0 |
US $82.49 |
||
|
33504F
|
33504F
33542-20150-C0 Knob Sub-Assy, Shift LeverSHIFT LEVER [04.2001 - 10.2002] KF80..4FC..TAIW BLACK,TRIM1# |
33542-20150-C0 |
US $82.49 |
||
|
33504F
|
33504F
33542-20150-E1 Knob Sub-Assy, Shift LeverSHIFT LEVER [10.2002 - 07.2007] KF8#,RZF82..4FC..GL..LHD ORCHID BROWN,TRIM4# |
33542-20150-E1 |
US $66.10 |
||
| replacement | |||||
|
33504F
|
33504F
33542-20150-C0 Knob Sub-Assy, Shift LeverSHIFT LEVER [10.2002 - 07.2007] KF8#,RZF82..4FC..GL..LHD ORCHID BROWN,TRIM4# |
33542-20150-C0 |
US $82.49 |
||
|
33511
|
33511
33511-22160 Shaft Sub-Assy, Control (For Floor Shift)[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81..4FC |
33511-22160 |
US $7.57 |
||
|
33550D
|
33550D
99132-12034 Bulb, Position Indicator Lamp[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81..4FC 12V 3.4W |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
33550D
|
33550D
00234-00158 Bulb, Position Indicator Lamp[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81..4FC 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
33550E
|
33550E
90339-09001 Cap, Position Indicator Lamp[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81..4FC |
90339-09001 |
US $2.15 |
||
|
33554C
|
33554C
33554-35020 Cover, Shift Lock Release ButtonSHIFT LOCK RELEASE BUTTON [02.1999 - 10.2002] KF80..4FC..TAIW |
33554-35020 |
US $6.99 |
||
|
33555
|
33555
33555-35100 Boot, Shift Lever[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81..4FC |
33555-35100 |
US $28.48 |
||
|
33564
|
33564
33564-35081 Link, Shift Lock Release, No.1SHIFT LOCK RELEASE, NO.1 [02.1999 - 10.2002] KF80..4FC..TAIW |
33564-35081 |
US $4.80 |
||
|
33623
|
33623
33623-20070-B0 Button, Shift Lever KnobSHIFT LEVER KNOB [10.1998 - 04.2001] KF80,RZF81..4FC..LHD BLUISH GRAY,TRIM1# |
33623-20070-B0 |
US $20.53 |
||
| replacement | |||||
|
33623
|
33623
33623-20070-C0 Button, Shift Lever Knob (Black)[10.1998 - 04.2001] KF80,RZF81..4FC..LHD BLUISH GRAY,TRIM1# |
33623-20070-C0 |
US $19.83 |
||
|
33623
|
33623
33623-20070-C0 Button, Shift Lever Knob (Black)[04.2001 - 10.2002] KF80..4FC..TAIW BLACK,TRIM1# |
33623-20070-C0 |
US $19.83 |
||
|
33623
|
33623
33623-20070-E1 Button, Shift Lever KnobSHIFT LEVER KNOB [10.2002 - 07.2007] KF8#,RZF82..4FC..GL..LHD ORCHID BROWN,TRIM4# |
33623-20070-E1 |
US $20.53 |
||
| replacement | |||||
|
33623
|
33623
33623-20070-C0 Button, Shift Lever Knob (Black)[10.2002 - 07.2007] KF8#,RZF82..4FC..GL..LHD ORCHID BROWN,TRIM4# |
33623-20070-C0 |
US $19.83 |
||
|
33623A
|
33623A
90501-07009 Spring, Compression (For Shift Lever Knob)[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81..4FC |
90501-07009 |
from US $4.49 |
||
|
33625
|
33625
33625-24010 Sleeve, Shift Lever Knob[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81..4FC |
33625-24010 |
US $5.78 |
||
|
33631
|
33631
33631-16020 Rod, Detent[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81..4FC |
33631-16020 |
US $15.43 |
||
|
33631A
|
33631A
90501-07074 Spring, Compression (For Detent Rod)[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81,84,85..4FC |
90501-07074 |
US $1.10 |
||
|
33631B
|
33631B
90256-04003 Pin, Slotted Spring (For Detent Rod)[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81..4FC |
90256-04003 |
US $2.97 |
||
|
33635A
|
33635A
33635-16020 Guide, Wire, No.1 (For Shift Lever)[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81..4FC |
33635-16020 |
US $13.40 |
||
|
33636
|
33636
33636-35010 Protector, Wire[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81,84,85..4FC |
33636-35010 |
US $2.87 |
||
|
33675A
|
33675A
90240-08054 Pin, W/hole (For Transmission Control Rod)[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81,84,85..4FC |
90240-08054 |
from US $1.79 |
||
|
33675B
|
33675B
90389-08005 Bushing(For Gear Selecting Rod)[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81,84,85..4FC |
90389-08005 |
from US $1.77 |
||
|
33675C
|
33675C
90480-17177 Grommet (For Transmission Control Rod)[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81,84,85..4FC |
90480-17177 |
from US $2.07 |
||
|
33702B
|
33702B
33702-38010 Rod Sub-Assy, Gear Shifting, No.1 (For Floor Shift)GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) [12.1996 - 12.2002] KF7#,80..4FC;KF82..4FC..RHD |
33702-38010 |
US $17.33 |
||
|
33723F
|
33723F
33723-22010 Swivel, Connecting Rod (For Column Shift)[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81,84,85..4FC |
33723-22010 |
from US $11.47 |
||
|
33723G
|
33723G
90389-08005 Bushing(For Gear Selecting Rod)[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81,84,85..4FC |
90389-08005 |
from US $1.77 |
||
|
33723H
|
33723H
33572-22010 Grommet (For Floor Shift Control Shaft)[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81,84,85..4FC |
33572-22010 |
from US $3.47 |
||
|
33805
|
33805
33805-35020 Plate Sub-Assy, Shift Lock (For Floor Shift)SHIFT LOCK (FOR FLOOR SHIFT) [02.1999 - 10.2002] KF80..4FC..TAIW |
33805-35020 |
US $21.69 |
||
|
35906
|
35906
35906-35090 Wire Sub-Assy, Indicator Lamp[02.1999 - 10.2002] KF80..4FC..TAIW |
35906-35090 |
US $15.58 |
||
|
35921
|
35921
35921-38020
Plate, Control Position Indicator
[10.1998 - 11.2002] KF80,RZF81..4FC..LHD |
35921-38020 |
— | ||
|
35971A
|
35971A
35971-35100 Housing, Position Indicator, UpperPOSITION INDICATOR, UPPER [02.1999 - 10.2002] KF80..4FC..TAIW |
35971-35100 |
US $26.21 |
||
|
35974
|
35974
35974-35110 Housing, Position Indicator, LowerPOSITION INDICATOR, LOWER [02.1999 - 10.2002] KF80..4FC..TAIW |
35974-35110 |
US $19.66 |
||
|
35975
|
35975
35975-35040 Cover, Slide (For Position Indicator)[12.1996 - 12.2002] KF82..4FC..RHD;KF7#,80,RZF71,81..4FC |
35975-35040 |
US $14.33 |
||
|
35975
|
35975
35975-35040-B0
Cover, Slide (For Position Indicator)
[10.2002 -] KF80..SHRV..4FC BLUISH GRAY,TRIM1# |
35975-35040-B0 |
— | ||
| replacement | |||||
|
35975
|
35975
35975-35040 Cover, Slide (For Position Indicator)[10.2002 -] KF80..SHRV..4FC BLUISH GRAY,TRIM1# |
35975-35040 |
US $14.33 |
||
|
9011906144
|
9011906144
90119-06144 Bolt, Hexagon (For Shift Lever Plate) |
90119-06144 |
US $0.61 |
||
|
9017908233
|
9017908233
90179-08233 NUT |
90179-08233 |
from US $1.31 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.66 |
||
|
9094901039
|
9094901039
90949-01039 CLAMP |
90949-01039 |
US $1.60 |
||
|
9331515010
|
9331515010
93315-15010 New Genuine Part |
93315-15010 |
US $1.25 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.76 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.68 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
