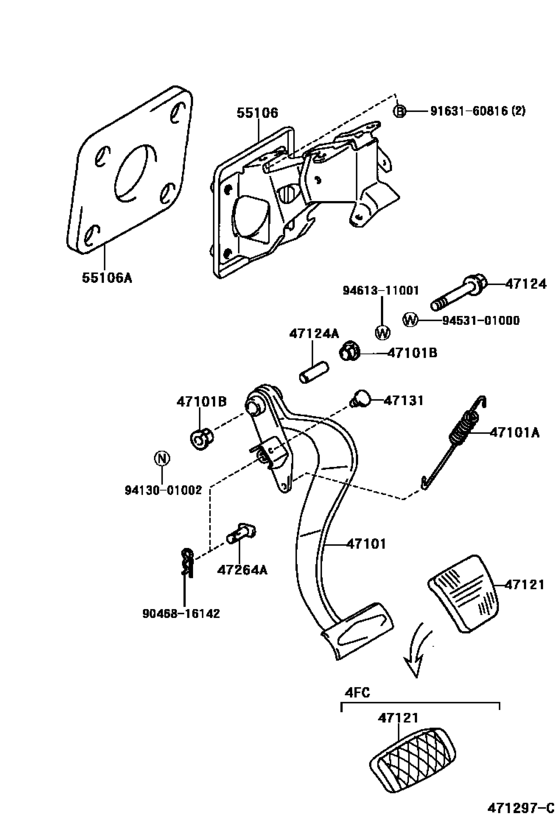

Brake Pedal & Bracket ([10.1998 - ] (9810- )LHD) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- KF80
- grade
- GLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- DECK
- LUB
- CAB
- SRF
- Model
- REVO
- From
- 10.1998
- To
- 11.2002
- Gear Shift Type
- 5F
- Vehicle Model
- REVO
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47101-0B030
Pedal Sub-Assy, Brake
[10.1998 - 11.2002] KF80,LF80,RZF81..5F..PHL |
47101-0B030 |
— | ||
|
47101A
|
47101A
90507-19004 Spring(For Brake Pedal Return)[10.1998 - 06.2003] KF60,80,LF61,80,81,85,RZF81,84,85,YF60,80..LHD |
90507-19004 |
US $3.49 |
||
|
47101B
|
47101B
90386-13015 Bush(For Clutch Pedal)[10.1998 - 06.2003] KF60,80,LF61,80,81,85,RZF81,84,85,YF60,80..LHD |
90386-13015 |
from US $0.64 |
||
|
47121
|
47121
31321-14010 Pedal Pad[10.1998 - 11.2002] KF80,LF80,RZF81..5F..PHL |
31321-14010 |
US $5.73 |
||
|
47124
|
47124
91112-61060 Shaft, Clutch Pedal[12.1996 - 09.1999] KF80..5F..GLX;KF80..5F..TAIW;KF60,70,80,LF60,70,80..(SCB,SRF)..(DLX,GL,STD) |
91112-61060 |
US $3.06 |
||
|
47124
|
47124
91121-51060 Shaft, Clutch Pedal[09.1999 - 06.2003] KF60,80,LF61,80,81,85,RZF81,84,85,YF60,80..LHD |
91121-51060 |
from US $2.40 |
||
|
47124A
|
47124A
90387-10003 Collar, Clutch Pedal Shaft[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80 |
90387-10003 |
from US $3.94 |
||
|
47131
|
47131
90541-06008 Cushion, No.1(For Clutch Pedal)[04.1998 - 03.2001] KF60,80,LF61,80,81,85,RZF8#,YF60,80..MA,PHL,SA,TAIW,VN |
90541-06008 |
from US $1.54 |
||
|
47264A
|
47264A
90240-10015 Pin(For Push Rod)[10.1998 - 06.2003] KF60,80,LF61,80,81,85,RZF81,84,85,YF60,80..LHD |
90240-10015 |
US $5.10 |
||
|
55106
|
55106
55106-0B020
Support Sub-Assy, Brake Pedal
[10.1998 - 11.2002] KF80,LF80,RZF81..PHL |
55106-0B020 |
— | ||
|
55106A
|
55106A
55259-38010 Seal, Dash PanelDASH PANEL [09.1998 - 06.2003] YF60..LHD;KF80..MA,PHL,TAIW,VN;LF80,RZF81..DLX,GL,GLX;KF60,72,82,LF61,7#,81,82,85, RZF71,80,84,85,YF80..(LUB,T2)..(GEN,SA,TAIW) |
55259-38010 |
US $5.68 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.82 |
||
|
9163160816
|
9163160816
91631-60816 BOLT |
91631-60816 |
from US $1.07 |
||
|
9413001002
|
9413001002
94130-01002 Nut, Booster Sleeve Cylinder |
94130-01002 |
from US $0.94 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.61 |
||
|
9461311001
|
9461311001
94613-11001 WASHER |
94613-11001 |
US $2.15 |
