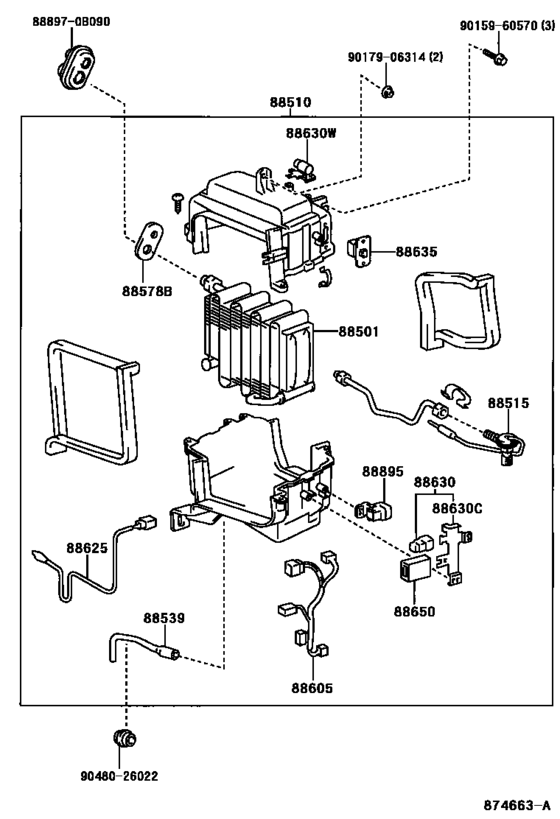

Heating & Air Conditioning - Cooler Unit ([02.2001 - 11.2002] FRONT UNIT (0102-0211)KF80,RZF81..GLX ; (0211- )PHL) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- KF80
- grade
- GLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- DECK
- LUB
- CAB
- SRF
- Model
- REVO
- From
- 10.1998
- To
- 11.2002
- Gear Shift Type
- 5F
- Vehicle Model
- REVO
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88501
|
88501
88501-0B060
Evaporator Sub-Assy, Cooler, No.1
[10.1998 - 11.2002] KF80,RZF81..GLX |
88501-0B060 |
— | ||
|
88510
|
88510
88510-0B060
Unit Assy, Cooler
[10.1998 - 02.2001] KF80..GLX |
88510-0B060 |
— | ||
|
88510
|
88510
88510-0B061
Unit Assy, Cooler
[02.2001 - 11.2002] KF80..GLX |
88510-0B061 |
— | ||
|
88515
|
88515
88515-0B130
Valve, Cooler Expansion
[10.1998 - 11.2002] KF80,RZF81..GLX |
88515-0B130 |
— | ||
|
88539
|
88539
88539-0B060
Hose, Cooler Unit Drain, No.1
[10.1998 - 11.2002] KF80..GLX |
88539-0B060 |
— | ||
|
88578B
|
88578B
88578-0B150
Packing, Cooling Unit, No.1
[10.1998 - 11.2002] KF80,RZF81..GLX |
88578-0B150 |
— | ||
|
88605
|
88605
88605-0B150
Harness Sub-Assy, Cooler Wiring, No.1
[10.1998 - 02.2001] KF80..GLX |
88605-0B150 |
— | ||
|
88605
|
88605
88605-0B151
Harness Sub-Assy, Cooler Wiring, No.1
[02.2001 - 11.2002] KF80..GLX |
88605-0B151 |
— | ||
|
88625
|
88625
88625-0B030
Thermistor, Cooler, No.1
[10.1998 - 11.2002] KF80,RZF81..GLX |
88625-0B030 |
— | ||
|
88630
|
88630
88630-0B110
Relay Assy, Cooler
[10.1998 - 11.2002] KF80,RZF81..GLX |
88630-0B110 |
— | ||
|
88630C
|
88630C
88630-0B150
Bracket, Cooler Relay
[02.2001 - 02.2003] KF80..(DLX,STD)..(TAIW,VN);KF60,80,RZF81..(SCB,SRF)..(GLX,STD)..LHD |
88630-0B150 |
— | ||
|
88630W
|
88630W
88630-0B100
Relay Assy
[10.1998 - 11.2002] KF80,RZF81..GLX |
88630-0B100 |
— | ||
|
88635
|
88635
88635-0B030
Resistor, Cooler Unit Blower
[10.1998 - 11.2002] KF80,RZF81..GLX |
88635-0B030 |
— | ||
|
88650
|
88650
88650-0B150
Amplifier Assy, Cooler Stabilizer
[10.1998 - 02.2001] KF80..GLX |
88650-0B150 |
— | ||
|
88650
|
88650
88650-0B151
Amplifier Assy, Cooler Stabilizer
[02.2001 - 11.2002] KF80..GLX |
88650-0B151 |
— | ||
|
88895
|
88895
88895-0B070
Holder, Fuse
[10.1998 - 11.2002] KF80,RZF81..GLX |
88895-0B070 |
— | ||
|
888970B090
|
888970B090
88897-0B090
Valve, Cooler Magnet
|
88897-0B090 |
— | ||
|
9015960570
|
9015960570
90159-60570 New Genuine Part |
90159-60570 |
US $1.46 |
||
|
9017906314
|
9017906314
90179-06314 NUT |
90179-06314 |
from US $0.76 |
||
|
9048026022
|
9048026022
90480-26022 Grommet (For Cooler Unit) |
90480-26022 |
US $2.45 |
