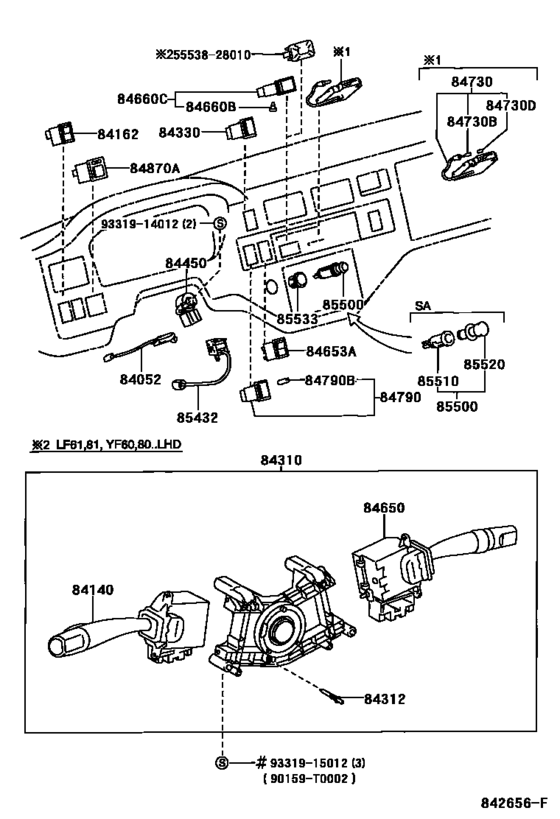

Switch & Relay & Computer ([10.1998 - ] INSTRUMENT PANEL & COMBINATION SW (9810- )PHL,VN ; (9902-9903)DLX,STD..TAIW ; ( 9903-9910)GL,STD..TAIW ; (9910- )DLX,STD..TAIW ; (0003-0306)LF61,81,85,RZF84,YF60,80..LHD) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- KF80
- grade
- GLX
- ENGINE
- 7KE
- TRANSMISSION
- ATM
- DESTINATION
- PHL
- DECK
- LUB
- CAB
- SRF
- Model
- REVO
- From
- 10.1998
- To
- 11.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- REVO
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-12070 Switch Assy, Un-Lock Warning[10.1998 - 08.2002] LF81,85,RZF80,85..SA;KF80,LF61,80,RZF81..(GLX,STD)..(PHL,SA) |
84052-12070 |
US $18.14 |
||
|
84140
|
84140
84140-02030
Switch Assy, Headlamp Dimmer
[10.1998 - 02.2001] KF80..VN;KF80,LF80..GLX |
84140-02030 |
— | ||
|
84162
|
84162
84160-95400 Switch Assy, Fog Lamp[12.1996 - 03.2001] KF80,LF80,RZF81..GLX;KF70,80,LF80,RZF84,85..GL..(GEN,MA,TAIW,VN) |
84160-95400 |
US $51.72 |
||
|
84310
|
84310
84310-0B040
Switch Assy, Turn Signal
[10.1998 - 02.2003] KF80..VN;KF80,LF80,RZF81..GLX |
84310-0B040 |
— | ||
|
84312
|
84312
84312-06010
Plate, Horn Contact
[10.1998 - 02.2001] KF80..VN;KF70,80,LF80..SRF..(4FC,5F)..(GLX,STD);KF60,72,82,LF60,72,82,RZF71,81..(4 FC,5F)..RHD |
84312-06010 |
— | ||
|
84330
|
84330
84332-0B020
Switch Assy, Hazard Warning Signal
[10.1998 - 08.2001] KF60,7#,8#,LF6#,7#,8#,RZF71,80,81,85,YF60,80..GEN,MA,PHL,SA |
84332-0B020 |
— | ||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80 |
84450-12200 |
from US $54.43 |
||
|
84650
|
84650
84652-0B030
Switch Assy, Windshield Wiper
[10.1998 - 02.2003] KF80..VN;KF80,LF80,RZF81..GLX |
84652-0B030 |
— | ||
|
84790
|
84790
84790-95J02 Switch Assy, Rear Window Defogger[02.2001 - 03.2001] KF80,LF80,RZF81..GLX |
84790-95J02 |
US $133.95 |
||
|
84870A
|
84870A
84870-16020
Switch Assy, Outer Mirror
[10.1998 - 10.2002] KF80,LF80,RZF81..GLX;KF80,RZF84,85..GL..(TAIW,VN) |
84870-16020 |
— | ||
| replacement | |||||
|
84870A
|
84870A
84870-22200 Switch Assy, Outer Mirror[10.1998 - 10.2002] KF80,LF80,RZF81..GLX;KF80,RZF84,85..GL..(TAIW,VN) |
84870-22200 |
US $86.31 |
||
|
85500
|
85500
85500-38010
Lighter Assy, Cigarette
[12.1996 - 03.2001] KF80..STD..LHD;KF60,LF70,RZF81..(LUB,T2)..(DLX,GLX,STD);KF70,80,LF80,RZF84,85..(DL X,GL,GLX)..(GEN,MA,PHL,TAIW,VN) |
85500-38010 |
— | ||
|
85533
|
85533
85533-30040 Lens, Cigarette Lighter Indicator[12.1996 - 06.2003] KF80..STD..LHD;KF70,80,LF80,RZF81..DLX,GL,GLX;KF60,72,82,LF61,7#,81,82,85,RZF71,80 ,84,85,YF60,80..(LUB,T2)..(GEN,SA,TAIW) |
85533-30040 |
US $7.43 |
||
| replacement | |||||
|
85533
|
85533
85533-30041 Lens, Cigarette Lighter IndicatorCIGARETTE LIGHTER INDICATOR [12.1996 - 06.2003] KF80..STD..LHD;KF70,80,LF80,RZF81..DLX,GL,GLX;KF60,72,82,LF61,7#,81,82,85,RZF71,80 ,84,85,YF60,80..(LUB,T2)..(GEN,SA,TAIW) |
85533-30041 |
US $6.09 |
||
|
90159T0002
|
90159T0002
90159-T0002
Screw, W/washer
|
90159-T0002 |
— | ||
|
5553828010
|
5553828010
55538-28010 Cover, Cooler Switch Hole |
55538-28010 |
US $2.91 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.25 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
