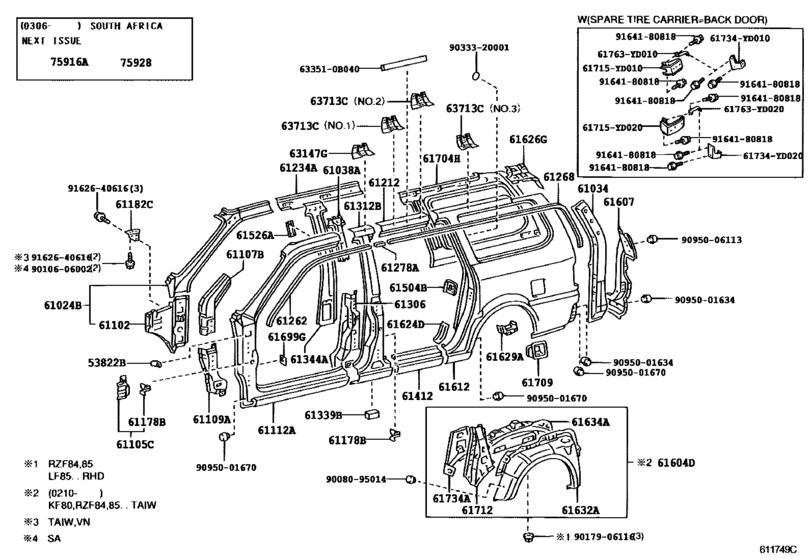

Side Member ([02.1999 - ] LH SIDE (9902- )KF8#,RZF84,85..TAIW,VN ; (0004- )S A) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- KF80
- grade
- GL
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- VN
- DECK
- LUB
- CAB
- SHRW
- Model
- ZACE
- From
- 09.1999
- To
- 02.2003
- Gear Shift Type
- 5F
- Vehicle Model
- ZACE
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53822B
|
53822B
53821-0B010
Bracket, Front Fender, Rear Rh
[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80 |
53821-0B010 |
— | ||
|
61024B
|
61024B
61024-0B090
Pillar Sub-Assy, Front Body, Inner Lh
[02.1999 - 02.2003] KF80,RZF84,85..TAIW,VN |
61024-0B090 |
— | ||
|
61034
|
61034
61034-0B040
Reinforce Sub-Assy, Back Door Opening Side, Lh
[02.1999 - 02.2003] KF80,RZF85..SHRW..LHD |
61034-0B040 |
— | ||
|
61038A
|
61038A
61038-0B020
Reinforcement Sub-Assy, Center Body Pillar, Lh
[02.1999 - 02.2001] LF80..GLX;KF80,RZF84,85..TAIW,VN |
61038-0B020 |
— | ||
|
61102
|
61102
61102-0B050
Panel Sub-Assy, Cowl Side, Lh
[02.1999 - 02.2003] KF60,80,RZF84,85..TAIW,VN |
61102-0B050 |
— | ||
|
61105C
|
61105C
61105-0B010 Reinforce Sub-Assy, Front Door Check, RhFRONT DOOR CHECK, RH [12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80 |
61105-0B010 |
US $17.33 |
||
|
61107B
|
61107B
61107-0B010
Reinforce Sub-Assy, Front Body Pillar, Upper Rh
[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80 |
61107-0B010 |
— | ||
|
61109A
|
61109A
61109-0B010
Reinforce Sub-Assy, Front Body Pillar, Lower Lh
[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80 |
61109-0B010 |
— | ||
|
61112A
|
61112A
61112-0B020
Panel, Front Side, Outer Lh
[10.1998 - 06.2003] KF60,80,LF61,80,81,85,RZF80,81,84,85,YF60,80..PHL,SA,TAIW,VN |
61112-0B020 |
— | ||
|
61178B
|
61178B
61177-95D03 Bracket, Door Check ArmDOOR CHECK ARM [12.1997 - 06.2003] KF70,80,LF80,RZF81;KF60,72,82,LF6#,7#,81,82,85,RZF71,80,84,85,YF60,80..(4FC,5F)..( GEN,SA,TAIW) |
61177-95D03 |
US $6.12 |
||
|
61182C
|
61182C
61036-0B010
Bracket, Instrument Side, Lh
[10.1998 - 06.2003] KF60,80,LF61,80,81,RZF81,84,85,YF60,80..LHD |
61036-0B010 |
— | ||
|
61212
|
61212
61212-0B010 Rail, Roof Side, Outer LhROOF SIDE, OUTER LH [12.1996 - 06.2003] LF85..LHD;KF82,LF82..CBU..RHD;KF7#,80,LF7#,80,RZF71,81,84,85..CBU..(GEN,MA,PHL,TAI W,VN) |
61212-0B010 |
US $44.99 |
||
|
61234A
|
61234A
61234-0B020
Rail, Roof Side, Inner No.2 Lh
[02.1999 - 02.2003] KF80,RZF84,85..TAIW,VN |
61234-0B020 |
— | ||
|
61262
|
61262
61264-0B040 Channel, Roof Drip, LhROOF DRIP, LH [02.1999 - 08.2001] RZF71,81;KF80,RZF84,85..TAIW,VN |
61264-0B040 |
US $28.54 |
||
|
61268
|
61268
61268-0B050
Channel, Roof Drip Side, Rear Lh
[02.1999 - 10.2000] KF80,RZF84,85..TAIW,VN |
61268-0B050 |
— | ||
|
61306
|
61306
61306-0B030
Reinforce Sub-Assy, Center Body Pillar, Lower Lh
[12.1997 - 02.2003] KF80..GL..VN;KF7#,8#,LF7#,80,82,RZF71,81,84,85..(DLX,GL)..(GEN,MA,TAIW) DUAL AIR CONDITIONER |
61306-0B030 |
— | ||
|
61312B
|
61312B
61312-0B030
Pillar, Center Body, Outer Lh
[10.1998 - 06.2003] KF80,LF61,80,81,85,RZF80,81,84,85,YF60,80..PHL,SA,TAIW,VN |
61312-0B030 |
— | ||
|
61339B
|
61339B
61339-0B010
Seal, Center Body Pillar, Inner No.1
[12.1996 - 03.2001] KF60,7#,8#,LF60,7#,80,82,RZF71,81..GEN,MA,VN |
61339-0B010 |
— | ||
|
61344A
|
61344A
61344-0B040
Pillar, Center Body, Inner Lh
[02.1999 - 02.2003] KF80,RZF84,85..(DLX,GL)..(TAIW,VN) |
61344-0B040 |
— | ||
|
61412
|
61412
61412-0B030
Panel, Rocker, Outer Lh
[10.1998 - 02.2003] KF80,LF80,RZF81,84,85..LHD |
61412-0B030 |
— | ||
|
61504B
|
61504B
61503-0B010
Reinforcement Sub-Assy, Quarter Lock Pillar, Rh
[12.1996 - 04.2001] KF7#,8#,LF7#,80,82,RZF71,81,84,85..CBU..(GEN,MA,PHL,TAIW,VN) |
61503-0B010 |
— | ||
|
61607
|
61607
61706-0B050
Frame Sub-Assy, Back Door Opening Side, Lh
[02.1999 - 10.2000] KF70,80,LF80..5F..STD;KF80..(DLX,GL)..(TAIW,VN);KF72,82,LF72,82,RZF84,85..CBU..(GE N,TAIW) |
61706-0B050 |
— | ||
|
61612
|
61612
61612-0B080
Panel, Quarter, Lh
[02.1999 - 02.2003] KF80..(DLX,GL)..(TAIW,VN) |
61612-0B080 |
— | ||
|
61624D
|
61624D
61624-0B020 Extension, Quarter Panel, Front LhQUARTER PANEL, FRONT LH [12.1996 - 06.2003] LF85..LHD;KF82,LF82..CBU..RHD;KF80,LF80,RZF81,84,85..CBU..(GEN,MA,PHL,TAIW,VN) |
61624-0B020 |
US $11.94 |
||
|
61626G
|
61626G
61626-0B020
Extension, Quarter Panel, Rear Lh
[02.1999 - 02.2003] KF80,RZF84,85..TAIW,VN |
61626-0B020 |
— | ||
|
61629A
|
61629A
61629-0B010 Reinforcement, Quarter Panel, LhQUARTER PANEL, LH [12.1996 - 06.2003] LF85..LHD;KF82,LF82..CBU..RHD;KF7#,80,LF7#,80,RZF71,81,84,85..CBU..(GEN,MA,PHL,TAI W,VN) |
61629-0B010 |
US $11.94 |
||
|
61632A
|
61632A
61604-0B040
Panel Sub-Assy, Quarter Wheel House, Lh
[11.1999 - 12.1999] KF80..VN |
61604-0B040 |
— | ||
|
61632A
|
61632A
61606-0B040
Panel, Quarter Wheel House, Outer Lh
[02.1999 - 11.1999] KF80..SHRW |
61606-0B040 |
— | ||
|
61632A
|
61632A
61606-0B080
Panel, Quarter Wheel House, Outer Lh
[12.1999 - 02.2003] KF80,RZF85..SHRW..LHD |
61606-0B080 |
— | ||
|
61634A
|
61634A
61608-0B050
Panel, Quarter Wheel House, Inner Lh
[02.1999 - 02.2003] KF80,RZF85..SHRW..LHD |
61608-0B050 |
— | ||
|
61699G
|
61699G
61699-0B010 Retainer, Courtesy Switch, RhCOURTESY SWITCH, RH [12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80 |
61699-0B010 |
US $2.91 |
||
|
61704H
|
61704H
61704-0B050
Panel Sub-Assy, Quarter, Inner Lh
[02.1999 - 02.2003] KF80,RZF85..SHRW..LHD |
61704-0B050 |
— | ||
|
61709
|
61709
61725-0B030
Box Sub-Assy, Fuel Inlet
[10.1998 - 03.2001] KF80,LF80..(DLX,GL)..LHD;KF70,80,LF80..(4FC,5F)..(GLX,STD);KF72,82,LF72,82,RZF71,8 1,84,85..CBU..(GEN,PHL,TAIW) |
61725-0B030 |
— | ||
|
61712
|
61712
61712-0B020
Panel, Roof Side, Outer Lh
[02.1999 - 01.2001] KF80,RZF84,85..TAIW,VN |
61712-0B020 |
— | ||
|
61712
|
61712
61712-0B040
Panel, Roof Side, Outer Lh
[03.2001 - 02.2003] KF80,RZF84,85..TAIW,VN |
61712-0B040 |
— | ||
|
61734A
|
61734A
61708-0B020
Panel, Roof Side, Inner Front Lh
[02.1999 - 08.2002] KF80,RZF84,85..TAIW,VN |
61708-0B020 |
— | ||
|
63147G
|
63147G
63148-0B010
Bracket, Roof Panel Reinforcement
[02.1999 - 06.2003] KF80,LF61,81,85,RZF80,84,85,YF60,80..SHRV,SHRW |
63148-0B010 |
— | ||
|
63713C
|
63713C
63713-0B010
Bracket, Roof Panel Reinforcement, Lh
[02.1999 - 06.2003] KF80,LF85,RZF84,85..(SHRV,SHRW)..LHD NO.1 |
63713-0B010 |
— | ||
|
63713C
|
63713C
63715-0B010
Bracket, Roof Panel Reinforcement, Lh
[02.1999 - 06.2003] KF80,LF85,RZF84,85..(SHRV,SHRW)..LHD NO.2 |
63715-0B010 |
— | ||
|
63713C
|
63713C
63717-0B010
Bracket, Roof Panel Reinforcement, Lh
[02.1999 - 06.2003] KF80,LF85,RZF84,85..(SHRV,SHRW)..LHD NO.3 |
63717-0B010 |
— | ||
|
61715YD010
|
61715YD010
61715-YD010
Reinforcement, Roof Side, Inner Rear Rh
|
61715-YD010 |
— | ||
|
61715YD020
|
61715YD020
61715-YD020
Reinforcement, Roof Side, Inner Rear Rh
|
61715-YD020 |
— | ||
|
61734YD010
|
61734YD010
61734-YD010
Gusset, Quarter, Inner Lh
|
61734-YD010 |
— | ||
|
61734YD020
|
61734YD020
61734-YD020
Gusset, Quarter, Inner Lh
|
61734-YD020 |
— | ||
|
61763YD010
|
61763YD010
61763-YD010
Case, Quarter Window Lock Setting Nut, Lh
|
61763-YD010 |
— | ||
|
61763YD020
|
61763YD020
61763-YD020
Case, Quarter Window Lock Setting Nut, Lh
|
61763-YD020 |
— | ||
|
633510B040
|
633510B040
63351-0B040
Silencer, Roof Side
|
63351-0B040 |
— | ||
|
9008095014
|
9008095014
90080-95014
New Genuine Part
|
90080-95014 |
— | ||
|
9010606002
|
9010606002
90106-06002 New Genuine Part |
90106-06002 |
US $1.46 |
||
|
9017906116
|
9017906116
90179-06116 New Genuine Part |
90179-06116 |
US $1.97 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.21 |
||
|
9095001634
|
9095001634
90950-01634 New Genuine Part |
90950-01634 |
US $2.48 |
||
|
9095001670
|
9095001670
90950-01670
Plug, Hole(For Front Fender Apron)
|
90950-01670 |
— | ||
| replacement | |||||
|
9095001670
|
9095001670
90950-01025 Plug, Hole(For Front Fender Apron) |
90950-01025 |
US $4.30 |
||
|
9095006113
|
9095006113
90950-06113 New Genuine Part |
90950-06113 |
US $2.04 |
||
|
9162640616
|
9162640616
91626-40616 New Genuine Part |
91626-40616 |
US $1.38 |
||
|
9164180818
|
9164180818
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.78 |
||
