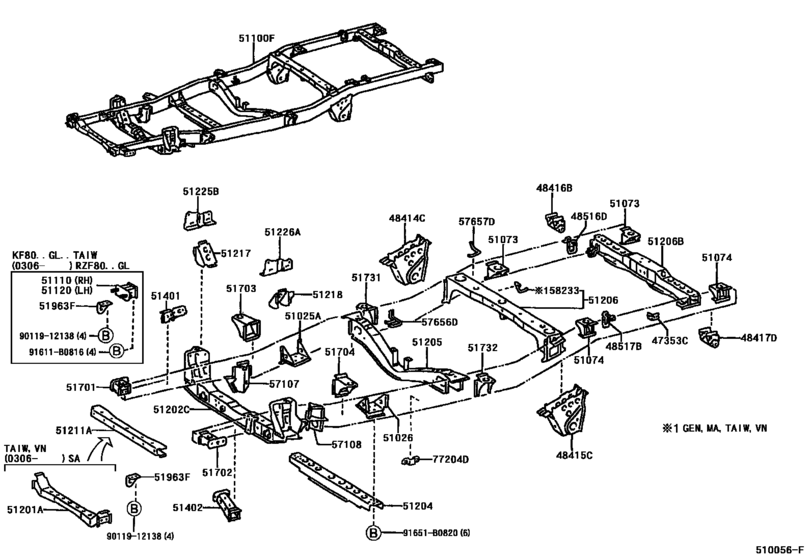

Frame ([12.1996 - ] (9612- )KF8#,LF61,80,81,82,RZF61,80,81,82,YF6 0,80) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- KF80
- grade
- DLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- MA
- DECK
- LUB
- CAB
- SRF
- Model
- UNSER
- From
- 04.1998
- To
- 03.2001
- Gear Shift Type
- 5F
- Vehicle Model
- UNSER
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47353C
|
47353C
47353-0B011 Bracket, Flexible Hose, No.3FLEXIBLE HOSE, NO.3 [12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80 |
47353-0B011 |
US $3.79 |
||
|
48414C
|
48414C
48404-0B010
Bracket, Spring, No.3 Rh
[12.1996 - 02.2003] KF82,LF82..RHD;KF60,80,LF60,80,RZF81 |
48404-0B010 |
— | ||
|
48415C
|
48415C
48407-0B010
Bracket, Spring, No.3 Lh
[12.1996 - 02.2003] KF82,LF82..RHD;KF60,80,LF60,80,RZF81 |
48407-0B010 |
— | ||
|
48416B
|
48416B
48405-0B010
Bracket, Spring, No.4 Rh
[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,RZF71,80,81,YF60,80 |
48405-0B010 |
— | ||
|
48417D
|
48417D
48405-0B010
Bracket, Spring, No.4 Rh
[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,RZF71,80,81,YF60,80 |
48405-0B010 |
— | ||
|
48516D
|
48516D
48505-0B010
Bracket Sub-Assy, Rear Shock Absorber, Upper Rh
[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80 |
48505-0B010 |
— | ||
|
48517B
|
48517B
48505-0B010
Bracket Sub-Assy, Rear Shock Absorber, Upper Rh
[12.1996 - 06.2003] KF82,LF82..RHD;KF60,80,LF6#,80,81,85,RZF80,81,84,85,YF60,80 |
48505-0B010 |
— | ||
|
51025A
|
51025A
51025-0B010
Bracket Sub-Assy, Frame No.3 Cross Member, Rh
[12.1996 - 06.2003] KF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,RZF71,80,81,YF60,80..MTM |
51025-0B010 |
— | ||
|
51026
|
51026
51026-0B010
Bracket Sub-Assy, Frame No.3 Cross Member, Lh
[12.1996 - 06.2003] KF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,RZF71,80,81,YF60,80..MTM |
51026-0B010 |
— | ||
|
51073
|
51073
51073-0B010
Bracket Sub-Assy, Rear Body Mounting, No.2 Rh
[12.1996 - 06.2003] KF82,LF82..RHD;KF80,LF61,80,81,85,RZF80,81,84,85,YF60,80 |
51073-0B010 |
— | ||
|
51074
|
51074
51073-0B010
Bracket Sub-Assy, Rear Body Mounting, No.2 Rh
[12.1996 - 06.2003] KF82,LF82..RHD;KF80,LF61,80,81,85,RZF80,81,84,85,YF60,80 |
51073-0B010 |
— | ||
|
51100F
|
51100F
51001-0B090
Frame Sub-Assy
[04.1998 - 12.2002] KF80..5F..MA |
51001-0B090 |
— | ||
|
51202C
|
51202C
51202-0B010
Crossmember Sub-Assy, Front Suspension, Lower
[12.1996 - 12.2002] KF60,7#,8#,LF60,7#,80,82,RZF71,81..RHD |
51202-0B010 |
— | ||
|
51204
|
51204
51203-0B010
Crossmember Sub-Assy, Frame, No.3
[12.1996 - 04.2001] KF80..5F..MA;KF80..GEN,PHL,VN;KF60,7#,82,LF6#,7#,80,81,82,YF60,80..FD,LUB,SD |
51203-0B010 |
— | ||
|
51205
|
51205
51204-0B011
Crossmember Sub-Assy, Frame, No.4
[04.1997 - 06.2003] KF82,LF82..RHD;KF60,80,LF6#,80,81,RZF80,81,YF60,80..GEN,MA,PHL,SA,VN |
51204-0B011 |
— | ||
|
51206
|
51206
51205-0B010
Crossmember Sub-Assy, Frame, No.5
[12.1996 - 02.2003] KF60,7#,8#,LF60,7#,80,82,RZF71,81..GEN,MA,VN |
51205-0B010 |
— | ||
|
51206B
|
51206B
51206-0B010
Crossmember Sub-Assy, Frame, No.6
[12.1996 - 02.2003] KF7#,8#,LF7#,80,82,RZF71,81..GEN,MA,VN |
51206-0B010 |
— | ||
|
51211A
|
51211A
51211-0B010
Crossmember, Frame, Front
[12.1996 - 12.2002] KF82,LF82..RHD;KF60,7#,80,LF60,7#,80,RZF71,81..GEN,MA,PHL |
51211-0B010 |
— | ||
|
51217
|
51217
51403-0B010
Reinforcement, Front Crossmember, Lower Rh
[07.1997 - 09.2000] KF60,7#,8#,LF6#,7#,80,81,82,RZF80,YF60,80 |
51403-0B010 |
— | ||
| replacement | |||||
|
51217
|
51217
51403-0B011
Reinforcement, Front Crossmember, Lower Rh
[07.1997 - 09.2000] KF60,7#,8#,LF6#,7#,80,81,82,RZF80,YF60,80 |
51403-0B011 |
— | ||
|
51217
|
51217
51403-0B011
Reinforcement, Front Crossmember, Lower Rh
[09.2000 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,72,80,81,RZF71,80,81,YF60,80 |
51403-0B011 |
— | ||
|
51218
|
51218
51218-0B010
Reinforcement, Front Crossmember, Lower Lh
[12.1996 - 09.2000] LF81,YF60,80..LHD;KF60,7#,8#,LF6#,7#,80,82 |
51218-0B010 |
— | ||
| replacement | |||||
|
51218
|
51218
51218-0B011
Reinforcement, Front Crossmember, Lower Lh
[12.1996 - 09.2000] LF81,YF60,80..LHD;KF60,7#,8#,LF6#,7#,80,82 |
51218-0B011 |
— | ||
|
51218
|
51218
51218-0B011
Reinforcement, Front Crossmember, Lower Lh
[09.2000 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,72,80,81,RZF71,80,81,YF60,80 |
51218-0B011 |
— | ||
|
51225B
|
51225B
51225-0B010 Bracket, Front Suspension Member, RhFRONT SUSPENSION MEMBER [12.1996 - 06.2003] KF82,LF82..RHD;LF81,YF60,80..LHD;KF60,7#,80,LF6#,7#,80,RZF71,81 |
51225-0B010 |
US $22.42 |
||
|
51226A
|
51226A
51226-0B010 Bracket, Front Suspension Member, LhFRONT SUSPENSION MEMBER, LH [12.1996 - 06.2003] KF82,LF82..RHD;LF81,YF60,80..LHD;KF60,7#,80,LF6#,7#,80,RZF71,81 |
51226-0B010 |
US $22.42 |
||
|
51401
|
51401
51401-0B010
Bracket Sub-Assy, Engine Front Mounting, Rh
[12.1996 - 02.2003] KF82..RHD;KF60,7#,80 |
51401-0B010 |
— | ||
|
51402
|
51402
51402-0B010
Bracket Sub-Assy, Engine Front Mounting, Lh
[12.1996 - 02.2003] KF82..RHD;KF60,7#,80 |
51402-0B010 |
— | ||
|
51701
|
51701
51701-0B010 Bracket Sub-Assy, Cab Mounting, No.1 RhCAB MOUNTING, NO.1 RH [12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80 |
51701-0B010 |
US $30.87 |
||
|
51702
|
51702
51702-0B010
Bracket Sub-Assy, Cab Mounting, No.1 Lh
[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80 |
51702-0B010 |
— | ||
|
51703
|
51703
51703-0B010
Bracket Sub-Assy, Cab Mounting, No.2, Rh
[12.1996 - 12.2000] KF60,7#,8#,LF6#,7#,8#,RZF71,8#,YF60,80 |
51703-0B010 |
— | ||
|
51704
|
51704
51703-0B010
Bracket Sub-Assy, Cab Mounting, No.2, Rh
[12.1996 - 12.2000] KF60,7#,8#,LF6#,7#,8#,RZF71,8#,YF60,80 |
51703-0B010 |
— | ||
|
51731
|
51731
51731-0B010
Bracket, Cab Rear Mounting, Rh
[12.1996 - 06.2003] KF82,LF82..RHD;KF7#,80,LF61,7#,80,81,85,RZF71,80,81,84,85,YF60,80 |
51731-0B010 |
— | ||
|
51732
|
51732
51731-0B010
Bracket, Cab Rear Mounting, Rh
[12.1996 - 06.2003] KF82,LF82..RHD;KF7#,80,LF61,7#,80,81,85,RZF71,80,81,84,85,YF60,80 |
51731-0B010 |
— | ||
|
51963F
|
51963F
51963-0B010
Hook, Transport
[12.1996 - 03.2001] KF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..(GEN,MA,VN) |
51963-0B010 |
— | ||
|
57107
|
57107
57107-0B010
Bracket Sub-Assy, Strut Bar, Rh
[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,RZF71,80,81,YF60,80 |
57107-0B010 |
— | ||
|
57108
|
57108
57108-0B010
Bracket Sub-Assy, Strut Bar, Lh
[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,RZF71,80,81,YF60,80 |
57108-0B010 |
— | ||
|
57656D
|
57656D
57656-38010 Bracket, Exhaust Pipe Mounting, No.1EXHAUST PIPE MOUNTING, NO.1 [04.1998 - 12.2002] KF80,LF80,RZF81..MA,PHL |
57656-38010 |
US $12.67 |
||
|
57657D
|
57657D
57657-38010 Bracket, Exhaust Pipe Mounting, No.2EXHAUST PIPE MOUNTING, NO.2 [04.1998 - 12.2002] KF80,LF80,RZF81..MA,PHL |
57657-38010 |
US $15.43 |
||
|
58233
|
58233
58233-0B010
Bracket, Exhaust Pipe Mounting
[12.1996 - 02.2003] KF60,7#,8#,LF60,7#,80,82,RZF71,81..GEN,MA,VN |
58233-0B010 |
— | ||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
9011912138
|
9011912138
90119-12138 New Genuine Part |
90119-12138 |
US $2.48 |
||
