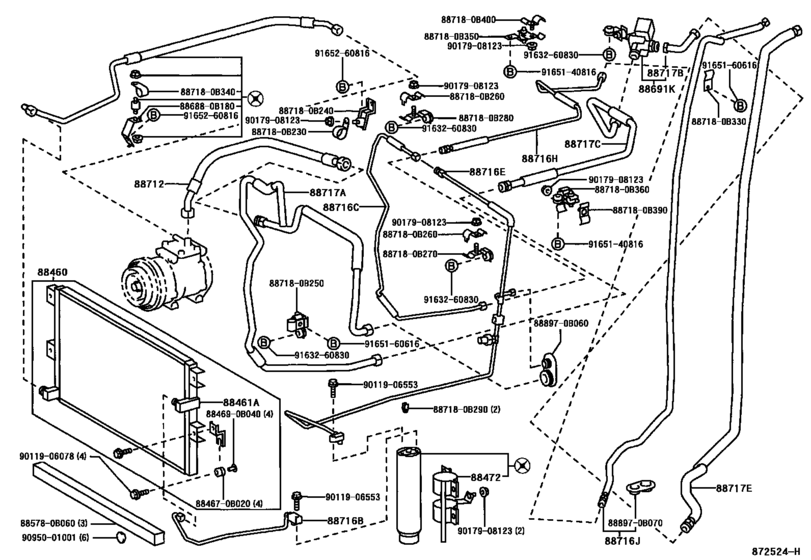

Heating & Air Conditioning - Cooler Piping ([04.1998 - 03.2001] DUAL(FOR MALAYSIA) (9804-0103)KF80..MA) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- KF80
- grade
- DLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- MA
- DECK
- LUB
- CAB
- SRF
- Model
- UNSER
- From
- 04.1998
- To
- 03.2001
- Gear Shift Type
- 5F
- Vehicle Model
- UNSER
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-0B060
Condenser Assy, Cooler
[04.1998 - 03.2001] KF80..5F..MA |
88460-0B060 |
— | ||
|
88461A
|
88461A
88461-0B030
Core, Cooler Condenser
[04.1998 - 12.2002] KF80..5F..MA |
88461-0B030 |
— | ||
|
88472
|
88472
88472-0B040
Bracket, Receiver Tank, No.1
[04.1998 - 03.2001] KF80,LF80..MA |
88472-0B040 |
— | ||
|
88712
|
88712
88712-0B090
Hose, Cooler Refrigerant Suction, No.1
[04.1998 - 12.2002] KF80..MA |
88712-0B090 |
— | ||
|
88716B
|
88716B
88716-0B400
Pipe, Cooler Refrigerant Liquid, B
[04.1998 - 03.2001] KF80..5F..MA |
88716-0B400 |
— | ||
|
88716E
|
88716E
88716-0B320
Pipe, Cooler Refrigerant Liquid, E
[04.1998 - 03.2001] KF80..DLX..MA |
88716-0B320 |
— | ||
|
88717A
|
88717A
88717-0B160
Pipe, Cooler Refrigerant Suction, A
[04.1998 - 03.2001] KF80..DLX..MA |
88717-0B160 |
— | ||
|
884670B020
|
884670B020
88467-0B020
Cushion, Cooler Condenser, No.1
|
88467-0B020 |
— | ||
|
884690B040
|
884690B040
88469-0B040
Switch, Pressure Control
|
88469-0B040 |
— | ||
|
885780B060
|
885780B060
88578-0B060
Paking, Cooler Air Duct
|
88578-0B060 |
— | ||
|
886880B180
|
886880B180
88688-0B180
Bracket, Cooler Diaphragm
|
88688-0B180 |
— | ||
|
887180B230
|
887180B230
88718-0B230
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B230 |
— | ||
|
887180B240
|
887180B240
88718-0B240
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B240 |
— | ||
|
887180B250
|
887180B250
88718-0B250
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B250 |
— | ||
|
887180B260
|
887180B260
88718-0B260
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B260 |
— | ||
|
887180B270
|
887180B270
88718-0B270
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B270 |
— | ||
|
887180B280
|
887180B280
88718-0B280
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B280 |
— | ||
|
887180B290
|
887180B290
88718-0B290
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B290 |
— | ||
|
887180B330
|
887180B330
88718-0B330
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B330 |
— | ||
|
887180B340
|
887180B340
88718-0B340
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B340 |
— | ||
|
887180B350
|
887180B350
88718-0B350
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B350 |
— | ||
|
887180B360
|
887180B360
88718-0B360
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B360 |
— | ||
|
887180B390
|
887180B390
88718-0B390
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B390 |
— | ||
|
887180B400
|
887180B400
88718-0B400
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B400 |
— | ||
|
888970B060
|
888970B060
88897-0B060
Valve, Cooler Magnet
|
88897-0B060 |
— | ||
|
888970B070
|
888970B070
88897-0B070
Valve, Cooler Magnet
|
88897-0B070 |
— | ||
|
9011906078
|
9011906078
90119-06078 New Genuine Part |
90119-06078 |
US $1.75 |
||
| replacement | |||||
|
9011906078
|
9011906078
90119-06330 Bolt |
90119-06330 |
US $1.43 |
||
|
9011906553
|
9011906553
90119-06553
New Genuine Part
|
90119-06553 |
— | ||
| replacement | |||||
|
9011906553
|
9011906553
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.43 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9095001001
|
9095001001
90950-01001 New Genuine Part |
90950-01001 |
US $4.54 |
||
|
9163260830
|
9163260830
91632-60830
New Genuine Part
|
91632-60830 |
— | ||
| replacement | |||||
|
9163260830
|
9163260830
91631-G0830 BOLT WWASHER |
91631-G0830 |
US $2.87 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.94 |
||
|
9165260816
|
9165260816
91652-60816 New Genuine Part |
91652-60816 |
US $1.51 |
||
