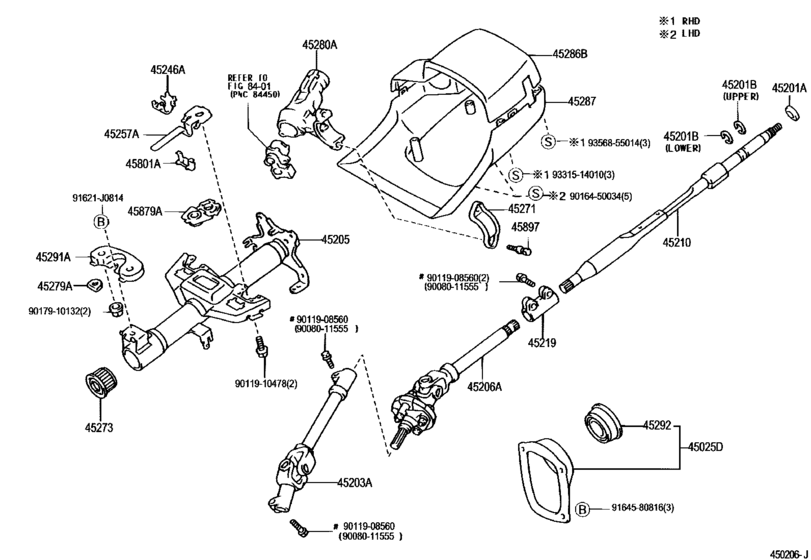

Steering Column & Shaft ([04.1998 - 03.2001] (9612-0001)GEN ; (9804-0103)MA ; (9810-0102)PHL) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- KF80
- grade
- DLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- MA
- DECK
- LUB
- CAB
- SRF
- Model
- UNSER
- From
- 04.1998
- To
- 03.2001
- Gear Shift Type
- 5F
- Vehicle Model
- UNSER
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-38010 Cover Sub-Assy, Steering Column Hole, No.1STEERING COLUMN HOLE, NO.1 [12.1996 - 09.1999] KF60,70,80,LF60,70,80..DLX,GL,STD |
45025-38010 |
US $43.24 |
||
|
45201A
|
45201A
90363-18005 Bearing(For Steering Main Shaft)[08.1997 - 09.1999] KF60,70,80,LF60,70,80..DLX,GL,STD |
90363-18005 |
from US $5.75 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80 T=1.20,LOWER |
90520-17042 |
from US $0.82 |
||
|
45201B
|
45201B
90520-17269 Ring, Shaft Snap(For Steering Main Shaft)[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80 T=1.20,UPPER |
90520-17269 |
US $2.15 |
||
|
45203A
|
45203A
45203-38050 Shaft, Steering Intermediate, No.2STEERING INTERMEDIATE, NO.2 [12.1996 - 12.2002] LF60,80..4F;KF80..STD..LHD;KF60,LF70..LUB,T2;KF70,80,LF80..(DLX,GL)..(GEN,MA,PHL,T AIW) W(POWER STEERING) |
45203-38050 |
US $182 |
||
|
45205
|
45205
45205-0B010
Tube Sub-Assy, Steering Column
[08.1997 - 03.2001] KF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD (L) |
45205-0B010 |
— | ||
|
45205
|
45205
45205-38010 Tube Sub-Assy, Steering ColumnSTEERING COLUMN [08.1997 - 03.2001] KF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD (J) |
45205-38010 |
US $90.27 |
||
|
45206A
|
45206A
45206-38040 Yoke Sub-Assy, Steering Sliding W/couplingSTEERING SLIDING W/COUPLING [12.1996 - 06.2003] KF60,7#,8#,LF60,7#,8#,RZF71,80,81,85,YF60,80..RHD |
45206-38040 |
US $278.10 |
||
|
45210
|
45210
45210-02060 Shaft Assy, Steering Main[08.1997 - 09.1999] KF60,70,80,LF60,70,80..RHD (L) |
45210-02060 |
US $125.22 |
||
|
45210
|
45210
45210-12480
Shaft Assy, Steering Main
[12.1996 - 02.2001] YF60,80..RHD;KF80,LF80..GLX;KF60,7#,8#,LF6#,7#,8#,RZF71,80,81,85..GEN,MA,SA (J) |
45210-12480 |
— | ||
|
45219
|
45219
45219-38020
Yoke, Steering Sliding
[12.1996 - 09.1999] KF60,70,80,LF60,70,80..DLX,GL,STD |
45219-38020 |
— | ||
|
45246A
|
45246A
45246-12110 Guide, Steering Energy Absorbing Plate[12.1996 - 09.1999] KF60,70,80,LF60,70,80..DLX,GL,STD |
45246-12110 |
US $3.06 |
||
|
45257A
|
45257A
45257-12070 Plate, Steering Column Energy Absorbing[12.1996 - 09.1999] KF60,70,80,LF60,70,80..DLX,GL,STD |
45257-12070 |
US $5.24 |
||
|
45271
|
45271
45271-16020 Clamp, Steering Column, Upper[12.1996 - 09.1999] KF60,70,80,LF60,70,80..DLX,GL,STD |
45271-16020 |
US $9.32 |
||
|
45273
|
45273
45273-38010 Bush, Steering Main Shaft[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80 |
45273-38010 |
from US $7.43 |
||
|
45279A
|
45279A
45279-12040 Attachment, Steering Column Tube, Lwr[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..GEN,MA,PHL,SA |
45279-12040 |
US $1.31 |
||
|
45280A
|
45280A
45280-0B010
Bracket Assy, Steering Column, Upper
[03.1999 - 02.2001] LF70,YF60,80..RHD;KF60,70,80,LF60,80..4F;KF60,80,RZF85..5F..TAIW;KF70,80,LF80..(DL X,GL)..(GEN,MA,PHL,VN) |
45280-0B010 |
— | ||
|
45280A
|
45280A
45280-38010 Bracket Assy, Steering Column, UpperSTEERING COLUMN, UPPER [12.1996 - 03.1999] KF80..5F..TAIW;KF60,70,80,LF60,70,80..(SCB,SRF)..(DLX,GL,STD) |
45280-38010 |
from US $208.21 |
||
|
45286B
|
45286B
45286-0B010
Cover, Steering Column, Upr
[12.1996 - 03.2001] KF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD |
45286-0B010 |
— | ||
|
45287
|
45287
45287-0B010
Cover, Steering Column, Lwr
[12.1996 - 03.2001] KF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD |
45287-0B010 |
— | ||
|
45291A
|
45291A
45291-50010 Support, Steering Column Tube[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..GEN,MA,PHL,SA |
45291-50010 |
US $15.29 |
||
|
45292
|
45292
45292-35070 Seal, Main Shaft Lower DustMAIN SHAFT LOWER DUST [12.1996 - 09.1999] KF60,70,80,LF60,70,80..DLX,GL,STD |
45292-35070 |
from US $17.65 |
||
|
45801A
|
45801A
45875-12010 Support Sub-Assy, Steering Post[12.1996 - 09.1999] KF60,70,80,LF60,70,80..DLX,GL,STD |
45875-12010 |
US $1.31 |
||
|
45879A
|
45879A
45879-12050 Capsule, Break Away[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80 |
45879-12050 |
US $13.83 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[12.1996 - 09.1999] KF60,70,80,LF60,70,80..DLX,GL,STD |
45897-12020 |
from US $2.63 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
|
9008011555
|
9008011555
90080-11555 New Genuine Part |
90080-11555 |
US $4.47 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.13 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 New Genuine Part |
90080-11555 |
US $4.47 |
||
|
9011910478
|
9011910478
90119-10478
New Genuine Part
|
90119-10478 |
— | ||
|
9016450034
|
9016450034
90164-50034 Direct |
90164-50034 |
US $1.25 |
||
| replacement | |||||
|
9016450034
|
9016450034
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9017910132
|
9017910132
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9164580816
|
9164580816
91645-80816
New Genuine Part
|
91645-80816 |
— | ||
| replacement | |||||
|
9164580816
|
9164580816
91551-80810 New Genuine Part |
91551-80810 |
US $1.61 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.76 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
