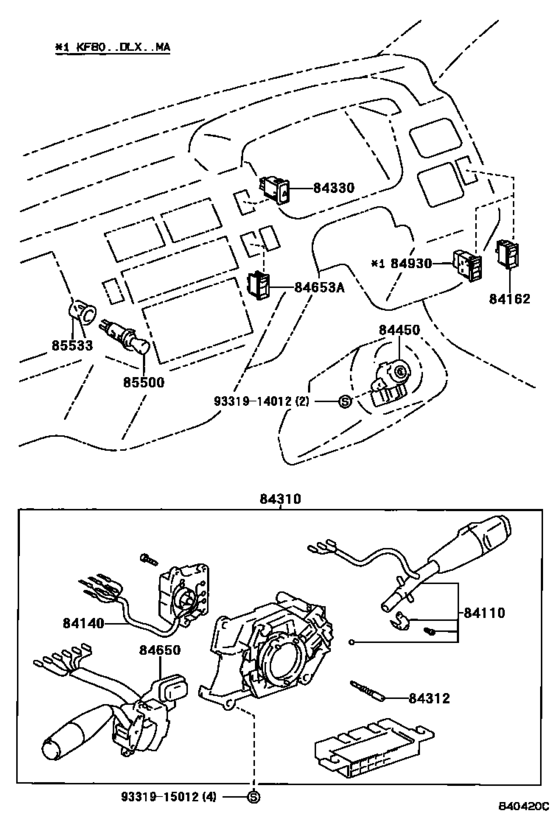

Switch & Relay & Computer ([01.2000 - 03.2001] INSTRUMENT PANEL & COMBINATION SW (9612-0001)RHD ; (0001-0103)MA) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- KF80
- grade
- DLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- MA
- DECK
- LUB
- CAB
- SRF
- Model
- UNSER
- From
- 04.1998
- To
- 03.2001
- Gear Shift Type
- 5F
- Vehicle Model
- UNSER
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-09110
Switch Assy, Light Control, No.1
[12.1996 - 03.2001] KF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD |
84112-09110 |
— | ||
|
84140
|
84140
84140-0B010
Switch Assy, Headlamp Dimmer
[12.1996 - 03.2001] KF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD |
84140-0B010 |
— | ||
|
84310
|
84310
84310-0B020 Switch Assy, Turn SignalTURN SIGNAL [12.1996 - 03.2001] KF80..DLX..MA;KF70,80,LF80..GL..RHD |
84310-0B020 |
US $74.72 |
||
|
84312
|
84312
84312-0B010
Plate, Horn Contact
[12.1996 - 03.2001] KF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD |
84312-0B010 |
— | ||
|
84330
|
84330
84332-0B020
Switch Assy, Hazard Warning Signal
[10.1998 - 08.2001] KF60,7#,8#,LF6#,7#,8#,RZF71,80,81,85,YF60,80..GEN,MA,PHL,SA |
84332-0B020 |
— | ||
|
84330
|
84330
84332-89115
Switch Assy, Hazard Warning Signal
[12.1996 - 10.1998] KF60,70,80,LF60,70,80 |
84332-89115 |
— | ||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80 |
84450-12200 |
from US $54.43 |
||
|
84650
|
84650
84652-0B020
Switch Assy, Windshield Wiper
[12.1996 - 03.2001] KF80..DLX..MA;KF70,80,LF80..GL..RHD |
84652-0B020 |
— | ||
|
84653A
|
84653A
84653-38010 Switch, Rear WiperREAR WIPER [12.1996 - 06.2003] KF80..DLX..MA;LF81,85,YF80..LHD;KF7#,8#,LF80,82,RZF71,81..GL..RHD |
84653-38010 |
US $57.51 |
||
|
84930
|
84930
84930-28050 Switch Assy, Door Control[04.1998 - 03.2001] KF80..DLX..MA |
84930-28050 |
US $57.51 |
||
|
85500
|
85500
85500-38010
Lighter Assy, Cigarette
[12.1996 - 03.2001] KF80..STD..LHD;KF60,LF70,RZF81..(LUB,T2)..(DLX,GLX,STD);KF70,80,LF80,RZF84,85..(DL X,GL,GLX)..(GEN,MA,PHL,TAIW,VN) |
85500-38010 |
— | ||
|
85533
|
85533
85533-30040 Lens, Cigarette Lighter Indicator[12.1996 - 06.2003] KF80..STD..LHD;KF70,80,LF80,RZF81..DLX,GL,GLX;KF60,72,82,LF61,7#,81,82,85,RZF71,80 ,84,85,YF60,80..(LUB,T2)..(GEN,SA,TAIW) |
85533-30040 |
US $7.43 |
||
| replacement | |||||
|
85533
|
85533
85533-30041 Lens, Cigarette Lighter IndicatorCIGARETTE LIGHTER INDICATOR [12.1996 - 06.2003] KF80..STD..LHD;KF70,80,LF80,RZF81..DLX,GL,GLX;KF60,72,82,LF61,7#,81,82,85,RZF71,80 ,84,85,YF60,80..(LUB,T2)..(GEN,SA,TAIW) |
85533-30041 |
US $6.09 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.25 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
