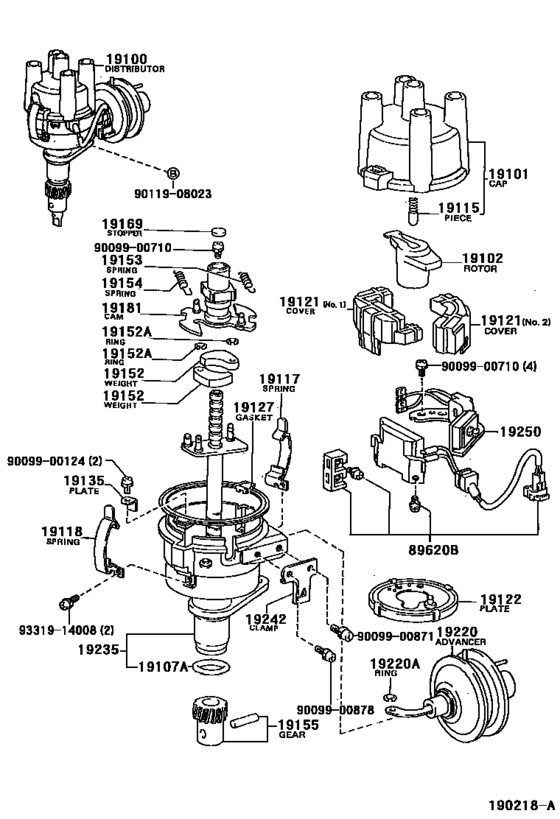

Distributor ([12.1996 - ] TYPE B (9612- )7K) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1996 - 2000
- Sales region
- General
- Frame
- KF80
- grade
- DLX
- ENGINE
- 7K
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- DECK
- LUB
- CAB
- SRF
- Model
- KIJANG
- From
- 12.1996
- To
- 01.2000
- Gear Shift Type
- 5F
- Vehicle Model
- KIJANG
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19060-13250
Distributor Assy
[12.1996 - 08.2002] 7K..KF80..CBU TYPE B:REFER TO ILLUSTRATION |
19060-13250 |
— | ||
|
19100
|
19100
19100-13520
Distributor Assy
[12.1996 - 08.2002] 7K..KF60,70,80 TYPE A:REFER TO ILLUSTRATION |
19100-13520 |
— | ||
|
19101
|
19101
19101-13010 Cap Sub-Assy, Distributor[12.1996 - 08.2002] 7K..KF80..CBU TYPE B:REFER TO ILLUSTRATION |
19101-13010 |
from US $27.18 |
||
|
19101
|
19101
19101-71020 Cap Sub-Assy, Distributor[12.1996 - 08.2002] 7K..KF60,70,80 TYPE A:REFER TO ILLUSTRATION |
19101-71020 |
US $33.70 |
||
|
19102
|
19102
19102-33012 Rotor Sub-Assy, Distributor[12.1996 - 08.2002] 7K..KF60,70,80 |
19102-33012 |
from US $9.93 |
||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[12.1996 - 02.2003] 7KE..KF82..RHD;7K#..KF60,7#,80 |
90099-14090 |
from US $2.80 |
||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[12.1996 - 08.2002] 7K..KF60,70,80 TYPE A:REFER TO ILLUSTRATION |
19115-50010 |
— | ||
|
19115
|
19115
19115-88280 Piece, Distributor Cap, Center[12.1996 - 02.2003] 7KE..KF60,72,80;7K#..KF8#..CBU..RHD TYPE B:REFER TO ILLUSTRATION |
19115-88280 |
from US $1.31 |
||
|
19117
|
19117
19117-24080
Spring, Distributor Cap, A
[12.1996 - 08.2002] 7K..KF60,70,80 |
19117-24080 |
— | ||
|
19118
|
19118
19117-24080
Spring, Distributor Cap, A
[12.1996 - 08.2002] 7K..KF60,70,80 |
19117-24080 |
— | ||
|
19121
|
19121
19121-88260
Cover, Dust Proof
[12.1996 - 08.2002] 7K..KF80..CBU NO.2 |
19121-88260 |
— | ||
|
19121
|
19121
19121-88261
Cover, Dust Proof
[12.1996 - 08.2002] 7K..KF80..CBU NO.1 |
19121-88261 |
— | ||
|
19122
|
19122
19122-13070
Plate, Stationary, Distributor
[12.1996 - 08.2002] 7K..KF60,70,80 TYPE A:REFER TO ILLUSTRATION |
19122-13070 |
— | ||
|
19122
|
19122
19122-88263
Plate, Stationary, Distributor
[12.1996 - 08.2002] 7K..KF80..CBU TYPE B:REFER TO ILLUSTRATION |
19122-88263 |
— | ||
|
19127
|
19127
19127-15010
Packing, Dust Proof
[12.1996 - 08.2002] 7K..KF60,70,80 |
19127-15010 |
— | ||
|
19135
|
19135
19135-24080
Plate, Holder
[12.1996 - 08.2002] 7K..KF60,70,80 |
19135-24080 |
— | ||
|
19152
|
19152
19152-63010
Weight, Governor
[12.1996 - 08.2002] 7K..KF60,70,80 |
19152-63010 |
— | ||
|
19152A
|
19152A
90099-07122
Ring, Snap(For Governor Weight)
[12.1996 - 08.2002] 7K..KF60,70,80 |
90099-07122 |
— | ||
|
19153
|
19153
19153-13450 Spring, Governor, AGOVERNOR, A [12.1996 - 08.2002] 7K..KF60,70,80 TYPE A:REFER TO ILLUSTRATION |
19153-13450 |
US $4.95 |
||
|
19153
|
19153
19153-13460 Spring, Governor, A[12.1996 - 08.2002] 7K..KF80..CBU TYPE B:REFER TO ILLUSTRATION |
19153-13460 |
US $4.95 |
||
|
19154
|
19154
19154-13450 Spring, Governor, BGOVERNOR, B [12.1996 - 08.2002] 7K..KF60,70,80 TYPE A:REFER TO ILLUSTRATION |
19154-13450 |
US $4.95 |
||
|
19154
|
19154
19154-13460 Spring, Governor, B[12.1996 - 08.2002] 7K..KF80..CBU TYPE B:REFER TO ILLUSTRATION |
19154-13460 |
US $4.95 |
||
|
19155
|
19155
19195-13060 Gear, Spiral, Distributor[12.1996 - 02.2003] 7KE..KF82..RHD;7K#..KF60,7#,80 |
19195-13060 |
US $42.66 |
||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[12.1996 - 08.2002] 7K..KF60,70,80 |
19169-63011 |
— | ||
|
19181
|
19181
19181-13110
Rotor, Distributor, Signal
[12.1996 - 08.2002] 7K..KF80..CBU |
19181-13110 |
— | ||
|
19220
|
19220
19220-13510 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [12.1996 - 08.2002] 7K..KF80..CBU TYPE B:REFER TO ILLUSTRATION |
19220-13510 |
US $94.64 |
||
|
19220
|
19220
19220-13520 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [12.1996 - 08.2002] 7K..KF60,70,80 TYPE A:REFER TO ILLUSTRATION |
19220-13520 |
US $94.64 |
||
|
19220A
|
19220A
90099-07109
Ring, Snap(For Governor Weight)
[12.1996 - 08.2002] 7K..KF60,70,80 |
90099-07109 |
— | ||
|
19235
|
19235
19235-13030 Housing, Distributor[12.1996 - 08.2002] 7K..KF80..CBU TYPE B:REFER TO ILLUSTRATION |
19235-13030 |
US $189.28 |
||
|
19235
|
19235
19235-13370 Housing, Distributor[12.1996 - 08.2002] 7K..KF60,70,80 TYPE A:REFER TO ILLUSTRATION |
19235-13370 |
US $190.74 |
||
|
19242
|
19242
19242-13080 Clamp, Cord[12.1996 - 08.2002] 7K..KF80..CBU |
19242-13080 |
US $14.27 |
||
|
19250
|
19250
19250-13030 Generator Assy, Signal[12.1996 - 08.2002] 7K..KF80..CBU |
19250-13030 |
US $163.07 |
||
|
89620B
|
89620B
89620-27031
Igniter
[12.1996 - 08.2002] KF80..CBU..GEN |
89620-27031 |
— | ||
|
9009900124
|
9009900124
90099-00124
New Genuine Part
|
90099-00124 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900871
|
9009900871
90099-00871
New Genuine Part
|
90099-00871 |
— | ||
|
9009900878
|
9009900878
90099-00878
New Genuine Part
|
90099-00878 |
— | ||
|
9011908023
|
9011908023
90119-08023 BOLT |
90119-08023 |
US $2.48 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.43 |
