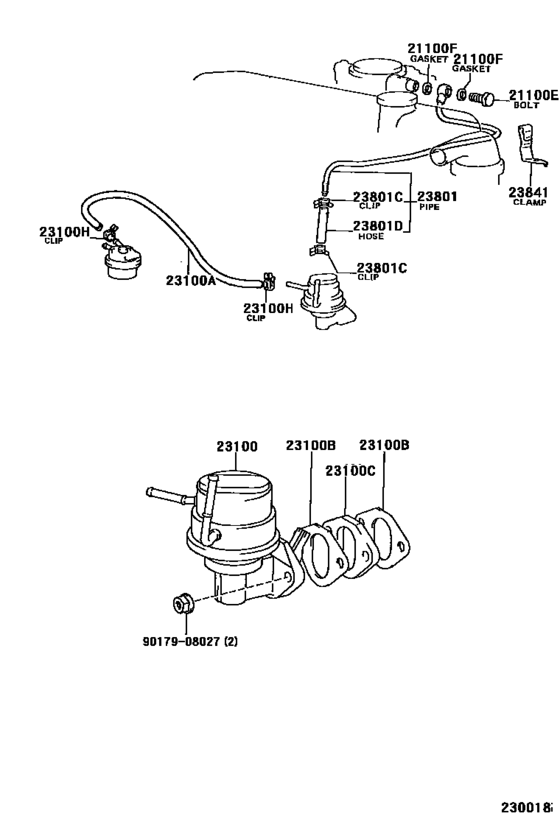

Fuel Pump & Pipe ([12.1996 - ] (9612- )7K) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1996 - 2000
- Sales region
- General
- Frame
- KF80
- grade
- DLX
- ENGINE
- 7K
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- DECK
- LUB
- CAB
- SRF
- Model
- KIJANG
- From
- 12.1996
- To
- 01.2000
- Gear Shift Type
- 5F
- Vehicle Model
- KIJANG
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21100E
|
21100E
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[12.1996 - 08.2002] 7K..KF60,70,80 |
90401-12097 |
from US $2.94 |
||
|
21100F
|
21100F
90430-12005 Gasket(For Water Hole)[12.1996 - 08.2002] 7K..KF60,70,80 |
90430-12005 |
from US $0.68 |
||
|
23100
|
23100
23100-13140 Pump Assy, FuelFUEL [12.1996 - 08.2002] 7K..KF60,70,80 |
23100-13140 |
from US $83.11 |
||
|
23100A
|
23100A
95333-06030
Hose, Fuel
[12.1996 - 08.2002] 7K..KF60,70,80 |
95333-06030 |
— | ||
| replacement | |||||
|
23100A
|
23100A
95338-06030 HOSE, FUEL[12.1996 - 08.2002] 7K..KF60,70,80 |
95338-06030 |
from US $10.39 |
||
|
23100B
|
23100B
90080-92015
Gasket, Fuel Pump
[12.1996 - 08.2002] 7K..KF60,70,80 |
90080-92015 |
— | ||
|
23100C
|
23100C
90923-06015 Insulator, Cylinder Block Side Cover[12.1996 - 08.2002] 7K..KF60,70,80 |
90923-06015 |
US $4.89 |
||
|
23100H
|
23100H
96132-51100 Clip (For Hose)[12.1996 - 08.2002] 7K..KF60,70,80 |
96132-51100 |
from US $1.42 |
||
|
23801
|
23801
23801-13150 Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1[12.1996 - 08.2002] 7K..KF60,70,80 |
23801-13150 |
US $43.53 |
||
|
23801C
|
23801C
96132-30600
Clip(For Actuator Hose)
[12.1996 - 04.2002] 7K..KF60,70,80 |
96132-30600 |
— | ||
| replacement | |||||
|
23801C
|
23801C
96132-51100 Clip (For Hose)[12.1996 - 04.2002] 7K..KF60,70,80 |
96132-51100 |
from US $1.42 |
||
|
23801D
|
23801D
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[12.1996 - 08.2002] 7K..KF60,70,80 *H,L=180 |
95333-06020 |
— | ||
| replacement | |||||
|
23801D
|
23801D
95337-06020 Hose, Differential Pressure Control[12.1996 - 08.2002] 7K..KF60,70,80 *H,L=180 |
95337-06020 |
from US $10.21 |
||
|
23841
|
23841
23841-13020 Clamp, Fuel Pipe(Hose), No.1[12.1996 - 08.2002] 7K..KF60,70,80 |
23841-13020 |
US $6.84 |
||
|
9017908027
|
9017908027
90179-08027 New Genuine Part |
90179-08027 |
US $1.75 |
||
