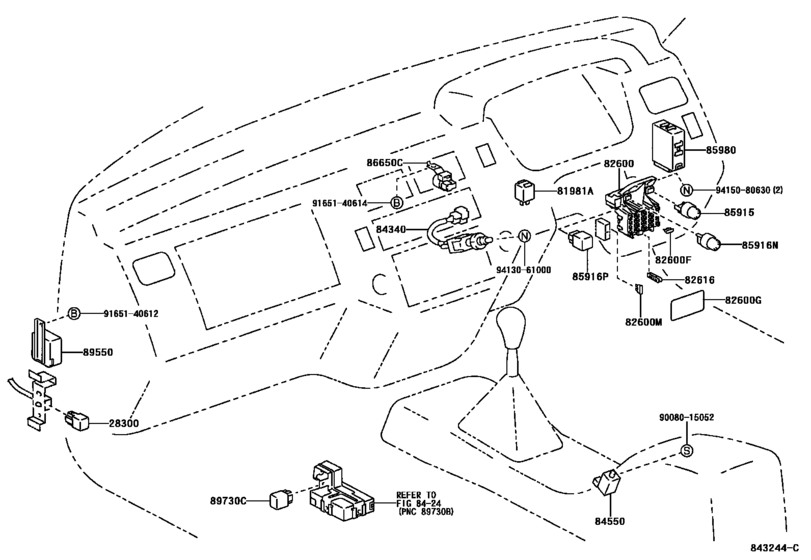

Switch & Relay & Computer ([12.1996 - 01.2000] COWL (9612-0001)GEN ; (0001- )KF60,70,80,LF60,72,8 0,82..GEN) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1996 - 2000
- Sales region
- General
- Frame
- KF80
- grade
- DLX
- ENGINE
- 7K
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- DECK
- LUB
- CAB
- SRF
- Model
- KIJANG
- From
- 12.1996
- To
- 01.2000
- Gear Shift Type
- 5F
- Vehicle Model
- KIJANG
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81981A
|
81981A
81981-02010
Flasher Assy, Turn Signal
[01.1998 - 02.2003] KF82,LF82..RHD;KF60,7#,80,LF60,7#,80,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN |
81981-02010 |
— | ||
|
81981A
|
81981A
81981-0A010
Flasher, Turn Signal
[12.1996 - 01.1998] KF60,70,80,LF60,70,80 |
81981-0A010 |
— | ||
|
82600
|
82600
82600-0B010
Block Assy, Fuse
[12.1996 - 08.2002] KF60,70,80,LF60,7#,80,82..GEN |
82600-0B010 |
— | ||
|
82600F
|
82600F
90982-09002 Fusible Link[12.1996 - 03.2001] KF60,70,80,LF60,7#,80,82..RHD 10A |
90982-09002 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[12.1996 - 03.2001] KF60,70,80,LF60,7#,80,82..RHD 15A |
90982-09003 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[12.1996 - 03.2001] KF60,70,80,LF60,7#,80,82..RHD 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[12.1996 - 03.2001] KF60,70,80,LF60,7#,80,82..RHD 7.5A |
90982-09005 |
from US $0.99 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[12.1996 - 03.2001] KF60,70,80,LF60,80..4F;KF7#,8#,LF70,80,RZF71,81..(DLX,GL)..RHD 5A,MINI FUSE |
90982-09007 |
from US $0.55 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[12.1996 - 08.2002] LF85..LHD;KF60,70,80,LF60,80..4F;KF7#,8#,LF70,80,RZF71,81..(DLX,GL)..RHD 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[12.1996 - 08.2002] KF60,70,80,LF60,80..4F;KF7#,8#,LF70,80,RZF71,81..(DLX,GL)..RHD 10A,MINI FUSE |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[12.1996 - 08.2002] LF85..LHD;KF60,70,80,LF60,80..4F;KF7#,8#,LF70,80,RZF71,81..(DLX,GL)..RHD 15A,MINI FUSE |
90982-09010 |
from US $0.49 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[12.1996 - 08.2002] KF60,70,80,LF60,80..4F;KF7#,8#,LF70,80,RZF71,81..(DLX,GL)..RHD 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[12.1996 - 03.2001] KF60,70,80,LF60,80..4F;KF7#,8#,LF70,80,RZF71,81..(DLX,GL)..RHD 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82600G
|
82600G
82683-0B010
Plate, Caution(For Fuse)
[12.1996 - 01.2000] KF60,70,80,LF60,70,80..GEN |
82683-0B010 |
— | ||
|
82600M
|
82600M
90982-10001 Instrument Panel Fusible Link[12.1996 - 08.2002] KF60,7#,8#,LF60,7#,80,82,RZF71,81..RHD 30A |
90982-10001 |
from US $3.12 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[12.1996 - 08.2002] KF60,7#,8#,LF60,7#,80,82,RZF71,81..RHD |
82616-12010 |
US $3.40 |
||
|
84340
|
84340
84340-04010
Switch Assy, Stop Lamp
[05.1999 - 03.2001] KF60,7#,8#,LF60,7#,80,82,RZF71,81..GEN,MA,PHL THAILAND MATSUSHITA |
84340-04010 |
— | ||
|
84340
|
84340
84340-32050 Switch Assy, Stop Lamp[12.1996 - 08.1998] KF60,70,80,LF60,70,80 |
84340-32050 |
from US $18.82 |
||
|
84340
|
84340
84340-YE010
Switch Assy, Stop Lamp
[08.1998 - 05.1999] KF60,70,80,LF60,70,80..GEN,MA,PHL THAILAND MATSUSHITA |
84340-YE010 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-04010
Switch Assy, Stop Lamp
[08.1998 - 05.1999] KF60,70,80,LF60,70,80..GEN,MA,PHL THAILAND MATSUSHITA |
84340-04010 |
— | ||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80 |
84550-16060 |
from US $19.32 |
||
|
85916N
|
85916N
90987-01003 Relay, Fuel Lid Opener[12.1996 - 01.2000] KF60,70,80,LF60,70,80..GEN |
90987-01003 |
from US $35.65 |
||
|
85916P
|
85916P
90987-02006 Relay[12.1996 - 03.2001] KF70,80..4F;KF80..STD..LHD;KF60,LF60,80,RZF84..4F,4FC;KF60,LF70,RZF81..(LUB,T2)..( DLX,GLX,STD);KF70,80,LF80,RZF85..(DLX,GL,GLX)..(GEN,MA,PHL,TAIW,VN) |
90987-02006 |
from US $26.75 |
||
|
89550
|
89550
89550-38070
Computer Assy, Emission Control
[12.1996 - 01.2000] KF60,70,80..GEN |
89550-38070 |
— | ||
|
9008015052
|
9008015052
90080-15052 New Genuine Part |
90080-15052 |
US $0.73 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9413061000
|
9413061000
94130-61000 Nut(For Clutch Pedal Stopper) |
94130-61000 |
from US $0.76 |
||
|
9415080630
|
9415080630
94150-80630 New Genuine Part |
94150-80630 |
US $1.08 |
||
