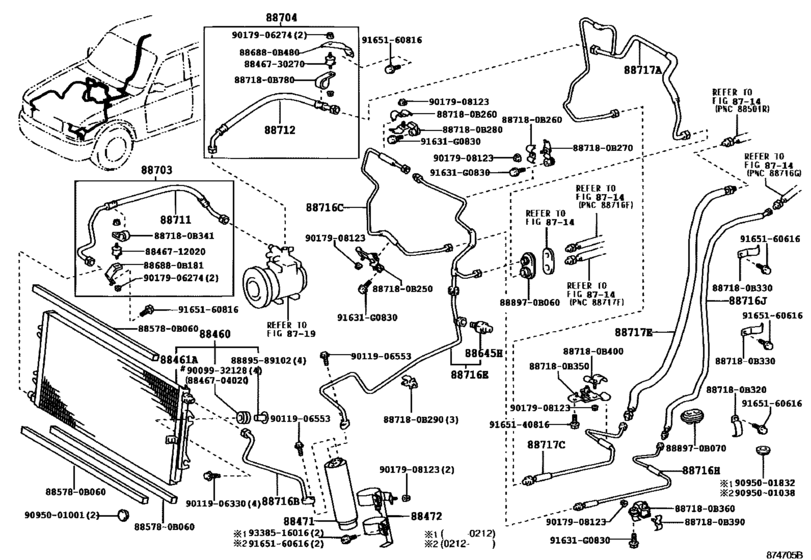

Heating & Air Conditioning - Cooler Piping ([03.2001 - ] DUAL AIR CONDITIONER (0103- )KF80..5F..MA) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1998 - 2005
- Sales region
- General
- Frame
- KF80
- grade
- GL
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- MA
- DECK
- LUB
- CAB
- SRF
- Model
- UNSER
- From
- 04.1998
- To
- 03.2005
- Gear Shift Type
- 5F
- Vehicle Model
- UNSER
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-0B060
Condenser Assy, Cooler
[04.1998 - 03.2001] KF80..5F..MA |
88460-0B060 |
— | ||
|
88460
|
88460
88460-0B061
Condenser Assy, Cooler
[03.2001 - 12.2002] KF80..5F..MA |
88460-0B061 |
— | ||
|
88461A
|
88461A
88461-0B030
Core, Cooler Condenser
[04.1998 - 12.2002] KF80..5F..MA |
88461-0B030 |
— | ||
|
88471
|
88471
88471-28100 Tank, Receiver Air Conditioner[03.2001 - 08.2002] LF60;LF80..MA;LF85..LHD;KF60,72,8#,LF72,82,RZF71,81,84,85..(LUB,T2)..CBU..(GEN,MA, TAIW,VN) |
88471-28100 |
US $95.12 |
||
|
88472
|
88472
88472-0B040
Bracket, Receiver Tank, No.1
[04.1998 - 03.2001] KF80,LF80..MA |
88472-0B040 |
— | ||
|
88472
|
88472
88472-0B041
Bracket, Receiver Tank, No.1
[03.2001 - 12.2002] KF80,LF80..MA |
88472-0B041 |
— | ||
|
88645H
|
88645H
88645-34010 Switch, Pressure[03.2001 - 08.2002] LF80..MA;KF80..GLX;KF80,LF60..GEN,MA,TAIW,VN;KF60,72,82,LF82,RZF71,81,84,85..(LUB, T2)..(GL,STD)..(GEN,TAIW) |
88645-34010 |
from US $32.78 |
||
| replacement | |||||
|
88645H
|
88645H
88645-04040 Switch, Pressure[03.2001 - 08.2002] LF80..MA;KF80..GLX;KF80,LF60..GEN,MA,TAIW,VN;KF60,72,82,LF82,RZF71,81,84,85..(LUB, T2)..(GL,STD)..(GEN,TAIW) |
88645-04040 |
US $120.41 |
||
|
88703
|
88703
88703-0B091
Hose Sub-Assy, Discharge
[12.2002 - 03.2005] KF80..5F..MA |
88703-0B091 |
— | ||
|
88704
|
88704
88704-0B240
Hose Sub-Assy, Suction
[12.2002 - 03.2005] KF80..MA |
88704-0B240 |
— | ||
|
88711
|
88711
88711-0B160
Hose, Cooler Refrigerant Discharge, No.1
[03.2001 - 12.2002] KF80..5F..MA |
88711-0B160 |
— | ||
|
88712
|
88712
88712-0B090
Hose, Cooler Refrigerant Suction, No.1
[04.1998 - 12.2002] KF80..MA |
88712-0B090 |
— | ||
|
88716B
|
88716B
88716-0B400
Pipe, Cooler Refrigerant Liquid, B
[04.1998 - 03.2001] KF80..5F..MA |
88716-0B400 |
— | ||
|
88716B
|
88716B
88716-0B401
Pipe, Cooler Refrigerant Liquid, B
[03.2001 - 12.2002] KF80..5F..MA |
88716-0B401 |
— | ||
|
88716B
|
88716B
88726-0B180
Pipe, Cooler Refrigerant Liquid, B
[12.2002 - 03.2005] KF80..5F..MA |
88726-0B180 |
— | ||
|
88716C
|
88716C
88716-0B360
Pipe, Cooler Refrigerant Liquid, C
[04.1998 - 12.2002] KF80..GL..MA |
88716-0B360 |
— | ||
|
88716E
|
88716E
88716-0B330
Pipe, Cooler Refrigerant Liquid, E
[04.1998 - 03.2001] KF80..GL..MA |
88716-0B330 |
— | ||
|
88716E
|
88716E
88716-0B331
Pipe, Cooler Refrigerant Liquid, E
[03.2001 - 12.2002] KF80..MA |
88716-0B331 |
— | ||
|
88716E
|
88716E
88726-0B200
Pipe, Cooler Refrigerant Liquid, E
[12.2002 - 03.2005] KF80..MA |
88726-0B200 |
— | ||
|
88716H
|
88716H
88716-0B430
Pipe, Cooler Refrigerant Liquid, H
[04.1998 - 03.2001] KF80,LF80..GL..MA |
88716-0B430 |
— | ||
|
88716H
|
88716H
88726-0B090
Pipe, Cooler Refrigerant Liquid, H
[03.2001 - 12.2002] KF80,LF80..MA |
88726-0B090 |
— | ||
|
88716J
|
88716J
88716-0B420
Pipe, Cooler Refrigerant Liquid, J
[04.1998 - 12.2002] KF80,LF80..GL..MA |
88716-0B420 |
— | ||
|
88717A
|
88717A
88717-0B140
Pipe, Cooler Refrigerant Suction, A
[04.1998 - 03.2001] KF80..GL..MA |
88717-0B140 |
— | ||
|
88717A
|
88717A
88717-0B460
Pipe, Cooler Refrigerant Suction, A
[03.2001 - 12.2002] KF80..MA |
88717-0B460 |
— | ||
|
88717C
|
88717C
88717-0B180
Pipe, Cooler Refrigerant Suction, C
[04.1998 - 03.2001] KF80,LF80..GL..MA |
88717-0B180 |
— | ||
|
88717C
|
88717C
88717-0B181
Pipe, Cooler Refrigerant Suction, C
[03.2001 - 12.2002] KF80,LF80..MA |
88717-0B181 |
— | ||
|
88717E
|
88717E
88717-0B170
Pipe, Cooler Refrigerant Suction, E
[04.1998 - 12.2002] KF80,LF80..GL..MA |
88717-0B170 |
— | ||
|
91631G0830
|
91631G0830
91631-G0830 BOLT WWASHER |
91631-G0830 |
US $2.87 |
||
|
885780B060
|
885780B060
88578-0B060
Paking, Cooler Air Duct
|
88578-0B060 |
— | ||
|
886880B181
|
886880B181
88688-0B181
Bracket, Cooler Diaphragm
|
88688-0B181 |
— | ||
|
886880B480
|
886880B480
88688-0B480
Bracket, Cooler Diaphragm
|
88688-0B480 |
— | ||
|
887180B250
|
887180B250
88718-0B250
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B250 |
— | ||
|
887180B260
|
887180B260
88718-0B260
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B260 |
— | ||
|
887180B270
|
887180B270
88718-0B270
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B270 |
— | ||
|
887180B280
|
887180B280
88718-0B280
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B280 |
— | ||
|
887180B290
|
887180B290
88718-0B290
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B290 |
— | ||
|
887180B320
|
887180B320
88718-0B320
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B320 |
— | ||
|
887180B330
|
887180B330
88718-0B330
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B330 |
— | ||
|
887180B341
|
887180B341
88718-0B341
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B341 |
— | ||
|
887180B350
|
887180B350
88718-0B350
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B350 |
— | ||
|
887180B360
|
887180B360
88718-0B360
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B360 |
— | ||
|
887180B390
|
887180B390
88718-0B390
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B390 |
— | ||
|
887180B400
|
887180B400
88718-0B400
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B400 |
— | ||
|
887180B780
|
887180B780
88718-0B780
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B780 |
— | ||
|
888970B060
|
888970B060
88897-0B060
Valve, Cooler Magnet
|
88897-0B060 |
— | ||
|
888970B070
|
888970B070
88897-0B070
Valve, Cooler Magnet
|
88897-0B070 |
— | ||
|
8846704020
|
8846704020
88467-04020
Cushion, Cooler Condenser, No.1
|
88467-04020 |
— | ||
|
8846712020
|
8846712020
88467-12020
Cushion, Cooler Condenser, No.1
|
88467-12020 |
— | ||
|
8846730270
|
8846730270
88467-30270 Cushion, Cooler Condenser, No.1 |
88467-30270 |
from US $1.75 |
||
|
8889589102
|
8889589102
88895-89102 Bush |
88895-89102 |
US $1.67 |
||
|
9009932128
|
9009932128
90099-32128 New Genuine Part |
90099-32128 |
US $2.61 |
||
|
9011906330
|
9011906330
90119-06330 Bolt |
90119-06330 |
US $1.43 |
||
|
9011906553
|
9011906553
90119-06553
New Genuine Part
|
90119-06553 |
— | ||
| replacement | |||||
|
9011906553
|
9011906553
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.43 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9095001001
|
9095001001
90950-01001 New Genuine Part |
90950-01001 |
US $4.54 |
||
|
9095001038
|
9095001038
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.84 |
||
|
9095001832
|
9095001832
90950-01832 Sub-Sheet, Front Door Service Hole |
90950-01832 |
from US $1.97 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.94 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.43 |
||
