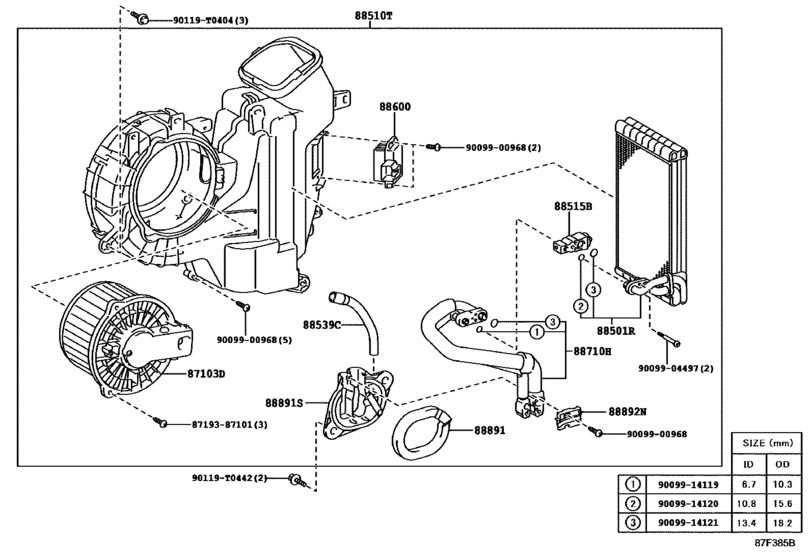

Heating & Air Conditioning - Cooler Unit ([11.2015 - ] REAR AUTO COOLER (1511- )24G,27G..GCC ; (1511- )20G,24,24G, 24V,28E,28G,28V..MA,PHL,SA,TH,VN ; (1511- )20Q,20 V,24Q,24V,24Z,27SRV,27V,27Z,28Z..IDN,IND,LA,VN) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20G
- ENGINE
- 1TRFE
- TRANSMISSION
- ATM
- PRODUCT
- VNP
- DESTINATION
- VN
- Model
- INNOVA
- From
- 07.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- INNOVA
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87103D
|
87103D
87103-0K190
Motor Sub-Assy, Blower W/fan(For Rear)
[11.2015 -] TGN140..(20E,20G,20V)..VN;GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC, IDN,LA,SA);GUN143,TGN140..IDNP..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,T H) |
87103-0K190 |
— | ||
|
88501R
|
88501R
88501-0K440 Evaporator Sub-Assy (Rear)[11.2015 -] TGN140..(20E,20G,20V)..VN;GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC, IDN,LA,SA);GUN143,TGN140..IDNP..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,T H) |
88501-0K440 |
US $308.41 |
||
|
88510T
|
88510T
88500-0K280
Unit Assy, Cooling (Rear)
[11.2015 -] GUN143..IDNP..(28G,28V);GUN142,TGN140..(20Q,20V,24,24Q,24V)..(IDN,SA,VN);GUN142,TG N14#..LHD..(IDNP,VNP)..(20G,24G,27G,27SRV) |
88500-0K280 |
— | ||
|
88515B
|
88515B
88515-0K640 Valve, Rear Cooling Unit Expansion[11.2015 -] TGN140..(20E,20G,20V)..VN;GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC, IDN,LA,SA);GUN143,TGN140..IDNP..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,T H) |
88515-0K640 |
US $73.67 |
||
|
88539C
|
88539C
88539-0K450
Hose, Cooler Unit Drain, No.2
[11.2015 -] TGN140..(20E,20G,20V)..VN;GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC, IDN,LA,SA);GUN143,TGN140..IDNP..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,T H) |
88539-0K450 |
— | ||
|
88600
|
88600
87165-0K010
Control Assy, Air Conditioner
[11.2015 -] GUN143..IDNP..(28G,28V);GUN142,TGN140..(20Q,20V,24,24Q,24V)..(IDN,SA,VN);GUN142,TG N14#..LHD..(IDNP,VNP)..(20G,24G,27G,27SRV) |
87165-0K010 |
— | ||
|
88710H
|
88710H
88710-0KG10 Tube & Accessory Assy, Air Conditioner[11.2015 -] TGN140..(20E,20G,20V)..VN;GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC, IDN,LA,SA);GUN143,TGN140..IDNP..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,T H) |
88710-0KG10 |
US $123.06 |
||
|
88891
|
88891
88619-0K130
Packing (For Cooler)
[11.2015 -] TGN140..(20E,20G,20V)..VN;GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC, IDN,LA,SA);GUN143,TGN140..IDNP..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,T H) |
88619-0K130 |
— | ||
|
88891S
|
88891S
88899-0K130
Cover, Cooler, No.1
[11.2015 -] TGN140..(20E,20G,20V)..VN;GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC, IDN,LA,SA);GUN143,TGN140..IDNP..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,T H) |
88899-0K130 |
— | ||
|
88892N
|
88892N
88899-0K140
Cover, Cooler, No.2
[11.2015 -] TGN140..(20E,20G,20V)..VN;GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC, IDN,LA,SA);GUN143,TGN140..IDNP..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,T H) |
88899-0K140 |
— | ||
|
90119T0404
|
90119T0404
90119-T0404
New Genuine Part
|
90119-T0404 |
— | ||
|
8719387101
|
8719387101
87193-87101
SCREW TAPPING
|
87193-87101 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9009904497
|
9009904497
90099-04497 BOLT |
90099-04497 |
US $5.02 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.68 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
