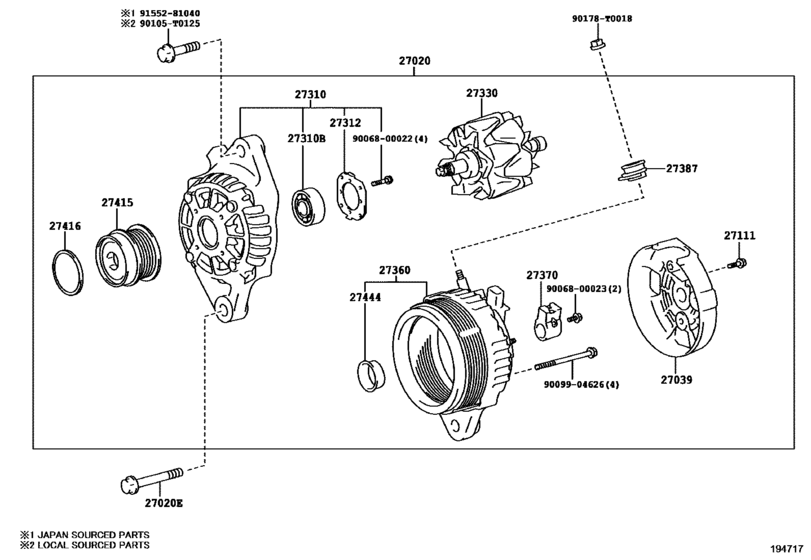

Alternator ([11.2015 - ] 12V 80A (1511- )1TRFE,2TRFE..GEN,IDN,LA) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20G
- ENGINE
- 1TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- IDN
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-0C190
Alternator Assy
[11.2015 -] 1TRFE..TGN140..GEN,IDN 12V 80A; 2TRFE..TGN141..LA 12V 80A,CENTRAL AND SOUTH AMERICA SPEC |
27060-0C190 |
— | ||
|
27020E
|
27020E
90105-T0211
Bolt(For Alternator)
[11.2015 -] 1TRFE..TGN140..20V..VN;1TRFE..TGN140..(20E,20G)..(MA,VN);1TRFE,2TRFE..TGN14#..IDNP ,INDP,PHLP (L) |
90105-T0211 |
— | ||
|
27020E
|
27020E
91552-81080 Bolt(For Alternator)[11.2015 -] 1TRFE..TGN140..20V..VN;1TRFE..TGN140..(20E,20G)..(MA,VN);1TRFE,2TRFE..TGN14#..IDNP ,INDP,PHLP (J) |
91552-81080 |
from US $1.50 |
||
|
27039
|
27039
27039-0C190
Cover, Alternator Rear End
[11.2015 -] 1GDFTV..GUN143..IDNP..PHL;2GDFTV,1TRFE..GUN142,TGN140..GEN,IDN; 2TRFE..TGN141..LA CENTRAL AND SOUTH AMERICA SPEC |
27039-0C190 |
— | ||
|
27111
|
27111
90068-04047
Bolt(For Alternator Rear End Cover)
[11.2015 -] 1TRFE..TGN140..GEN,IDN;1GDFTV,2GDFTV..GUN14#..IDN,PHL; 2TRFE..TGN141..LA CENTRAL AND SOUTH AMERICA SPEC |
90068-04047 |
— | ||
|
27310
|
27310
27310-0C190
Frame Assy, Drive End, Alternator
[11.2015 -] 1TRFE..TGN140..GEN,IDN; 2TRFE..TGN141..LA CENTRAL AND SOUTH AMERICA SPEC |
27310-0C190 |
— | ||
|
27310B
|
27310B
90068-10040 Bearing(For Alternator Drive End Frame)[11.2015 -] 1TRFE..TGN140..GEN,IDN;1GDFTV,2GDFTV..GUN14#..IDN,PHL; 2TRFE..TGN141..LA CENTRAL AND SOUTH AMERICA SPEC |
90068-10040 |
US $12.97 |
||
|
27312
|
27312
27312-0C190
Plate, Retainer
[11.2015 -] 1GDFTV..GUN143..IDNP..PHL;2GDFTV,1TRFE..GUN142,TGN140..GEN,IDN; 2TRFE..TGN141..LA CENTRAL AND SOUTH AMERICA SPEC |
27312-0C190 |
— | ||
|
27330
|
27330
27330-0C190 Rotor Assy, Alternator[11.2015 -] 1GDFTV..GUN143..IDNP..PHL;2GDFTV,1TRFE..GUN142,TGN140..GEN,IDN; 2TRFE..TGN141..LA CENTRAL AND SOUTH AMERICA SPEC |
27330-0C190 |
US $149.99 |
||
|
27360
|
27360
27360-0C190
Coil Assy, Alternator
[11.2015 -] 1TRFE..TGN140..GEN,IDN; 2TRFE..TGN141..LA CENTRAL AND SOUTH AMERICA SPEC |
27360-0C190 |
— | ||
|
27370
|
27370
27370-0C190
Holder Assy, Alternator Brush
[11.2015 -] 1TRFE..TGN140..GEN,IDN; 2TRFE..TGN141..LA CENTRAL AND SOUTH AMERICA SPEC |
27370-0C190 |
— | ||
|
27387
|
27387
27387-0C190
Insulator, Alternator Terminal
[11.2015 -] 1GDFTV..GUN143..IDNP..PHL;2GDFTV,1TRFE..GUN142,TGN140..GEN,IDN; 2TRFE..TGN141..LA CENTRAL AND SOUTH AMERICA SPEC |
27387-0C190 |
— | ||
|
27415
|
27415
27415-0W053 Pulley, Alternator W/clutch[11.2015 -] 1TRFE..TGN140..GEN,IDN; 2TRFE..TGN141..LA CENTRAL AND SOUTH AMERICA SPEC |
27415-0W053 |
from US $60.18 |
||
|
27416
|
27416
27416-0W050 Cap, Alternator Pulley[11.2015 -] 1TRFE..TGN140..20V..VN;1TRFE..TGN140..(20E,20G)..(MA,VN);1TRFE,2TRFE..TGN14#..IDNP ,INDP,PHLP |
27416-0W050 |
from US $3.84 |
||
|
27444
|
27444
27444-0Y180
Packing, Alternator Bearing Cover
[11.2015 -] 1TRFE..TGN140..20V..VN;1TRFE..TGN140..(20E,20G)..(MA,VN);1GDFTV,1TRFE..GUN143,TGN1 40..(20,20E,20G,20Q,20V,28E,28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);2GDFTV,2TRFE..GUN 142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z,27,27G,27SR,27SRV,27V,27Z,G,N)..(GC |
27444-0Y180 |
— | ||
|
90105T0125
|
90105T0125
90105-T0125
Bolt(For Alternator)
|
90105-T0125 |
— | ||
|
90178T0018
|
90178T0018
90178-T0018 NUT FLANGE |
90178-T0018 |
US $0.76 |
||
|
9006800022
|
9006800022
90068-00022
Screw(For Alternator Drive End Frame)
|
90068-00022 |
— | ||
|
9006800023
|
9006800023
90068-00023
Screw(For Alternator Brush Holder)
|
90068-00023 |
— | ||
|
9009904626
|
9009904626
90099-04626
Bolt(For Alternator Coil)
|
90099-04626 |
— | ||
|
9155281040
|
9155281040
91552-81040 Bolt(For Alternator) |
91552-81040 |
from US $1.15 |
