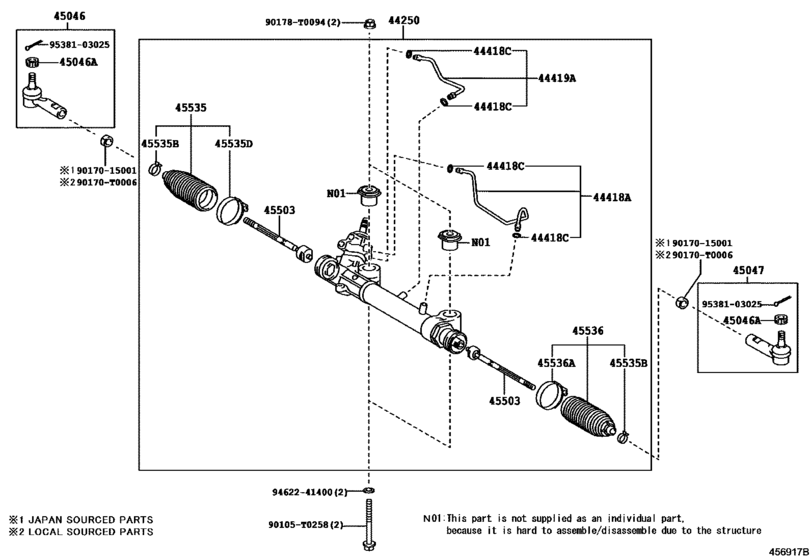

Front Steering Gear & Link ([11.2015 - ] (1511- )RHD) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20G
- ENGINE
- 1TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- IDN
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44250
|
44250
44250-0K800
Gear Assy, Power Steering(For Rack & Pinion)
[11.2015 -] GUN14#,TGN140..RHD..IDNP |
44250-0K800 |
— | ||
|
44418A
|
44418A
44418-0K190
Tube, Steering Right Turn Pressure
[11.2015 -] GUN14#,TGN140..RHD..IDNP |
44418-0K190 |
— | ||
|
44418C
|
44418C
90301-T0032
Ring, O(For Steering Turn Pressure Tube)
[11.2015 -] GUN14#,TGN14#..IDNP,MAP,PHLP,VNP |
90301-T0032 |
— | ||
|
44419A
|
44419A
44419-0K190
Tube, Steering Left Turn Pressure
[11.2015 -] GUN14#,TGN140..RHD..IDNP |
44419-0K190 |
— | ||
|
45046
|
45046
45046-09840 End Sub-Assy, Tie Rod, Rh[11.2015 -] GUN14#,TGN14#..IDNP |
45046-09840 |
US $35.51 |
||
|
45046A
|
45046A
90171-T0004
Nut, Castle(For Tie Rod End)
[11.2015 -] GUN14#,TGN14# |
90171-T0004 |
— | ||
|
45047
|
45047
45046-09840 End Sub-Assy, Tie Rod, Rh[11.2015 -] GUN14#,TGN14#..IDNP |
45046-09840 |
US $35.51 |
||
|
45503
|
45503
45503-0K040
End Sub-Assy, Steering Rack
[11.2015 -] GUN14#,TGN14#..IDNP |
45503-0K040 |
— | ||
|
45535
|
45535
45535-09380 Boot, Steering Rack, No.1[11.2015 -] GUN14#,TGN14#..IDNP,PHLP,VNP |
45535-09380 |
US $14.08 |
||
|
45535B
|
45535B
90466-T0004 Clip(For Steering Rack Boot)[11.2015 -] GUN14#,TGN14#..IDNP,PHLP,VNP |
90466-T0004 |
from US $1.37 |
||
|
45535D
|
45535D
45538-0K010
Clamp(For Steering Rack Boot No.1)
[11.2015 -] GUN14#,TGN14#..IDNP,INDP,PHLP,VNP |
45538-0K010 |
— | ||
|
45536
|
45536
45535-09380 Boot, Steering Rack, No.1[11.2015 -] GUN14#,TGN14#..IDNP,PHLP,VNP |
45535-09380 |
US $14.08 |
||
|
45536A
|
45536A
45538-0K010
Clamp(For Steering Rack Boot No.1)
[11.2015 -] GUN14#,TGN14#..IDNP,INDP,PHLP,VNP |
45538-0K010 |
— | ||
|
90170T0006
|
90170T0006
90170-T0006
NUT HEXAGON
|
90170-T0006 |
— | ||
|
9017015001
|
9017015001
90170-15001 Nut, Rack End Lock |
90170-15001 |
from US $1.46 |
||
|
9462241400
|
9462241400
94622-41400 WASHER PLATE |
94622-41400 |
from US $1.40 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.78 |
