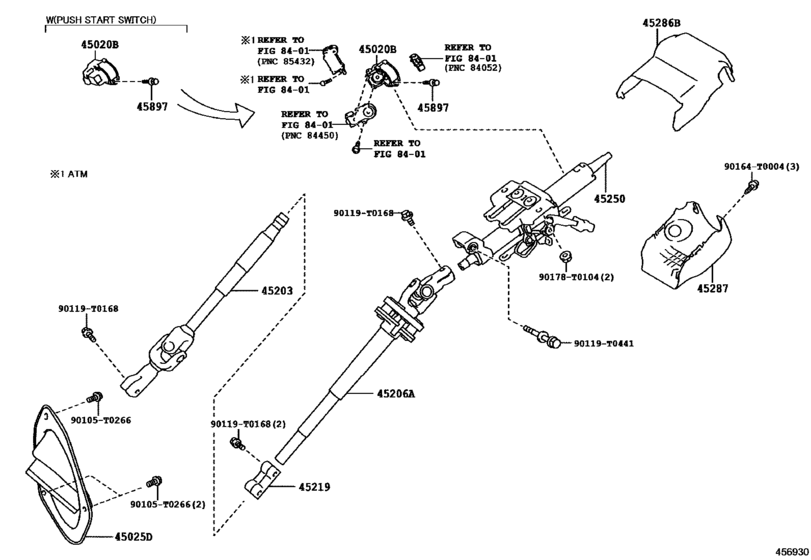

Steering Column & Shaft ([11.2015 - ] (1511- )) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20G
- ENGINE
- 1TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- IDN
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45020B
|
45020B
45280-0K170
Actuator Or Upper Bracket Assy, Steering Lock
[11.2015 -] GUN14#,TGN14#..IDNP..5F..(20E,20G,20V,24,24G,24V,27,27G,27SR,28E,28G,N) |
45280-0K170 |
— | ||
|
45025D
|
45025D
45025-KK010
Cover Sub-Assy, Steering Column Hole, No.1
[11.2015 -] GUN14#,TGN14#..RHD |
45025-KK010 |
— | ||
|
45203
|
45203
45203-0K150
Shaft Sub-Assy, Steering Intermediate, No.2
[11.2015 -] GUN14#,TGN140..RHD..(IDNP,MAP) |
45203-0K150 |
— | ||
|
45206A
|
45206A
45206-0K070
Yoke Sub-Assy, Steering Sliding W/coupling
[11.2015 -] GUN14#,TGN140..RHD..(IDNP,MAP) |
45206-0K070 |
— | ||
|
45219
|
45219
45219-0K090 Yoke, Steering Sliding[11.2015 -] GUN14#,TGN14#..IDNP,MAP,PHLP,VNP |
45219-0K090 |
from US $11.84 |
||
|
45250
|
45250
45250-0K070
Column Assy, Steering
[11.2015 -] TGN140..20G..VN;GUN142,TGN140..(20E,24V)..(IDN,MA,VN);GUN14#,TGN14#..(IDNP,PHLP).. (20,20E,20G,20V,24,24G,27,27G,27SR,27SRV,28E,28G,N) |
45250-0K070 |
— | ||
|
45286B
|
45286B
45286-0K070-C0
Cover, Steering Column, Upr
[11.2015 -] TGN140..RHD..IDNP;TGN140..IDNP..20G..PHL;GUN14#,TGN141..IDNP..(24,24G,24Q,24V,27,2 7G,27SR,27SRV,28G,28V) BLACK,TRIM2#,4# |
45286-0K070-C0 |
— | ||
|
45287
|
45287
45287-0K110-C0
Cover, Steering Column, Lwr
[11.2015 -] GUN142..24V..IDN;TGN140..IDNP..20G..PHL;TGN140..RHD..IDNP..(20,20E,20G,20V);GUN14# ,TGN141..IDNP..(24,24G,27,27G,27SR,27SRV,28G) BLACK,TRIM2#,4# |
45287-0K110-C0 |
— | ||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[11.2015 -] GUN14#,TGN14# |
45897-12020 |
from US $2.63 |
||
|
90105T0266
|
90105T0266
90105-T0266
New Genuine Part
|
90105-T0266 |
— | ||
|
90119T0168
|
90119T0168
90119-T0168 BOLT WWASHER |
90119-T0168 |
US $0.43 |
||
|
90119T0441
|
90119T0441
90119-T0441
Bolt, Tilt Steering Pawl Set
|
90119-T0441 |
— | ||
|
90164T0004
|
90164T0004
90164-T0004
SCREW BINDING
|
90164-T0004 |
— |
