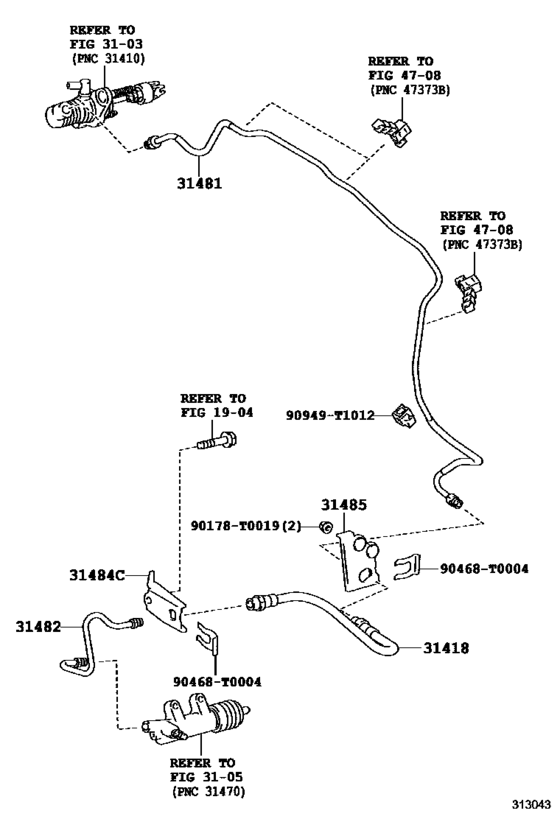

Clutch Pedal & Flexible Hose ([11.2015 - ] CLUTCH PIPING (1511- )TGN14#..RHD..5F) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20E
- ENGINE
- 1TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- TH
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31418
|
31418
90080-94215 Hose, Clutch[11.2015 -] GUN143..5F..PHL;GUN142,TGN14#..(IDNP,MAP,PHLP,VNP)..5F..(20E,20G,20Q,20V,24,24G,24 Q,24V,27,27G,27SR,N) |
90080-94215 |
US $17.04 |
||
|
31481
|
31481
31481-KK010
Tube, Clutch Master Cylinder To Flexible Hose
[11.2015 -] TGN14#..RHD..5F |
31481-KK010 |
— | ||
|
31482
|
31482
31482-KK040
Tube, Clutch Release Cylinder To Flexible Hose
[11.2015 -] TGN14#..5F..(20E,20G,20Q,20V,27,27G,27SR,27V,N) |
31482-KK040 |
— | ||
|
31484C
|
31484C
31484-0K010
Bracket, Clutch Tube, No.1
[11.2015 -] TGN14#..5F..(20E,20G,20Q,20V,27,27G,27SR,27V,N) |
31484-0K010 |
— | ||
|
31485
|
31485
31485-KK010
Bracket, Flexible Hose, No.2(For Clutch)
[11.2015 -] GUN143..5F..PHL;GUN142,TGN14#..5F..(20E,20G,20Q,20V,24,24G,24Q,24V,24Z,27,27G,27SR ,27V,G,N) |
31485-KK010 |
— | ||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.92 |
||
|
90468T0004
|
90468T0004
90468-T0004
CLIP
|
90468-T0004 |
— | ||
|
90949T1012
|
90949T1012
90949-T1012
Clamp, Brake Tube, No.3
|
90949-T1012 |
— |
