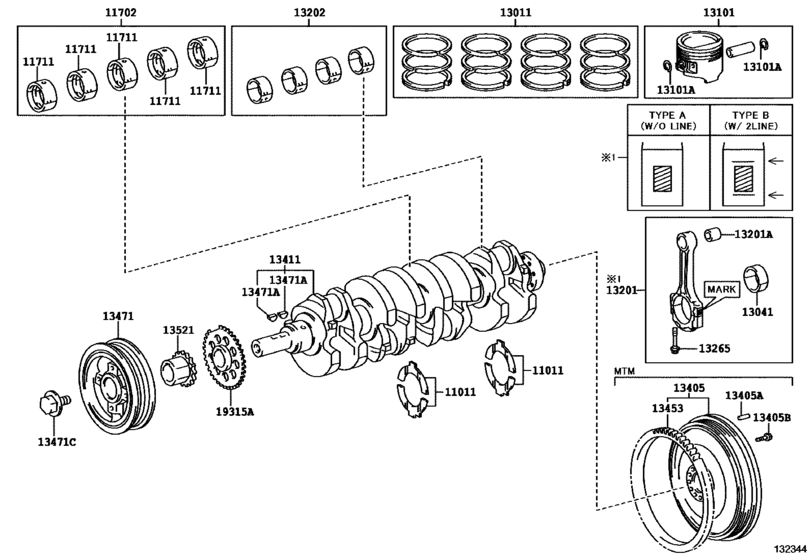

Crankshaft & Piston ([11.2015 - ] (1511- )1TRFE) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20E
- ENGINE
- 1TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- TH
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-0C010 Washer Set, Crankshaft Thrust[11.2015 -] 1TRFE,2TRFE..TGN14# STD |
11011-0C010 |
US $19.91 |
||
|
11702
|
11702
11704-75032 Bearing Set, Crankshaft[11.2015 -] 1TRFE,2TRFE..TGN14# U/S 0.25 |
11704-75032 |
US $202.38 |
||
| replacement | |||||
|
11702
|
11702
11704-75033 Bearing Set, Crankshaft[11.2015 -] 1TRFE,2TRFE..TGN14# U/S 0.25 |
11704-75033 |
from US $96.08 |
||
|
11711
|
11711
11701-0C011-01 Bearing, Crankshaft[11.2015 -] 1TRFE,2TRFE..TGN14# MARK 1,REFER REPAIR MANUAL |
11701-0C011-01 |
US $16.07 |
||
|
11711
|
11711
11701-0C011-02 Bearing, Crankshaft[11.2015 -] 1TRFE,2TRFE..TGN14# MARK 2,REFER REPAIR MANUAL |
11701-0C011-02 |
US $16.83 |
||
|
11711
|
11711
11701-0C011-03 Bearing, Crankshaft[11.2015 -] 1TRFE,2TRFE..TGN14# MARK 3,REFER REPAIR MANUAL |
11701-0C011-03 |
US $16.42 |
||
|
11711
|
11711
11701-0C011-04 Bearing, Crankshaft[11.2015 -] 1TRFE,2TRFE..TGN14# MARK 4,REFER REPAIR MANUAL |
11701-0C011-04 |
US $16.50 |
||
|
11711
|
11711
11701-0C011-05 Bearing, Crankshaft[11.2015 -] 1TRFE,2TRFE..TGN14# MARK 5,REFER REPAIR MANUAL |
11701-0C011-05 |
US $18.68 |
||
|
13011
|
13011
13011-0C080
Ring Set, Piston
[11.2015 -] 1TRFE..TGN140 STD,(L) |
13011-0C080 |
— | ||
|
13011
|
13011
13011-75210 Ring Set, Piston[11.2015 -] 1TRFE..TGN140 STD,(J) |
13011-75210 |
US $142.80 |
||
|
13011
|
13011
13013-75210 Ring Set, Piston[11.2015 -] 1TRFE..TGN140 O/S 0.50 |
13013-75210 |
from US $142.94 |
||
|
13041
|
13041
13041-0C052-04
Bearing, Connecting Rod
[11.2015 - 02.2016] 1TRFE,2TRFE..TGN14# MARK 4,REFER REPAIR MANUAL |
13041-0C052-04 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-0C060-04 Bearing, Connecting Rod[11.2015 - 02.2016] 1TRFE,2TRFE..TGN14# MARK 4,REFER REPAIR MANUAL |
13041-0C060-04 |
US $11.52 |
||
|
13041
|
13041
13041-0C052-05
Bearing, Connecting Rod
[11.2015 - 02.2016] 1TRFE,2TRFE..TGN14# MARK 5,REFER REPAIR MANUAL |
13041-0C052-05 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-0C060-05 Bearing, Connecting Rod[11.2015 - 02.2016] 1TRFE,2TRFE..TGN14# MARK 5,REFER REPAIR MANUAL |
13041-0C060-05 |
US $11.43 |
||
|
13041
|
13041
13041-0C052-06
Bearing, Connecting Rod
[11.2015 - 02.2016] 1TRFE,2TRFE..TGN14# MARK 6,REFER REPAIR MANUAL |
13041-0C052-06 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-0C060-06 Bearing, Connecting Rod[11.2015 - 02.2016] 1TRFE,2TRFE..TGN14# MARK 6,REFER REPAIR MANUAL |
13041-0C060-06 |
US $11.35 |
||
|
13041
|
13041
13041-0C060-04 Bearing, Connecting Rod[03.2016 -] 1TRFE,2TRFE..TGN14# MARK 4,(L),REFER R/M |
13041-0C060-04 |
US $11.52 |
||
|
13041
|
13041
13041-0C060-05 Bearing, Connecting Rod[03.2016 -] 1TRFE,2TRFE..TGN14# MARK 5,(L),REFER R/M |
13041-0C060-05 |
US $11.43 |
||
|
13041
|
13041
13041-0C060-06 Bearing, Connecting Rod[03.2016 -] 1TRFE,2TRFE..TGN14# MARK 6,(L),REFER R/M |
13041-0C060-06 |
US $11.35 |
||
|
13041
|
13041
13041-75070-04 Bearing, Connecting Rod[03.2016 -] 1TRFE,2TRFE..TGN14# MARK 4,(J),REFER R/M |
13041-75070-04 |
from US $10.65 |
||
|
13041
|
13041
13041-75070-05 Bearing, Connecting Rod[03.2016 -] 1TRFE,2TRFE..TGN14# MARK 5,(J),REFER R/M |
13041-75070-05 |
from US $11.27 |
||
|
13041
|
13041
13041-75070-06 Bearing, Connecting Rod[03.2016 -] 1TRFE,2TRFE..TGN14# MARK 6,(J),REFER R/M |
13041-75070-06 |
from US $11.49 |
||
|
13101
|
13101
13101-0C060
Piston Sub-Assy, W/pin
[11.2015 -] 1TRFE..TGN140 STD |
13101-0C060 |
— | ||
|
13101
|
13101
13103-75210 Piston Sub-Assy, W/pin[11.2015 -] 1TRFE..TGN140 O/S 0.50 |
13103-75210 |
from US $52.61 |
||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[11.2015 -] 1TRFE,2TRFE..TGN14# |
90520-22025 |
from US $1.95 |
||
|
13201
|
13201
13201-09302
Rod Sub-Assy, Connecting
[11.2015 - 02.2016] 1TRFE..TGN140 TYPE A |
13201-09302 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-09303
Rod Sub-Assy, Connecting
[11.2015 - 02.2016] 1TRFE..TGN140 TYPE A |
13201-09303 |
— | ||
|
13201
|
13201
13201-09303
Rod Sub-Assy, Connecting
[03.2016 -] 1TRFE..TGN140 TYPE A |
13201-09303 |
— | ||
|
13201
|
13201
13201-09B70
Rod Sub-Assy, Connecting
[11.2015 - 02.2016] 1TRFE..TGN140 TYPE B |
13201-09B70 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-09B71
Rod Sub-Assy, Connecting
[11.2015 - 02.2016] 1TRFE..TGN140 TYPE B |
13201-09B71 |
— | ||
|
13201
|
13201
13201-09B71
Rod Sub-Assy, Connecting
[03.2016 -] 1TRFE..TGN140 TYPE B |
13201-09B71 |
— | ||
|
13201A
|
13201A
90999-73144 Bush(For Connecting Rod Small End)[11.2015 -] 1TRFE,2TRFE..TGN14# |
90999-73144 |
from US $2.32 |
||
|
13202
|
13202
13204-75052 Bearing Set, Connecting Rod[11.2015 - 03.2016] 1TRFE,2TRFE..TGN14# U/S 0.25 |
13204-75052 |
US $99.01 |
||
| replacement | |||||
|
13202
|
13202
13204-75070 Bearing Set, Connecting Rod[11.2015 - 03.2016] 1TRFE,2TRFE..TGN14# U/S 0.25 |
13204-75070 |
from US $53.51 |
||
|
13202
|
13202
13204-75070 Bearing Set, Connecting Rod[03.2016 -] 1TRFE,2TRFE..TGN14# U/S 0.25 |
13204-75070 |
from US $53.51 |
||
|
13265
|
13265
13265-28010
Bolt, Connecting Rod
[11.2015 -] 1TRFE,2TRFE..TGN14# |
13265-28010 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-28020 BOLT CONNECTING ROD[11.2015 -] 1TRFE,2TRFE..TGN14# |
13265-28020 |
from US $2.85 |
||
|
13405
|
13405
13405-0C010
Flywheel Sub-Assy
[11.2015 -] 1TRFE..TGN140..5F |
13405-0C010 |
— | ||
|
13405A
|
13405A
90250-08054 Pin, Straight[11.2015 -] 1TRFE,2TRFE..TGN14#..5F L=23,OD=8,(J) |
90250-08054 |
from US $0.98 |
||
|
13405A
|
13405A
90250-T0010
Pin, Straight(For Flywheel)
[11.2015 -] 1TRFE,2TRFE..TGN14#..5F L=23,OD=8,(L) |
90250-T0010 |
— | ||
|
13405B
|
13405B
90910-02116 Bolt, Flywheel Setting[11.2015 -] 1TRFE,2TRFE..TGN14#..5F (J) |
90910-02116 |
from US $2.15 |
||
|
13405B
|
13405B
90910-T2004 Bolt, Flywheel Setting[11.2015 -] 1TRFE,2TRFE..TGN14#..5F (L) |
90910-T2004 |
US $2.42 |
||
|
13411
|
13411
13401-0C010 Crankshaft[11.2015 -] 1TRFE..TGN140 |
13401-0C010 |
US $643.85 |
||
|
13453
|
13453
13453-0C020
Gear, Flywheel Ring
[11.2015 -] 1TRFE,2TRFE..TGN14#..5F |
13453-0C020 |
— | ||
|
13471
|
13471
13408-0C030 Pulley, Crankshaft[11.2015 -] 1TRFE,2TRFE..TGN14# |
13408-0C030 |
US $163.76 |
||
|
13471A
|
13471A
90280-T0003
Key, Crankshaft(For Crankshaft Pulley Set)
[11.2015 -] 1TRFE,2TRFE..TGN14# |
90280-T0003 |
— | ||
|
13471C
|
13471C
90105-16041 Bolt(For Crankshaft Pulley Set)[11.2015 -] 1TRFE,2TRFE..TGN14# (J) |
90105-16041 |
from US $4.52 |
||
|
13471C
|
13471C
90109-T0038 Bolt(For Crankshaft Pulley Set)[11.2015 -] 1TRFE,2TRFE..TGN14# (L) |
90109-T0038 |
US $5.07 |
||
|
13521
|
13521
13521-0C011 Gear Or Sprocket, Crankshaft Timing[11.2015 -] 1TRFE,2TRFE..TGN14# (L) |
13521-0C011 |
US $29 |
||
|
13521
|
13521
13521-75021 Gear Or Sprocket, Crankshaft Timing[11.2015 -] 1TRFE,2TRFE..TGN14# (J) |
13521-75021 |
from US $28.90 |
||
|
19315A
|
19315A
19315-0C010
Rotor, Crank Position Sensor
[11.2015 -] 1TRFE..TGN140 |
19315-0C010 |
— | ||
