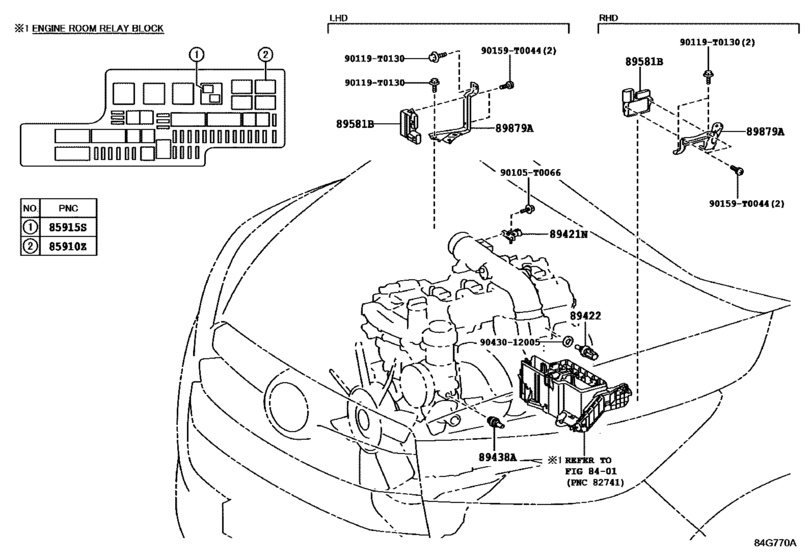

Electronic Fuel Injection System ([11.2015 - ] ENGINE ROOM (1511- )20V..VN ; (1511- )20E,20G..MA,VN ; (1511- )TGN14#..IDNP,INDP,PHLP) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20E
- ENGINE
- 1TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- TH
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910Z
|
85910Z
90987-T2001 Relay, Power Outlet SocketDEFOGGER [11.2015 -] TGN14#..6FC..(IND,LA,PHL,VN) (L); TGN141..6FC..GCC;TGN140..RHD..IDNP;TGN140..(20E,20G)..MA;TGN14#..5F..(20E,27,27G,2 7SR,27V,N)..(GCC,IND,LA,PHL,VN); TGN141..6FC..GCC GCC SPEC EURO 4,(L); TGN141..6FC..GCC SAUDI ARABIA EURO4,(L); TGN141..6FC..G |
90987-T2001 |
US $73.13 |
||
|
85915S
|
85915S
90987-T2001 Relay, Power Outlet SocketDEFOGGER [11.2015 -] TGN14#..6FC..(IND,LA,PHL,VN) (L); TGN141..6FC..GCC;TGN140..RHD..IDNP;TGN140..(20E,20G)..MA;TGN14#..5F..(20E,27,27G,2 7SR,27V,N)..(GCC,IND,LA,PHL,VN); TGN141..6FC..GCC GCC SPEC EURO 4,(L); TGN141..6FC..GCC SAUDI ARABIA EURO4,(L); TGN141..6FC..G |
90987-T2001 |
US $73.13 |
||
|
89421N
|
89421N
89421-71010 Sensor Assy, Air Pressure[11.2015 -] TGN14#..(20E,20G,20V,27,27G,27SR,27SRV,27V,27Z,N)..(IND,LA,PHL,TH,VN); TGN141..GCC GCC SPEC EURO 4; TGN141..GCC SAUDI ARABIA EURO4; TGN141..GCC UAE TAXI EURO4 |
89421-71010 |
US $96.76 |
||
|
89422
|
89422
89422-33030 Sensor, Water Temperature (For E.f.i.)[11.2015 -] TGN140..20V..VN;TGN14#..IDNP,INDP,PHLP;TGN140..(20E,20G)..(MA,VN) |
89422-33030 |
from US $40.49 |
||
|
89438A
|
89438A
89438-33010 Switch, Power Steering Oil Pressure[11.2015 - 01.2017] TGN140..20V..VN;TGN14#..IDNP,INDP,PHLP;TGN140..(20E,20G)..(MA,VN) |
89438-33010 |
from US $29.78 |
||
|
89581B
|
89581B
89581-60010 Driver, Air Injection ControlAIR INJECTION CONTROL [11.2015 -] TGN14#..(20E,20G,20V,27,27G,27SR,27SRV,27V,27Z,N)..(IND,LA,PHL,TH,VN); TGN141..GCC GCC SPEC EURO 4; TGN141..GCC SAUDI ARABIA EURO4; TGN141..GCC UAE TAXI EURO4 |
89581-60010 |
from US $84.91 |
||
|
89879A
|
89879A
89589-0K010
Bracket, Injector Driver
[11.2015 -] TGN14#..IND,TH |
89589-0K010 |
— | ||
|
90105T0066
|
90105T0066
90105-T0066
BOLT FLANGE
|
90105-T0066 |
— | ||
|
90119T0130
|
90119T0130
90119-T0130
New Genuine Part
|
90119-T0130 |
— | ||
| replacement | |||||
|
90119T0130
|
90119T0130
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.68 |
||
