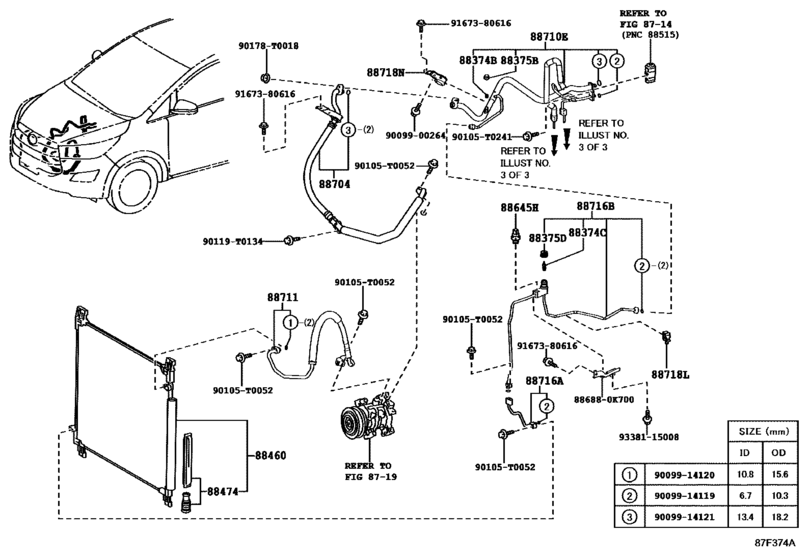

Heating & Air Conditioning - Cooler Piping ([11.2015 - ] FRONT (1511- )TGN141..GCC) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN141
- grade
- 27
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- GCC
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[11.2015 -] TGN140..20V..VN;GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA);GUN143,TGN140..(20,20E,20G, 20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,TH);GUN142,TGN14#..(20E,20G,27,27G,27SR,27SRV ,27V,27Z,G)..(GCC,IND,LA,MA,VN); TGN140..TH FRONT AIR CONDITIONER-MANUAL COOL |
88374-30010 |
from US $3.12 |
||
|
88374C
|
88374C
88374-30010 Valve, Service, No.1[11.2015 -] TGN140..IDNP,PHLP;GUN143..IDNP..5F..PHL;GUN143..6FC..(PHL,TH);TGN140..(20E,20G)..M A;GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA); TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL); TGN141..27..GCC |
88374-30010 |
from US $3.12 |
||
|
88375B
|
88375B
88375-30290 Cap, Service Valve (For Cooler Pipe)[11.2015 -] TGN140..20V..VN;GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA);GUN143,TGN140..(20,20E,20G, 20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,TH);GUN142,TGN14#..(20E,20G,27,27G,27SR,27SRV ,27V,27Z,G)..(GCC,IND,LA,MA,VN); TGN140..TH FRONT AIR CONDITIONER-MANUAL COOL |
88375-30290 |
from US $0.88 |
||
|
88375D
|
88375D
88375-30280 Cap, Service Valve (For Cooler Pipe)[11.2015 -] TGN140..IDNP,PHLP;GUN143..IDNP..5F..PHL;GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA);GUN 143,TGN140..6FC..(20V,28E,28G,28V)..(PHL,TH,VN);GUN142,TGN14#..(20E,20G,27,27G,27S R,27SRV,27V,27Z,G)..(GCC,IND,LA,MA,VN); TGN140..TH FRONT AIR CONDITIONER-MANU |
88375-30280 |
from US $0.98 |
||
|
88460
|
88460
88460-0K330 Condenser Assy, Cooler[11.2015 -] GUN142,TGN141..(24,24G,27,27G)..GCC; TGN141..27..GCC FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); TGN141..27..GCC FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL) |
88460-0K330 |
US $381.75 |
||
|
88474
|
88474
88474-12010 Dryer, Cooler[11.2015 -] TGN140..(20E,20G)..MA;TGN140..IDNP..(GEN,IDN,PHL);GUN143..(IDNP,INDP)..(IND,PHL,TH );GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z,27,27G,27SR,27SRV,27V,27Z,G)..(GCC, IDN,IND,LA,SA); TGN141..27 FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); |
88474-12010 |
from US $58.36 |
||
|
88645H
|
88645H
88645-60040 Switch, Pressure No.1[11.2015 -] TGN141..GCC; TGN141..27..GCC FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL) |
88645-60040 |
US $95.02 |
||
|
88704
|
88704
88704-0K710 Hose Sub-Assy, Suction[11.2015 -] TGN14#..IDNP..(GCC,GEN,IDN,LA,PHL); TGN141..27..GCC FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL) |
88704-0K710 |
US $223.10 |
||
|
88710E
|
88710E
88710-0KQ70 Tube & Accessory Assy, Air Conditioner[11.2015 -] TGN141..GCC; TGN141..27..GCC FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL) |
88710-0KQ70 |
US $351.80 |
||
|
88711
|
88711
88711-0KC80 Hose, Cooler Refrigerant Discharge, No.1[11.2015 -] TGN141..GCC; TGN141..27..GCC FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL) |
88711-0KC80 |
US $135.33 |
||
|
88716A
|
88716A
88716-0KQ90 Pipe, Cooler Refrigerant Liquid, A[11.2015 -] GUN143..IDNP..(PHL,TH);GUN142,TGN14#..IDNP..(20,20E,20G,20Q,20V,24,24G,24Q,24V,27, 27G,27SR,27SRV,N)..(GCC,GEN,IDN,LA,PHL,SA); TGN141..27..GCC FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL) |
88716-0KQ90 |
US $31.92 |
||
|
88716B
|
88716B
88716-0KU00 Pipe, Cooler Refrigerant Liquid, B[11.2015 -] TGN141..GCC; TGN141..27..GCC FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL) |
88716-0KU00 |
US $61.68 |
||
|
88718L
|
88718L
88718-0KB60 Clamp, Piping[11.2015 -] GUN143..IDNP..(PHL,TH);GUN142,TGN141..(24,24G,24Q,24V,27,27G)..(GCC,IDN,SA); TGN141..27..GCC FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL) |
88718-0KB60 |
US $6.36 |
||
|
88718N
|
88718N
88718-0KV60
Clamp, Piping
[11.2015 -] TGN141..GCC; TGN141..27..GCC FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL) |
88718-0KV60 |
— | ||
|
90105T0052
|
90105T0052
90105-T0052
New Genuine Part
|
90105-T0052 |
— | ||
|
90105T0241
|
90105T0241
90105-T0241
BOLTFLANGE
|
90105-T0241 |
— | ||
|
90119T0134
|
90119T0134
90119-T0134
BOLT WWASHER
|
90119-T0134 |
— | ||
|
90178T0018
|
90178T0018
90178-T0018 NUT FLANGE |
90178-T0018 |
US $0.76 |
||
|
886880K700
|
886880K700
88688-0K700
Bracket, Cooler Refrigerant Hose, No.1
|
88688-0K700 |
— | ||
|
9009900264
|
9009900264
90099-00264
SCREW
|
90099-00264 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.70 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9338115008
|
9338115008
93381-15008 SCREWWWASHER |
93381-15008 |
US $1.61 |
||
