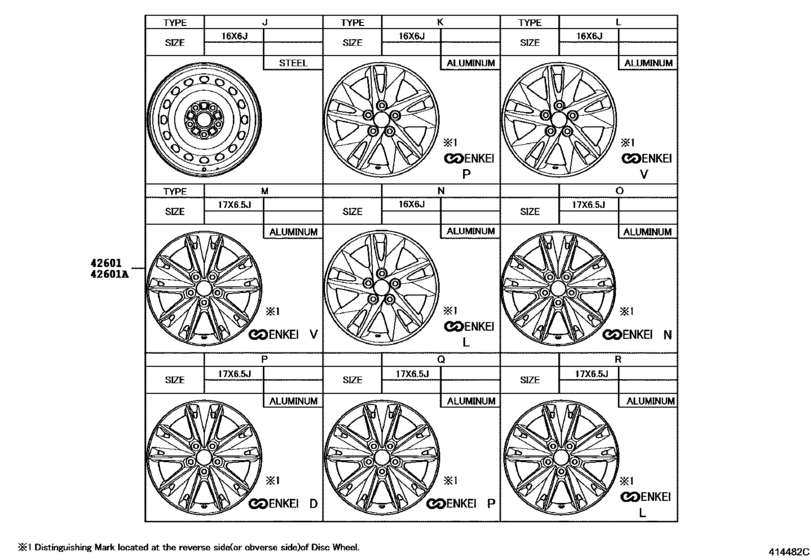

Disc Wheel & Wheel Cap ([11.2015 - ] (1511- )) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN141
- grade
- 27SR
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- LA
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42601
|
42601
42611-0KL20
Wheel, Disc
[11.2015 -] GUN142,TGN140..IDNP..(20,20E,20G,20Q,20V,24V)..(GEN,IDN,PHL);GUN14#,TGN141..IDNP.. (24,24G,24Q,27SR,27SRV,28E,28G)..(IDN,LA,PHL,SA,TH) 16X6J,TYPE B:REFER ILLUST.; TGN141..27..LA 16X6J,TIRE & DISC WHEEL-205/65R16 ALMINUM,TYPE B:REFER ILLUST. |
42611-0KL20 |
— | ||
|
42601
|
42601
42611-0KM50
Wheel, Disc
[11.2015 -] GUN142,TGN140..IDNP..(20,20E,20G,20Q,20V,24V)..(GEN,IDN,PHL);GUN14#,TGN141..IDNP.. (24,24G,24Q,27SR,27SRV,28E,28G)..(IDN,LA,PHL,SA,TH) 16X6J,TYPE A:REFER ILLUST.; TGN141..27..LA 16X6J,TIRE & DISC WHEEL-205/65R16 ALMINUM,TYPE A:REFER ILLUST. |
42611-0KM50 |
— | ||
|
42601A
|
42601A
42611-0KL20
Wheel, Disc
[11.2015 -] GUN14#,TGN14#..IDNP..(20,20E,20G,20Q,20V,24,24G,24Q,24V,27SR,27SRV,28E,28G)..(GEN, IDN,LA,PHL,SA) 16X6J,TYPE B:REFER ILLUST.; TGN141..27..LA 16X6J,TIRE & DISC WHEEL-205/65R16 ALMINUM,TYPE B:REFER ILLUST. |
42611-0KL20 |
— | ||
|
42601A
|
42601A
42611-0KM50
Wheel, Disc
[11.2015 -] GUN14#,TGN14#..IDNP..(20,20E,20G,20Q,20V,24,24G,24Q,24V,27SR,27SRV,28E,28G)..(GEN, IDN,LA,PHL,SA) 16X6J,TYPE A:REFER ILLUST.; TGN141..27..LA 16X6J,TIRE & DISC WHEEL-205/65R16 ALMINUM,TYPE A:REFER ILLUST. |
42611-0KM50 |
— |
