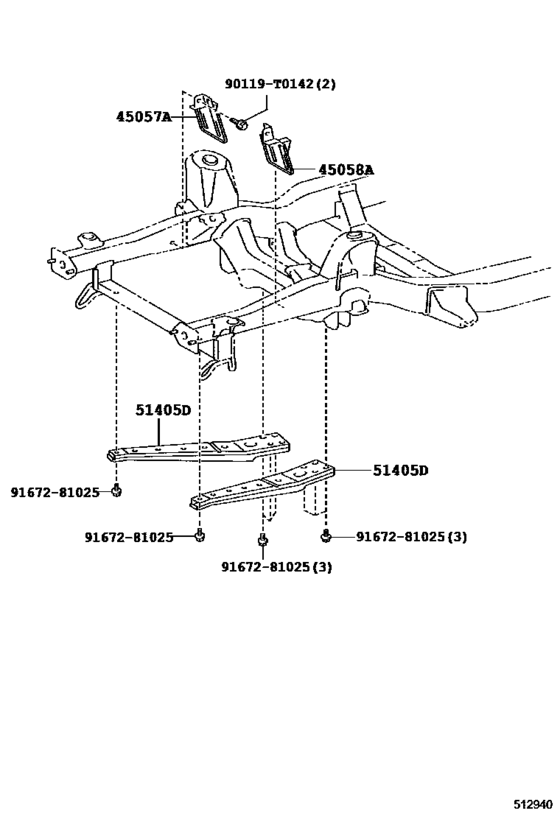

Suspension Crossmember & Under Cover ([11.2015 - ] (1511- )MA ; (1511- )TGN140..GEN,IDN,PHL ; (1511- )GUN14#,TGN141..IDN,IND, LA,PHL,SA) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN141
- grade
- 27SR
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- LA
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45057A
|
45057A
45057-0K010
Protector Sub-Assy, Rack Boot, No.1 Rh
[11.2015 -] TGN140..GEN,IDN,PHL;TGN140..(20E,20G)..MA;GUN14#,TGN141..(5F,6FC)..(IDN,IND,LA,PHL ,SA) |
45057-0K010 |
— | ||
|
45058A
|
45058A
45058-0K010
Protector Sub-Assy, Rack Boot, No.1 Lh
[11.2015 -] TGN140..GEN,IDN,PHL;TGN140..(20E,20G)..MA;GUN14#,TGN141..(5F,6FC)..(IDN,IND,LA,PHL ,SA) |
45058-0K010 |
— | ||
|
51405D
|
51405D
51405-KK010 Brace Sub-Assy, Engine Under[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
51405-KK010 |
US $102.36 |
||
|
90119T0142
|
90119T0142
90119-T0142 BOLT W-WASHER |
90119-T0142 |
US $0.80 |
||
|
9167281025
|
9167281025
91672-81025 Bolt, Center Support Bearing Bracket |
91672-81025 |
from US $1.13 |
