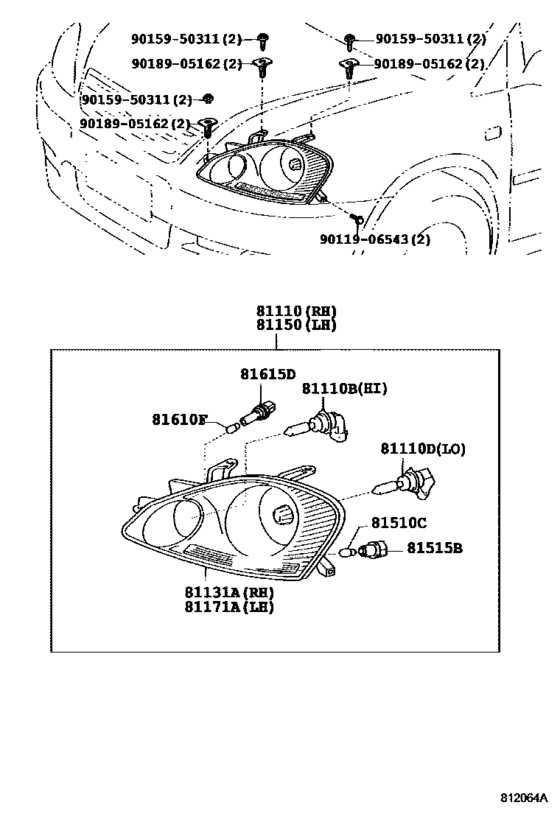

Headlamp ([05.2001 - 10.2003] (0105-0310)240E,240I) Diagram Toyota IPSUM
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- ACM21
- grade
- 240E
- ENGINE
- 2AZFE
- From
- 05.2001
- To
- 10.2003
- Seating Capacity
- 07S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-44110 Headlamp Assy, Rh[05.2001 - 10.2003] ACM2#..240E,240I |
81110-44110 |
US $500.86 |
||
|
81110
|
81110
81110-44120 Headlamp Assy, Rh[05.2001 - 10.2003] ACM2#..240E,240I,240U ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
81110-44120 |
US $1,703.52 |
||
|
81110B
|
81110B
90080-81041
Bulb(For Headlamp, No.1)
[05.2001 - 10.2003] ACM2# １２Ｖ ６５Ｗ |
90080-81041 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[05.2001 - 10.2003] ACM2# １２Ｖ ６５Ｗ |
90981-13046 |
from US $15.97 |
||
|
81110D
|
81110D
90981-13047 Bulb (HB4)[05.2001 - 10.2003] ACM2#..240E,240I １２Ｖ ５５Ｗ，ハロゲン |
90981-13047 |
from US $15.29 |
||
|
81131A
|
81131A
81130-44110 Unit, Headlamp, Rh[05.2001 - 10.2003] ACM2#..240E,240I |
81130-44110 |
US $385.84 |
||
|
81131A
|
81131A
81140-44120 Unit, Headlamp, Rh[05.2001 - 10.2003] ACM2#..240E,240I,240U ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ |
81140-44120 |
from US $180.67 |
||
|
81150
|
81150
81150-44110 Headlamp Assy, Lh[05.2001 - 10.2003] ACM2#..240E,240I |
81150-44110 |
US $500.86 |
||
|
81150
|
81150
81150-44120 Headlamp Assy, Lh[05.2001 - 10.2003] ACM2#..240E,240I,240U ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
81150-44120 |
US $1,703.52 |
||
|
81171A
|
81171A
81070-44120 Unit, Headlamp, Lh[05.2001 - 10.2003] ACM2#..240E,240I,240U ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ |
81070-44120 |
from US $422.39 |
||
|
81171A
|
81171A
81170-44110 Unit, Headlamp, Lh[05.2001 - 10.2003] ACM2#..240E,240I |
81170-44110 |
US $385.84 |
||
|
81510C
|
81510C
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[05.2001 - 10.2003] ACM2# １２Ｖ ２１Ｗ，アンバー |
90981-15011 |
from US $4.60 |
||
|
81515B
|
81515B
90075-60028 Socket, Headlamp, Bulb[05.2001 - 10.2003] ACM2# |
90075-60028 |
from US $6.36 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[05.2001 - 10.2003] ACM2# １２Ｖ ５Ｗ |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[05.2001 - 10.2003] ACM2# １２Ｖ ５Ｗ |
90080-81053 |
US $1.01 |
||
|
81615D
|
81615D
90075-60030 Socket, Clearance Lamp[05.2001 - 10.2003] ACM2# |
90075-60030 |
US $13.40 |
||
|
9011906543
|
9011906543
90119-06543 BOLT |
90119-06543 |
from US $0.70 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.72 |
||
|
9018905162
|
9018905162
90189-05162 GROMMET SCREW |
90189-05162 |
from US $0.96 |
||
