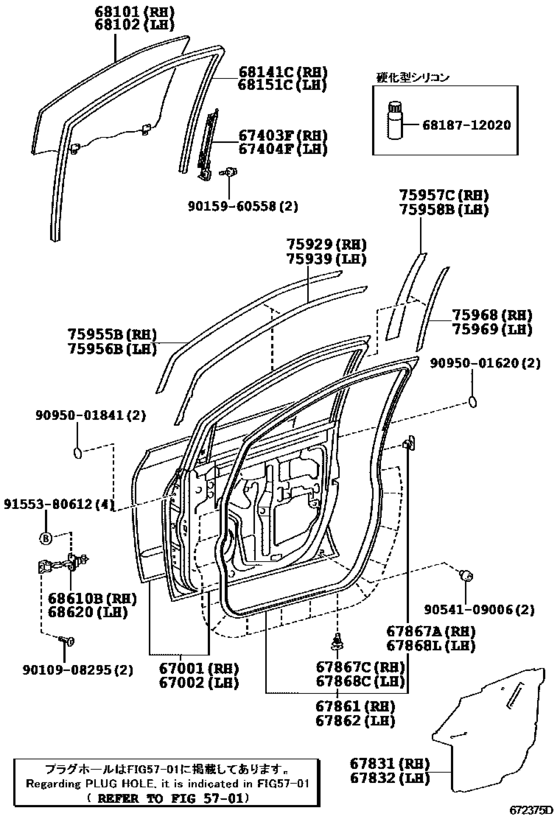

Front Door Panel & Glass ([05.2001 - ] ﾄﾞｱ ﾊﾟﾈﾙ (0105- )) Diagram Toyota IPSUM
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- ACM26
- grade
- 240U
- ENGINE
- 2AZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-44060 Panel Sub-Assy, Front Door, Rh[05.2001 - 10.2003] ACM2# |
67001-44060 |
US $767.31 |
||
|
67002
|
67002
67002-44060 Panel Sub-Assy, Front Door, Lh[05.2001 - 10.2003] ACM2# |
67002-44060 |
US $767.31 |
||
|
67403F
|
67403F
67403-44041 Frame Sub-Assy, Front Door, Rear Lower Rh[05.2001 - 10.2003] ACM2# |
67403-44041 |
US $14.41 |
||
|
67404F
|
67404F
67404-44041 Frame Sub-Assy, Front Door, Rear Lower Lh[05.2001 - 10.2003] ACM2# |
67404-44041 |
US $14.41 |
||
|
67831
|
67831
67831-44040 Cover, Front Door Service Hole, Rh[05.2001 - 10.2003] ACM2# |
67831-44040 |
US $17.76 |
||
|
67832
|
67832
67832-44020 Cover, Front Door Service Hole, Lh[05.2001 - 10.2003] ACM2# |
67832-44020 |
US $17.76 |
||
|
67861
|
67861
67861-44050 Weatherstrip, Front Door, Rh[05.2001 - 01.2002] ACM2# |
67861-44050 |
US $99.01 |
||
| replacement | |||||
|
67861
|
67861
67861-44051 Weatherstrip, Front Door, Rh[05.2001 - 01.2002] ACM2# |
67861-44051 |
US $92.09 |
||
|
67861
|
67861
67861-44051 Weatherstrip, Front Door, Rh[01.2002 - 10.2003] ACM2# |
67861-44051 |
US $92.09 |
||
|
67862
|
67862
67862-44050 Weatherstrip, Front Door, Lh[05.2001 - 01.2002] ACM2# |
67862-44050 |
US $99.01 |
||
| replacement | |||||
|
67862
|
67862
67862-44051 Weatherstrip, Front Door, Lh[05.2001 - 01.2002] ACM2# |
67862-44051 |
US $92.09 |
||
|
67862
|
67862
67862-44051 Weatherstrip, Front Door, Lh[01.2002 - 10.2003] ACM2# |
67862-44051 |
US $92.09 |
||
|
67867A
|
67867A
67867-48010 Retainer(For Front Door Weatherstrip)[05.2001 - 10.2003] ACM2# |
67867-48010 |
US $2.10 |
||
|
67867C
|
67867C
67867-12150 Clip(For Hood Air Intake Duct Seal)[05.2001 - 10.2003] ACM2# |
67867-12150 |
from US $1.79 |
||
|
67868C
|
67868C
67867-12150 Clip(For Hood Air Intake Duct Seal)[05.2001 - 10.2003] ACM2# |
67867-12150 |
from US $1.79 |
||
|
67868L
|
67868L
67867-48010 Retainer(For Front Door Weatherstrip)[05.2001 - 10.2003] ACM2# |
67867-48010 |
US $2.10 |
||
|
68101
|
68101
68101-44130
Glass Sub-Assy, Front Door, Rh
[05.2001 - 10.2003] ACM2# ＊ＵＶＣＴＴ，厚さ＝４．０，グリーン |
68101-44130 |
— | ||
|
68102
|
68102
68102-44130
Glass Sub-Assy, Front Door, Lh
[05.2001 - 10.2003] ACM2# ＊ＵＶＣＴＴ，厚さ＝４．０，グリーン |
68102-44130 |
— | ||
|
68141C
|
68141C
68141-44040 Run, Front Door Glass, Rh[05.2001 - 10.2003] ACM2# |
68141-44040 |
US $46.53 |
||
|
68151C
|
68151C
68151-44040 Run, Front Door Glass, Lh[05.2001 - 10.2003] ACM2# |
68151-44040 |
US $43.53 |
||
|
68610B
|
68610B
68610-44020 Check Assy, Front Door, Rh[05.2001 - 10.2003] ACM2# |
68610-44020 |
US $52.42 |
||
|
68620
|
68620
68620-44010 Check Assy, Front Door, Lh[05.2001 - 10.2003] ACM2# |
68620-44010 |
US $52.42 |
||
|
68620
|
68620
68620-44020 Check Assy, Front Door, Lh[05.2001 - 10.2003] ACM2#..240I,240U ｳｴﾙｷﾔﾌﾞ |
68620-44020 |
US $41.50 |
||
|
75929
|
75929
75929-44010 Tape, Black Out Front Door, Inner Upper Rh[05.2001 - 10.2003] ACM2# |
75929-44010 |
US $31.45 |
||
|
75939
|
75939
75939-44010 Tape, Black Out Front Door, Inner Upper Lh[05.2001 - 10.2003] ACM2# |
75939-44010 |
US $31.45 |
||
|
75955B
|
75955B
75955-44011 Tape, Black Out Front Door, Outer Upper Rh[05.2001 - 10.2003] ACM2# |
75955-44011 |
US $35.38 |
||
|
75956B
|
75956B
75956-44011 Tape, Black Out Front Door, Outer Upper Lh[05.2001 - 10.2003] ACM2# |
75956-44011 |
US $35.38 |
||
|
75957C
|
75957C
75957-44011 Tape, Black Out Front Door, Outer Rear Rh[05.2001 - 02.2002] ACM2# |
75957-44011 |
US $52.12 |
||
| replacement | |||||
|
75957C
|
75957C
75957-44013 Tape, Black Out Front Door, Outer Rear Rh[05.2001 - 02.2002] ACM2# |
75957-44013 |
US $43.39 |
||
|
75957C
|
75957C
75957-44013 Tape, Black Out Front Door, Outer Rear Rh[02.2002 - 10.2003] ACM2# |
75957-44013 |
US $43.39 |
||
|
75958B
|
75958B
75958-44011 Tape, Black Out Front Door, Outer Rear Lh[05.2001 - 02.2002] ACM2# |
75958-44011 |
US $52.12 |
||
| replacement | |||||
|
75958B
|
75958B
75958-44013 Tape, Black Out Front Door, Outer Rear Lh[05.2001 - 02.2002] ACM2# |
75958-44013 |
from US $43.39 |
||
|
75958B
|
75958B
75958-44013 Tape, Black Out Front Door, Outer Rear Lh[02.2002 - 10.2003] ACM2# |
75958-44013 |
from US $43.39 |
||
|
75968
|
75968
75968-44010 Tape, Black Out Front Door, Inner Rear Rh[05.2001 - 10.2003] ACM2# |
75968-44010 |
US $19.80 |
||
|
75969
|
75969
75969-44010 Tape, Black Out Front Door, Inner Rear Lh[05.2001 - 10.2003] ACM2# |
75969-44010 |
US $19.80 |
||
|
6818712020
|
6818712020
68187-12020 Weatherstrip, Side Window Glass |
68187-12020 |
US $20.83 |
||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.78 |
||
|
9015960558
|
9015960558
90159-60558 SCREW WWASHER |
90159-60558 |
US $1.38 |
||
|
9054109006
|
9054109006
90541-09006 Cushion, Front Door Panel |
90541-09006 |
from US $1.70 |
||
|
9095001620
|
9095001620
90950-01620 PLUG HOLE |
90950-01620 |
from US $1.97 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $1.97 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.62 |
||
