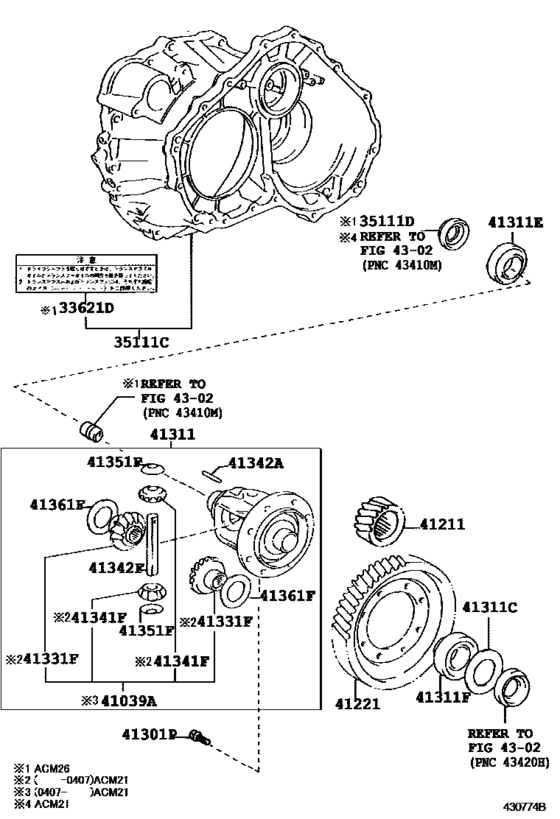

Front Axle Housing & Differential ([05.2001 - ] U140F,U241E (0105- )) Diagram Toyota IPSUM
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- ACM26
- grade
- 240S
- ENGINE
- 2AZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33621D
|
33621D
33621-16060 Label, Transaxle Oil Information[05.2001 - 10.2003] ACM26 |
33621-16060 |
US $1.02 |
||
|
33621D
|
33621D
33621-42010 Label, Transaxle Oil Information[07.2005 -] ACM26 |
33621-42010 |
US $1.89 |
||
|
35111C
|
35111C
35105-28041 Housing, Transaxle[05.2001 - 08.2001] ACM26 |
35105-28041 |
US $851.76 |
||
| replacement | |||||
|
35111C
|
35111C
35105-28043 Housing, Transaxle[05.2001 - 08.2001] ACM26 |
35105-28043 |
US $853.22 |
||
|
35111C
|
35111C
35105-28042 Housing, Transaxle[08.2001 - 10.2003] ACM26 |
35105-28042 |
US $853.22 |
||
| replacement | |||||
|
35111C
|
35111C
35105-28043 Housing, Transaxle[08.2001 - 10.2003] ACM26 |
35105-28043 |
US $853.22 |
||
|
35111C
|
35111C
35105-28043 Housing, Transaxle[06.2005 - 04.2007] ACM26 |
35105-28043 |
US $853.22 |
||
|
35111C
|
35111C
35105-28044 Housing, Transaxle[04.2007 -] ACM26 |
35105-28044 |
from US $591.14 |
||
|
35111D
|
35111D
90311-55003 Seal, Oil, No.1(For Front Transaxle Case)[05.2001 - 10.2003] ACM26 |
90311-55003 |
US $6.12 |
||
| replacement | |||||
|
35111D
|
35111D
90311-55005 Seal, Oil, No.1(For Front Transaxle Case)[05.2001 - 10.2003] ACM26 |
90311-55005 |
from US $10.93 |
||
|
35111D
|
35111D
90311-55005 Seal, Oil, No.1(For Front Transaxle Case)[11.2005 - 12.2009] ACM26 |
90311-55005 |
from US $10.93 |
||
|
41211
|
41211
41211-28100 Pinion, Differential Drive[05.2001 - 10.2003] ACM26 |
41211-28100 |
US $32.03 |
||
|
41221
|
41221
41221-28120 Gear, Front Differential Ring[05.2001 - 10.2003] ACM26 |
41221-28120 |
US $141.23 |
||
|
41301P
|
41301P
90105-12303 Bolt (For Front Differential Ring Gear Set)[05.2001 - 10.2003] ACM26 |
90105-12303 |
US $2.04 |
||
|
41311
|
41311
41301-28100
Case, Front Differential
[05.2001 - 10.2003] ACM26 |
41301-28100 |
— | ||
|
41311C
|
41311C
90564-79001
Shim (For Front Differential Case Rear)
[05.2001 - 10.2003] ACM26 厚さ＝２．００，マーク ０ |
90564-79001 |
— | ||
|
41311C
|
41311C
90564-79002 Shim (For Front Differential Case Rear)[05.2001 - 10.2003] ACM26 厚さ＝２．０５，マーク １ |
90564-79002 |
US $2.77 |
||
|
41311C
|
41311C
90564-79003 Shim (For Front Differential Case Rear)[05.2001 - 10.2003] ACM26 厚さ＝２．１０，マーク ２ |
90564-79003 |
US $2.77 |
||
|
41311C
|
41311C
90564-79004 Shim (For Front Differential Case Rear)[05.2001 - 10.2003] ACM26 厚さ＝２．１５，マーク ３ |
90564-79004 |
US $2.77 |
||
|
41311C
|
41311C
90564-79005 Shim (For Front Differential Case Rear)[05.2001 - 10.2003] ACM26 厚さ＝２．２０，マーク ４ |
90564-79005 |
US $2.77 |
||
|
41311C
|
41311C
90564-79006 Shim (For Front Differential Case Rear)[05.2001 - 10.2003] ACM26 厚さ＝２．２５，マーク ５ |
90564-79006 |
US $2.77 |
||
|
41311C
|
41311C
90564-79007 Shim (For Front Differential Case Rear)[05.2001 - 10.2003] ACM26 厚さ＝２．３０，マーク ６ |
90564-79007 |
US $2.77 |
||
|
41311C
|
41311C
90564-79008 Shim (For Front Differential Case Rear)[05.2001 - 10.2003] ACM26 厚さ＝２．３５，マーク ７ |
90564-79008 |
US $2.77 |
||
|
41311C
|
41311C
90564-79009 Shim (For Front Differential Case Rear)[05.2001 - 10.2003] ACM26 厚さ＝２．４０，マーク ８ |
90564-79009 |
US $2.77 |
||
|
41311C
|
41311C
90564-79010 Shim (For Front Differential Case Rear)[05.2001 - 10.2003] ACM26 厚さ＝２．４５，マーク ９ |
90564-79010 |
US $2.77 |
||
|
41311C
|
41311C
90564-79011 Shim (For Front Differential Case Rear)[05.2001 - 10.2003] ACM26 厚さ＝２．５０，マーク Ａ |
90564-79011 |
US $2.77 |
||
|
41311C
|
41311C
90564-79012 Shim (For Front Differential Case Rear)[05.2001 - 10.2003] ACM26 厚さ＝２．５５，マーク Ｂ |
90564-79012 |
US $2.77 |
||
|
41311C
|
41311C
90564-79013 Shim (For Front Differential Case Rear)[05.2001 - 10.2003] ACM26 厚さ＝２．６０，マーク Ｃ |
90564-79013 |
US $2.77 |
||
|
41311C
|
41311C
90564-79014 Shim (For Front Differential Case Rear)[05.2001 - 10.2003] ACM26 厚さ＝２．６５，マーク Ｄ |
90564-79014 |
US $2.77 |
||
|
41311C
|
41311C
90564-79015 Shim (For Front Differential Case Rear)[05.2001 - 10.2003] ACM26 厚さ＝２．７０，マーク Ｅ |
90564-79015 |
US $2.77 |
||
|
41311C
|
41311C
90564-79016 Shim (For Front Differential Case Rear)[05.2001 - 10.2003] ACM26 厚さ＝２．７５，マーク Ｆ |
90564-79016 |
US $2.77 |
||
|
41311C
|
41311C
90564-79017 Shim (For Front Differential Case Rear)[05.2001 - 10.2003] ACM26 厚さ＝２．８０，マーク Ｇ |
90564-79017 |
US $2.77 |
||
|
41311C
|
41311C
90564-79018 Shim (For Front Differential Case Rear)[05.2001 - 10.2003] ACM26 厚さ＝２．８５，マーク Ｈ |
90564-79018 |
US $2.77 |
||
|
41311C
|
41311C
90564-79090 Shim (For Front Differential Case Rear)[12.2005 - 06.2007] ACM26..06S 厚さ＝２．０２５，マーク Ｊ |
90564-79090 |
US $2.77 |
||
|
41311C
|
41311C
90564-79091 Shim (For Front Differential Case Rear)[12.2005 - 06.2007] ACM26..06S 厚さ＝２．０７５，マーク Ｋ |
90564-79091 |
US $2.77 |
||
|
41311C
|
41311C
90564-79092 Shim (For Front Differential Case Rear)[12.2005 - 06.2007] ACM26..06S 厚さ＝２．１２５，マーク Ｌ |
90564-79092 |
US $2.77 |
||
|
41311C
|
41311C
90564-79093 Shim (For Front Differential Case Rear)[12.2005 - 06.2007] ACM26..06S 厚さ＝２．１７５，マーク Ｍ |
90564-79093 |
US $2.77 |
||
|
41311C
|
41311C
90564-79094 Shim (For Front Differential Case Rear)[12.2005 - 06.2007] ACM26..06S 厚さ＝２．２２５，マーク Ｎ |
90564-79094 |
US $2.77 |
||
|
41311C
|
41311C
90564-79095 Shim (For Front Differential Case Rear)[12.2005 - 06.2007] ACM26..06S 厚さ＝２．２７５，マーク Ｐ |
90564-79095 |
US $2.77 |
||
|
41311C
|
41311C
90564-79096 Shim (For Front Differential Case Rear)[12.2005 - 06.2007] ACM26..06S 厚さ＝２．３２５，マーク Ｑ |
90564-79096 |
US $2.77 |
||
|
41311C
|
41311C
90564-79097 Shim (For Front Differential Case Rear)[12.2005 - 06.2007] ACM26..06S 厚さ＝２．３７５，マーク Ｒ |
90564-79097 |
US $2.77 |
||
|
41311C
|
41311C
90564-79098 Shim (For Front Differential Case Rear)[12.2005 - 06.2007] ACM26..06S 厚さ＝２．４２５，マーク Ｓ |
90564-79098 |
US $2.77 |
||
|
41311C
|
41311C
90564-79099 Shim (For Front Differential Case Rear)[12.2005 - 06.2007] ACM26..06S 厚さ＝２．４７５，マーク Ｔ |
90564-79099 |
US $2.77 |
||
|
41311C
|
41311C
90564-79100 Shim (For Front Differential Case Rear)[12.2005 - 06.2007] ACM26..06S 厚さ＝２．５２５，マーク Ｕ |
90564-79100 |
US $2.77 |
||
|
41311C
|
41311C
90564-79101 Shim (For Front Differential Case Rear)[12.2005 - 06.2007] ACM26..06S 厚さ＝２．５７５，マーク Ｖ |
90564-79101 |
US $2.77 |
||
|
41311C
|
41311C
90564-79102 Shim (For Front Differential Case Rear)[12.2005 - 06.2007] ACM26..06S 厚さ＝２．６２５，マーク Ｗ |
90564-79102 |
US $2.77 |
||
|
41311C
|
41311C
90564-79103 Shim (For Front Differential Case Rear)[12.2005 - 06.2007] ACM26..06S 厚さ＝２．６７５，マーク Ｘ |
90564-79103 |
US $2.77 |
||
|
41311C
|
41311C
90564-79104 Shim (For Front Differential Case Rear)[12.2005 - 06.2007] ACM26..06S 厚さ＝２．７２５，マーク Ｙ |
90564-79104 |
US $2.77 |
||
|
41311C
|
41311C
90564-79105 Shim (For Front Differential Case Rear)[12.2005 - 06.2007] ACM26..06S 厚さ＝２．７７５，マーク ＡＡ |
90564-79105 |
US $2.77 |
||
|
41311C
|
41311C
90564-79106 Shim (For Front Differential Case Rear)[12.2005 - 06.2007] ACM26..06S 厚さ＝２．８２５，マーク ＡＢ |
90564-79106 |
US $2.77 |
||
|
41311E
|
41311E
90366-62004 Bearing, Tapered Roller (For Front Differential Case Front)[05.2001 - 10.2003] ACM26 |
90366-62004 |
from US $40.54 |
||
|
41311F
|
41311F
90366-50057
Bearing, Tapered Roller (For Front Differential Case Front)
[05.2001 - 10.2003] ACM26 |
90366-50057 |
— | ||
| replacements | |||||
|
41311F
|
41311F
04419-33010 BEARING KIT, FR[05.2001 - 10.2003] ACM26 |
04419-33010 |
US $100.46 |
||
|
41311F
|
41311F
90366-50106 Bearing, Tapered Roller (For Front Differential Case Front)[05.2001 - 10.2003] ACM26 |
90366-50106 |
from US $26.38 |
||
|
41311F
|
41311F
90366-50106 Bearing, Tapered Roller (For Front Differential Case Front)[11.2005 - 12.2009] ACM26 |
90366-50106 |
from US $26.38 |
||
|
41331F
|
41331F
41331-33010 Gear, Front Differential Side[05.2001 - 10.2003] ACM26 |
41331-33010 |
US $75.71 |
||
| replacement | |||||
|
41331F
|
41331F
41039-45H00 Gear, Front Differential Side[05.2001 - 10.2003] ACM26 |
41039-45H00 |
from US $214.03 |
||
|
41331F
|
41331F
41331-48050 Gear, Front Differential Side[04.2004 - 12.2009] ACM26 |
41331-48050 |
from US $52.27 |
||
|
41341F
|
41341F
41341-48010 Pinion, Front Differential[05.2001 - 10.2003] ACM26 |
41341-48010 |
US $37.56 |
||
| replacement | |||||
|
41341F
|
41341F
41039-45H00 Gear, Front Differential Side[05.2001 - 10.2003] ACM26 |
41039-45H00 |
from US $214.03 |
||
|
41341F
|
41341F
41341-48040 Pinion, Front Differential[04.2004 - 12.2009] ACM26 |
41341-48040 |
US $26.06 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[05.2001 - 10.2003] ACM2# |
90250-06058 |
from US $1.87 |
||
|
41342F
|
41342F
41342-28020 Shaft, Front Differential Pinion, No.1[05.2001 - 10.2003] ACM26 |
41342-28020 |
US $21.69 |
||
|
41351F
|
41351F
41351-33011 Washer, Front Differential Pinion Thrust[05.2001 - 10.2003] ACM26 |
41351-33011 |
US $2.91 |
||
|
41361F
|
41361F
41361-33010 Washer, Front Differential Side Gear Thrust, No.1[05.2001 - 10.2003] ACM26 厚さ＝１．６２５ |
41361-33010 |
from US $4.08 |
||
|
41361F
|
41361F
41362-33080 Washer, Front Differential Side Gear Thrust, No.1[05.2001 - 10.2003] ACM26 厚さ＝１．７２５ |
41362-33080 |
US $4.22 |
||
|
41361F
|
41361F
41363-33010 Washer, Front Differential Side Gear Thrust, No.1[05.2001 - 10.2003] ACM26 厚さ＝１．８２５ |
41363-33010 |
US $4.51 |
||
