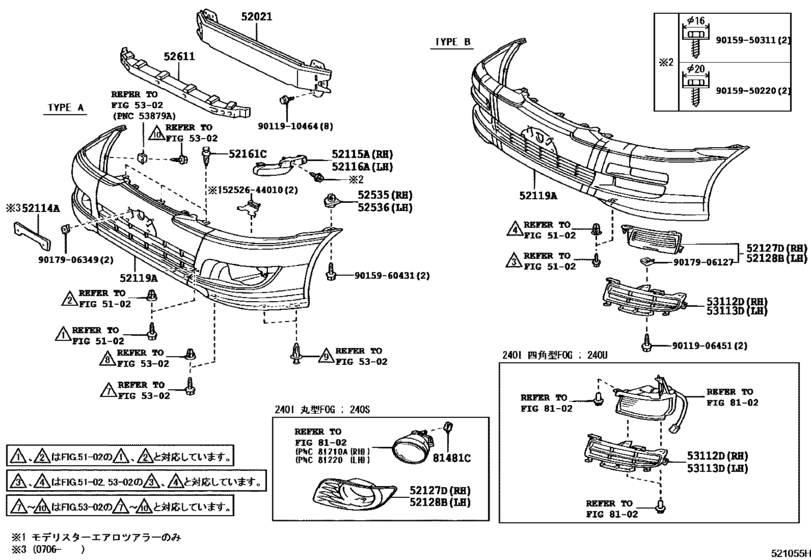

Front Bumper & Bumper Stay ([10.2003 - ] (0310- )) Diagram Toyota IPSUM
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- ACM26
- grade
- 240S
- ENGINE
- 2AZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021
|
52021
52021-44010 Reinforcement Sub-Assy, Front Bumper[05.2001 - 10.2003] ACM2# |
52021-44010 |
US $275.30 |
||
|
52115A
|
52115A
52115-44040 Support, Front Bumper Side, Rh[05.2001 - 10.2003] ACM2# |
52115-44040 |
US $57.96 |
||
|
52115A
|
52115A
52115-44060 Support, Front Bumper Side, Rh[10.2003 -] ACM2# |
52115-44060 |
from US $52.38 |
||
|
52116A
|
52116A
52116-44040 Support, Front Bumper Side, Lh[05.2001 - 10.2003] ACM2# |
52116-44040 |
US $57.96 |
||
|
52116A
|
52116A
52116-44060 Support, Front Bumper Side, Lh[10.2003 -] ACM2# |
52116-44060 |
from US $50.91 |
||
|
52119A
|
52119A
52119-44230-A0 Cover, Front Bumper[05.2001 - 06.2002] ACM2#..240S ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ),SUPER WHITE 2,040 |
52119-44230-A0 |
US $1,161.89 |
||
|
52119A
|
52119A
52119-44230-B0 Cover, Front Bumper[05.2001 - 06.2002] ACM2#..240S ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ),SILVER ME.,1C0 |
52119-44230-B0 |
US $1,161.89 |
||
|
52119A
|
52119A
52119-44230-B1 Cover, Front Bumper[05.2001 - 06.2002] ACM2#..240S ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ),DARK GRAY M.M.,1E2 |
52119-44230-B1 |
US $1,161.89 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44937 Cover, Front Bumper[05.2001 - 06.2002] ACM2#..240S ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ),DARK GRAY M.M.,1E2 |
52119-44937 |
from US $174 |
||
|
52119A
|
52119A
52119-44230-J0 Cover, Front Bumper[05.2001 - 06.2002] ACM2#..240S ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ),DK.BLUE M.M.,8P4 |
52119-44230-J0 |
US $1,161.89 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44937 Cover, Front Bumper[05.2001 - 06.2002] ACM2#..240S ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ),DK.BLUE M.M.,8P4 |
52119-44937 |
from US $174 |
||
|
52119A
|
52119A
52119-44240-A0 Cover, Front Bumper[05.2001 - 06.2002] ACM2#..240S ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ & ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ),SUPER WHITE 2,040 |
52119-44240-A0 |
US $1,183.73 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44938 Cover, Front Bumper[05.2001 - 06.2002] ACM2#..240S ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ & ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ),SUPER WHITE 2,040 |
52119-44938 |
from US $326.41 |
||
|
52119A
|
52119A
52119-44240-B0 Cover, Front Bumper[05.2001 - 06.2002] ACM2#..240S ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ & ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ),SILVER ME.,1C0 |
52119-44240-B0 |
US $1,183.73 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44938 Cover, Front Bumper[05.2001 - 06.2002] ACM2#..240S ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ & ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ),SILVER ME.,1C0 |
52119-44938 |
from US $326.41 |
||
|
52119A
|
52119A
52119-44240-B1 Cover, Front Bumper[05.2001 - 06.2002] ACM2#..240S ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ & ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ),DARK GRAY M.M.,1E2 |
52119-44240-B1 |
US $1,183.73 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44938 Cover, Front Bumper[05.2001 - 06.2002] ACM2#..240S ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ & ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ),DARK GRAY M.M.,1E2 |
52119-44938 |
from US $326.41 |
||
|
52119A
|
52119A
52119-44240-J0 Cover, Front Bumper[05.2001 - 06.2002] ACM2#..240S ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ & ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ),DK.BLUE M.M.,8P4 |
52119-44240-J0 |
US $1,183.73 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44938 Cover, Front Bumper[05.2001 - 06.2002] ACM2#..240S ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ & ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ),DK.BLUE M.M.,8P4 |
52119-44938 |
from US $326.41 |
||
|
52119A
|
52119A
52119-44360-A0 Cover, Front Bumper[10.2003 - 12.2006] ACM2#..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER WHITE 2,040 |
52119-44360-A0 |
US $1,166.26 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44361-A0 Cover, Front Bumper[10.2003 - 12.2006] ACM2#..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER WHITE 2,040 |
52119-44361-A0 |
US $969.70 |
||
|
52119A
|
52119A
52119-44360-B0 Cover, Front Bumper[10.2003 - 12.2006] ACM2#..240I,240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER ME.,1D4 |
52119-44360-B0 |
US $1,166.26 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44361-B0 Cover, Front Bumper[10.2003 - 12.2006] ACM2#..240I,240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER ME.,1D4 |
52119-44361-B0 |
US $969.70 |
||
|
52119A
|
52119A
52119-44360-C0 Cover, Front Bumper[10.2003 - 12.2006] ACM2#..240I,240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,202 |
52119-44360-C0 |
US $1,166.26 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44361-C0 Cover, Front Bumper[10.2003 - 12.2006] ACM2#..240I,240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,202 |
52119-44361-C0 |
US $969.70 |
||
|
52119A
|
52119A
52119-44360-D0 Cover, Front Bumper[10.2003 - 12.2006] ACM2#..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER RED 5,3P0 |
52119-44360-D0 |
US $1,166.26 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44933 Cover, Front Bumper[10.2003 - 12.2006] ACM2#..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER RED 5,3P0 |
52119-44933 |
US $701.79 |
||
|
52119A
|
52119A
52119-44360-F0 Cover, Front Bumper[10.2003 - 12.2006] ACM2#..240I,240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,YELLOW M.M.,580 |
52119-44360-F0 |
US $1,166.26 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44933 Cover, Front Bumper[10.2003 - 12.2006] ACM2#..240I,240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,YELLOW M.M.,580 |
52119-44933 |
US $701.79 |
||
|
52119A
|
52119A
52119-44361-A0 Cover, Front Bumper[01.2007 - 06.2007] ACM2#..06S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER WHITE 2,040 |
52119-44361-A0 |
US $969.70 |
||
|
52119A
|
52119A
52119-44361-B0 Cover, Front Bumper[01.2007 - 06.2007] ACM2#..06S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER ME.,1D4 |
52119-44361-B0 |
US $969.70 |
||
|
52119A
|
52119A
52119-44361-C0 Cover, Front Bumper[01.2007 - 06.2007] ACM2#..06S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,202 |
52119-44361-C0 |
US $969.70 |
||
|
52119A
|
52119A
52119-44361-D0 Cover, Front Bumper[01.2007 - 06.2007] ACM2#..07S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER RED 5,3P0; ACM2#..06S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER RED 5,3P0 |
52119-44361-D0 |
US $1,166.26 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44933 Cover, Front Bumper[01.2007 - 06.2007] ACM2#..07S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER RED 5,3P0; ACM2#..06S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER RED 5,3P0 |
52119-44933 |
US $701.79 |
||
|
52119A
|
52119A
52119-44361-F0 Cover, Front Bumper[01.2007 - 06.2007] ACM2#..06S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,YELLOW M.M.,580; ACM2#..07S..(240I,240S) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,YELLOW M.M.,580 |
52119-44361-F0 |
US $1,166.26 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44933 Cover, Front Bumper[01.2007 - 06.2007] ACM2#..06S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,YELLOW M.M.,580; ACM2#..07S..(240I,240S) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,YELLOW M.M.,580 |
52119-44933 |
US $701.79 |
||
|
52119A
|
52119A
52119-44370-A0 Cover, Front Bumper[10.2003 - 12.2006] ACM2#..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SUPER WHITE 2,040 |
52119-44370-A0 |
US $1,185.18 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44942 Cover, Front Bumper[10.2003 - 12.2006] ACM2#..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SUPER WHITE 2,040 |
52119-44942 |
US $711.98 |
||
|
52119A
|
52119A
52119-44370-B0 Cover, Front Bumper[10.2003 - 12.2006] ACM2#..240I,240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SILVER ME.,1D4 |
52119-44370-B0 |
US $1,185.18 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44942 Cover, Front Bumper[10.2003 - 12.2006] ACM2#..240I,240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SILVER ME.,1D4 |
52119-44942 |
US $711.98 |
||
|
52119A
|
52119A
52119-44370-C0 Cover, Front Bumper[10.2003 - 12.2006] ACM2#..240I,240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),BLACK,202 |
52119-44370-C0 |
US $1,185.18 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44942 Cover, Front Bumper[10.2003 - 12.2006] ACM2#..240I,240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),BLACK,202 |
52119-44942 |
US $711.98 |
||
|
52119A
|
52119A
52119-44370-D0 Cover, Front Bumper[10.2003 - 12.2006] ACM2#..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SUPER RED 5,3P0 |
52119-44370-D0 |
US $1,185.18 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44942 Cover, Front Bumper[10.2003 - 12.2006] ACM2#..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SUPER RED 5,3P0 |
52119-44942 |
US $711.98 |
||
|
52119A
|
52119A
52119-44370-F0 Cover, Front Bumper[10.2003 - 12.2006] ACM2#..240I,240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),YELLOW M.M.,580 |
52119-44370-F0 |
US $1,185.18 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44942 Cover, Front Bumper[10.2003 - 12.2006] ACM2#..240I,240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),YELLOW M.M.,580 |
52119-44942 |
US $711.98 |
||
|
52119A
|
52119A
52119-44371-A0 Cover, Front Bumper[01.2007 - 06.2007] ACM2#..06S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SUPER WHITE 2,040 |
52119-44371-A0 |
US $987.17 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44942 Cover, Front Bumper[01.2007 - 06.2007] ACM2#..06S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SUPER WHITE 2,040 |
52119-44942 |
US $711.98 |
||
|
52119A
|
52119A
52119-44371-B0 Cover, Front Bumper[01.2007 - 06.2007] ACM2#..06S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SILVER ME.,1D4 |
52119-44371-B0 |
US $987.17 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44942 Cover, Front Bumper[01.2007 - 06.2007] ACM2#..06S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SILVER ME.,1D4 |
52119-44942 |
US $711.98 |
||
|
52119A
|
52119A
52119-44371-C0 Cover, Front Bumper[01.2007 - 06.2007] ACM2#..06S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),BLACK,202 |
52119-44371-C0 |
US $987.17 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44942 Cover, Front Bumper[01.2007 - 06.2007] ACM2#..06S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),BLACK,202 |
52119-44942 |
US $711.98 |
||
|
52119A
|
52119A
52119-44371-D0 Cover, Front Bumper[01.2007 - 06.2007] ACM2#..07S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SUPER RED 5,3P0; ACM2#..06S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SUPER RED 5,3P0 |
52119-44371-D0 |
US $1,185.18 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44942 Cover, Front Bumper[01.2007 - 06.2007] ACM2#..07S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SUPER RED 5,3P0; ACM2#..06S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SUPER RED 5,3P0 |
52119-44942 |
US $711.98 |
||
|
52119A
|
52119A
52119-44371-F0 Cover, Front Bumper[01.2007 - 06.2007] ACM2#..06S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),YELLOW M.M.,580; ACM2#..07S..(240I,240S) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),YELLOW M.M.,580 |
52119-44371-F0 |
US $1,185.18 |
||
| replacement | |||||
|
52119A
|
52119A
52119-44942 Cover, Front Bumper[01.2007 - 06.2007] ACM2#..06S..240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),YELLOW M.M.,580; ACM2#..07S..(240I,240S) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),YELLOW M.M.,580 |
52119-44942 |
US $711.98 |
||
|
52127D
|
52127D
52127-44060 Cover, Front Bumper Hole, Rh[10.2003 - 12.2006] ACM2#..240I,240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
52127-44060 |
US $32.61 |
||
|
52128B
|
52128B
52128-44070 Cover, Front Bumper Hole, Lh[10.2003 - 12.2006] ACM2#..240I,240S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
52128-44070 |
US $32.61 |
||
|
52161C
|
52161C
52161-16010 Clip[05.2001 - 10.2003] ACM2# |
52161-16010 |
from US $1.72 |
||
| replacements | |||||
|
52161C
|
52161C
52161-0K040 Clip[05.2001 - 10.2003] ACM2# |
52161-0K040 |
from US $1.50 |
||
|
52161C
|
52161C
52161-02020 Clip[05.2001 - 10.2003] ACM2# |
52161-02020 |
US $5.27 |
||
|
52535
|
52535
52535-44040 Retainer, Front Bumper Side, Rh[05.2001 - 10.2003] ACM2# |
52535-44040 |
US $12.19 |
||
|
52536
|
52536
52536-44040 Retainer, Front Bumper Side, Lh[05.2001 - 10.2003] ACM2# |
52536-44040 |
US $12.19 |
||
|
52611
|
52611
52611-44020 Absorber, Front Bumper Energy[10.2003 -] ACM2# |
52611-44020 |
US $101.34 |
||
|
81481C
|
81481C
81481-44020 Bracket, Fog Lamp[10.2003 - 12.2006] ACM2#..240I,240S |
81481-44020 |
US $13.62 |
||
|
5252644010
|
5252644010
52526-44010 Retainer, Front Bumper, Lower Side |
52526-44010 |
US $8.74 |
||
|
9011906451
|
9011906451
90119-06451 BOLT WWASHER |
90119-06451 |
US $1.25 |
||
|
9011910464
|
9011910464
90119-10464 BOLTWWASHER |
90119-10464 |
US $2.75 |
||
|
9015950220
|
9015950220
90159-50220 New Genuine Part |
90159-50220 |
US $1.51 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.72 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.74 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $0.68 |
||
|
9017906349
|
9017906349
90179-06349 NUT |
90179-06349 |
from US $1.31 |
||
