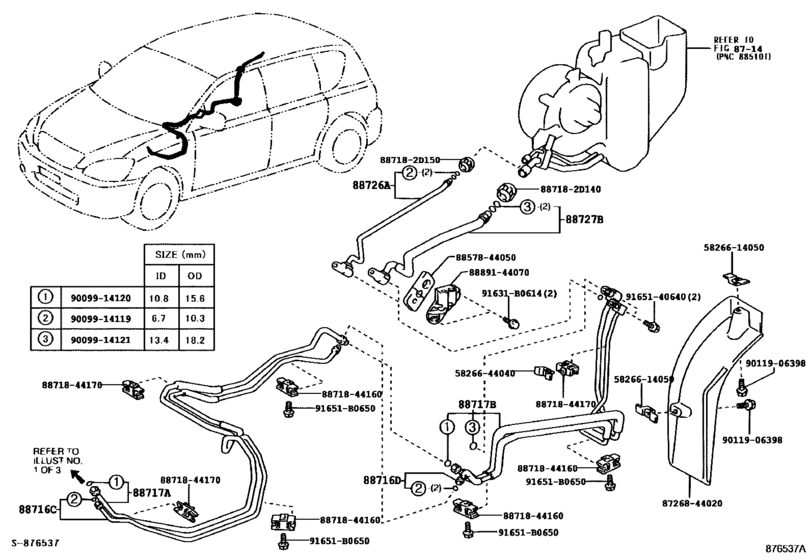

Heating & Air Conditioning - Cooler Piping ([10.2003 - ] ﾘﾔ (0310- )) Diagram Toyota IPSUM
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- ACM26
- grade
- 240S
- ENGINE
- 2AZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88716C
|
88716C
88710-44531
Pipe, Cooler Refrigerant Liquid, C
[05.2001 - 10.2003] ACM2# |
88710-44531 |
— | ||
|
88716C
|
88716C
88710-44541 Pipe, Cooler Refrigerant Liquid, C[05.2001 - 10.2003] ACM2# ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
88710-44541 |
US $435.34 |
||
|
88716C
|
88716C
88716-44531 Pipe, Cooler Refrigerant Liquid, C[10.2003 - 06.2007] ACM2#..06S |
88716-44531 |
US $135.41 |
||
|
88716D
|
88716D
88710-44560
Pipe, Cooler Refrigerant Liquid, D
[05.2001 - 10.2003] ACM2# |
88710-44560 |
— | ||
|
88716D
|
88716D
88716-44550
Pipe, Cooler Refrigerant Liquid, D
[10.2003 - 06.2007] ACM2#..06S |
88716-44550 |
— | ||
|
88717A
|
88717A
88717-44240 Pipe, Cooler Refrigerant Suction, A[10.2003 - 06.2007] ACM2#..06S |
88717-44240 |
US $214.03 |
||
|
88717B
|
88717B
88717-44250
Pipe, Cooler Refrigerant Suction, B
[10.2003 - 06.2007] ACM2#..06S |
88717-44250 |
— | ||
|
88726A
|
88726A
88716-44490 Pipe, Cooler Refrigerant Liquid, A[05.2001 - 10.2003] ACM2# |
88716-44490 |
US $63.96 |
||
|
88727B
|
88727B
88717-44160 Pipe, Cooler Refrigerant Suction, B[05.2001 - 10.2003] ACM2# |
88717-44160 |
US $99.01 |
||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.86 |
||
|
91651B0650
|
91651B0650
91651-B0650 New Genuine Part |
91651-B0650 |
US $1.38 |
||
|
887182D140
|
887182D140
88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D140 |
from US $6.46 |
||
|
887182D150
|
887182D150
88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D150 |
from US $5.69 |
||
|
5826614050
|
5826614050
58266-14050 Bracket, Center Floor Heat Insulator |
58266-14050 |
US $2.91 |
||
|
5826644040
|
5826644040
58266-44040 Bracket, Console Box Support, Front |
58266-44040 |
US $3.93 |
||
|
8726844020
|
8726844020
87268-44020 Cock, Water Hose Drain(for Rear Heater) |
87268-44020 |
US $52.85 |
||
|
8857844050
|
8857844050
88578-44050
Paking, Cooler Air Duct
|
88578-44050 |
— | ||
|
8871844160
|
8871844160
88718-44160
Clamp(For Cooler Refrigerant Pipe), No.1
|
88718-44160 |
— | ||
|
8871844170
|
8871844170
88718-44170
Clamp(For Cooler Refrigerant Pipe), No.2
|
88718-44170 |
— | ||
|
8889144070
|
8889144070
88891-44070
Cover, Cooler, No.1
|
88891-44070 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.70 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.09 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9011906398
|
9011906398
90119-06398 BOLT WWASHER |
90119-06398 |
US $1.43 |
||
|
9165140640
|
9165140640
91651-40640 New Genuine Part |
91651-40640 |
US $1.43 |
||
