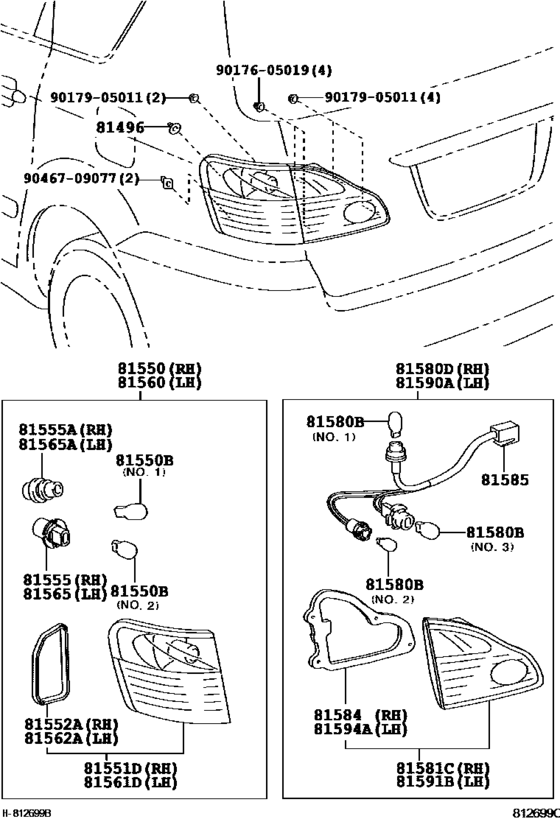

Rear Combination Lamp ([10.2003 - 08.2005] (0310-0508)) Diagram Toyota IPSUM
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- ACM26
- grade
- 240S
- ENGINE
- 2AZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496
|
81496
81496-44030 Guide, Rear Combination Lamp[05.2001 - 10.2003] ACM2# |
81496-44030 |
US $2.87 |
||
|
81550
|
81550
81550-44080 Lamp Assy, Rear Combination, Rh[05.2001 - 10.2003] ACM2#..240S |
81550-44080 |
US $282.46 |
||
|
81550
|
81550
81550-44150 Lamp Assy, Rear Combination, Rh[10.2003 -] ACM2#..240S |
81550-44150 |
US $235.87 |
||
|
81550B
|
81550B
90981-11048
Bulb(For Rear Combination Lamp)
[05.2001 - 10.2003] ACM2# １２Ｖ ２１／５Ｗ,ＮＯ．２ |
90981-11048 |
— | ||
| replacement | |||||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[05.2001 - 10.2003] ACM2# １２Ｖ ２１／５Ｗ,ＮＯ．２ |
90981-13044 |
from US $3.55 |
||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[10.2003 -] ACM2# １２Ｖ ２１／５Ｗ,ＮＯ．２ |
90981-13044 |
from US $3.55 |
||
|
81550B
|
81550B
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[05.2001 - 10.2003] ACM2# １２Ｖ ２１Ｗ，アンバー,ＮＯ．１ |
90981-15011 |
from US $4.60 |
||
|
81551D
|
81551D
81551-44080 Lens & Body, Rear Combination Lamp, Rh[05.2001 - 10.2003] ACM2#..240S |
81551-44080 |
US $262.08 |
||
|
81551D
|
81551D
81551-44150 Lens & Body, Rear Combination Lamp, Rh[10.2003 -] ACM2#..240S |
81551-44150 |
US $218.40 |
||
|
81552A
|
81552A
81552-44160 Gasket, Rear Combination Lamp, Rh[05.2001 - 10.2003] ACM2# |
81552-44160 |
US $11.36 |
||
|
81555
|
81555
90075-60002 Socket, Tail & Stop Lamp[05.2001 - 10.2003] ACM2# |
90075-60002 |
from US $4.02 |
||
|
81555A
|
81555A
90075-60026 Socket, Front Turn Signal Lamp[05.2001 - 10.2003] ACM2# |
90075-60026 |
from US $6.71 |
||
|
81560
|
81560
81560-44080 Lamp Assy, Rear Combination, Lh[05.2001 - 10.2003] ACM2#..240S |
81560-44080 |
US $282.46 |
||
|
81560
|
81560
81560-44150 Lamp Assy, Rear Combination, Lh[10.2003 -] ACM2#..240S |
81560-44150 |
US $235.87 |
||
|
81561D
|
81561D
81561-44080 Lens & Body, Rear Combination Lamp, Lh[05.2001 - 10.2003] ACM2#..240S |
81561-44080 |
from US $167.47 |
||
|
81561D
|
81561D
81561-44150 Lens & Body, Rear Combination Lamp, Lh[10.2003 -] ACM2#..240S |
81561-44150 |
US $218.40 |
||
|
81562A
|
81562A
81562-44160 Gasket, Rear Combination Lamp, Lh[05.2001 - 10.2003] ACM2# |
81562-44160 |
US $13.28 |
||
|
81565
|
81565
90075-60002 Socket, Tail & Stop Lamp[05.2001 - 10.2003] ACM2# |
90075-60002 |
from US $4.02 |
||
|
81565A
|
81565A
90075-60026 Socket, Front Turn Signal Lamp[05.2001 - 10.2003] ACM2# |
90075-60026 |
from US $6.71 |
||
|
81580B
|
81580B
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[05.2001 - 10.2003] ACM2# １２Ｖ １６Ｗ,ＮＯ．１ |
90981-11059 |
from US $3.24 |
||
|
81580B
|
81580B
90981-13043 Bulb (12V 21W)[05.2001 - 10.2003] ACM2# １２Ｖ ２１Ｗ,ＮＯ．３ |
90981-13043 |
from US $3.24 |
||
|
81580B
|
81580B
99132-12050 Bulb (12V 5W)[05.2001 - 10.2003] ACM2# １２Ｖ ５Ｗ,ＮＯ．２ |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81580B
|
81580B
90080-81053 Bulb(For Clearance Lamp)[05.2001 - 10.2003] ACM2# １２Ｖ ５Ｗ,ＮＯ．２ |
90080-81053 |
US $1.01 |
||
|
81580D
|
81580D
81580-44090 Lamp Assy, Rear, Rh[05.2001 - 10.2003] ACM2#..240S |
81580-44090 |
US $193.65 |
||
|
81580D
|
81580D
81580-44100 Lamp Assy, Rear, Rh[05.2001 - 10.2003] ACM2#..240S ｱﾘ(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ) |
81580-44100 |
US $193.65 |
||
|
81580D
|
81580D
81580-44130 Lamp Assy, Rear, Rh[10.2003 - 08.2005] ACM2#..240S |
81580-44130 |
US $196.56 |
||
|
81580D
|
81580D
81580-44150 Lamp Assy, Rear, Rh[10.2003 -] ACM2#..240S ｱﾘ(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ) |
81580-44150 |
US $161.62 |
||
|
81580D
|
81580D
81580-44220 Lamp Assy, Rear, Rh[08.2005 -] ACM2#..240S |
81580-44220 |
US $148.51 |
||
|
81581C
|
81581C
81581-44090 Lens And Body, Rear Lamp, Rh[05.2001 - 10.2003] ACM2#..240S |
81581-44090 |
from US $155.79 |
||
|
81581C
|
81581C
81581-44100 Lens And Body, Rear Lamp, Rh[05.2001 - 10.2003] ACM2#..240S ｱﾘ(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ) |
81581-44100 |
US $155.79 |
||
|
81581C
|
81581C
81581-44130 Lens And Body, Rear Lamp, Rh[10.2003 - 08.2005] ACM2#..240S |
81581-44130 |
US $157.25 |
||
|
81581C
|
81581C
81581-44150 Lens And Body, Rear Lamp, Rh[10.2003 -] ACM2#..240S ｱﾘ(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ) |
81581-44150 |
from US $98.73 |
||
|
81581C
|
81581C
81581-44220 Lens And Body, Rear Lamp, Rh[08.2005 -] ACM2#..240S |
81581-44220 |
US $129.58 |
||
|
81584
|
81584
81584-44120 Packing, Rear Lamp Rh[10.2003 -] ACM2# |
81584-44120 |
US $12.23 |
||
|
81585
|
81585
81585-44050 Socket & Wire, Rear Lamp[05.2001 - 10.2003] ACM2# |
81585-44050 |
US $33.20 |
||
|
81585
|
81585
81585-44120 Socket & Wire, Rear Lamp[10.2003 - 08.2005] ACM2# |
81585-44120 |
US $27.66 |
||
|
81585
|
81585
81585-44160 Socket & Wire, Rear Lamp[08.2005 -] ACM2# |
81585-44160 |
US $22.71 |
||
|
81590A
|
81590A
81590-44090 Lamp Assy, Rear, Lh[05.2001 - 10.2003] ACM2#..240S |
81590-44090 |
US $193.65 |
||
|
81590A
|
81590A
81590-44100 Lamp Assy, Rear, Lh[05.2001 - 10.2003] ACM2#..240S ｱﾘ(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ) |
81590-44100 |
US $193.65 |
||
|
81590A
|
81590A
81590-44130 Lamp Assy, Rear, Lh[10.2003 - 08.2005] ACM2#..240S |
81590-44130 |
US $196.56 |
||
|
81590A
|
81590A
81590-44150 Lamp Assy, Rear, Lh[10.2003 -] ACM2#..240S ｱﾘ(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ) |
81590-44150 |
US $161.62 |
||
|
81590A
|
81590A
81590-44200 Lamp Assy, Rear, Lh[08.2005 -] ACM2#..240S |
81590-44200 |
US $148.51 |
||
|
81591B
|
81591B
81591-44090 Lens And Body, Rear Lamp, Lh[05.2001 - 10.2003] ACM2#..240S |
81591-44090 |
from US $155.79 |
||
|
81591B
|
81591B
81591-44100 Lens And Body, Rear Lamp, Lh[05.2001 - 10.2003] ACM2#..240S ｱﾘ(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ) |
81591-44100 |
US $175.48 |
||
|
81591B
|
81591B
81591-44130 Lens And Body, Rear Lamp, Lh[10.2003 - 08.2005] ACM2#..240S |
81591-44130 |
US $157.25 |
||
|
81591B
|
81591B
81591-44150 Lens And Body, Rear Lamp, Lh[10.2003 -] ACM2#..240S ｱﾘ(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ) |
81591-44150 |
US $129.58 |
||
|
81591B
|
81591B
81591-44200 Lens And Body, Rear Lamp, Lh[08.2005 -] ACM2#..240S |
81591-44200 |
US $129.58 |
||
|
81594A
|
81594A
81594-44120 Gasket, Rear Lamp Lh[10.2003 -] ACM2# |
81594-44120 |
US $12.23 |
||
|
9017605019
|
9017605019
90176-05019 NUT CAP |
90176-05019 |
US $1.79 |
||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
|
9046709077
|
9046709077
90467-09077 Clip(For Rear Combination Lamp) |
90467-09077 |
from US $0.76 |
||
