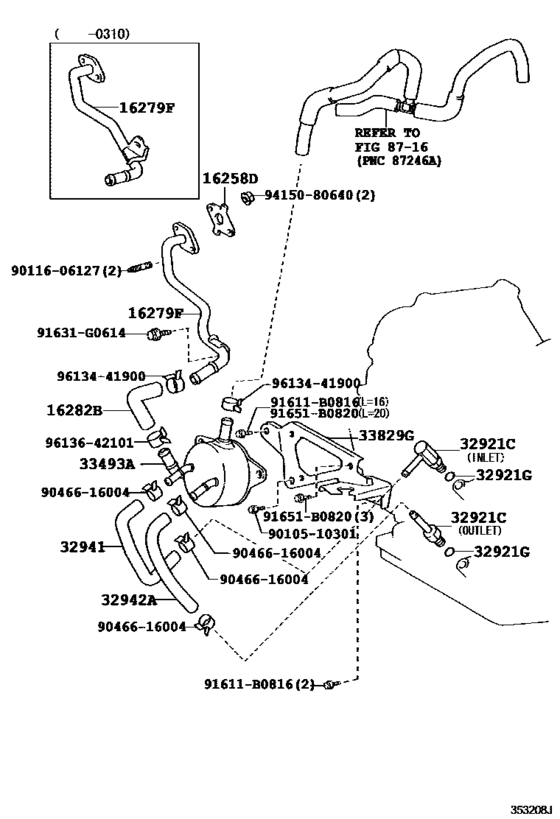

Oil Cooler & Tube (Atm) ([05.2001 - ] U140F,U241E (0105- )) Diagram Toyota IPSUM
- Year
- 2001 - 2009
- Sales region
- Japan
- Frame
- ACM26
- grade
- 240I
- ENGINE
- 2AZFE
- From
- 05.2001
- To
- 12.2009
- Seating Capacity
- 07S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16258D
|
16258D
16258-28020 Gasket(For Water By-Pass Pipe)[05.2001 - 04.2003] 2AZFE..ACM2# |
16258-28020 |
US $6.12 |
||
| replacement | |||||
|
16258D
|
16258D
16258-28040 Gasket(For Oil Cooler Pipe Union Bolt)[05.2001 - 04.2003] 2AZFE..ACM2# |
16258-28040 |
from US $2.59 |
||
|
16258D
|
16258D
16258-28021 Gasket(For Water By-Pass Pipe)[04.2003 - 08.2003] 2AZFE..ACM2# |
16258-28021 |
US $6.12 |
||
| replacement | |||||
|
16258D
|
16258D
16258-28040 Gasket(For Oil Cooler Pipe Union Bolt)[04.2003 - 08.2003] 2AZFE..ACM2# |
16258-28040 |
from US $2.59 |
||
|
16258D
|
16258D
16258-28040 Gasket(For Oil Cooler Pipe Union Bolt)[08.2003 - 10.2003] 2AZFE..ACM2# |
16258-28040 |
from US $2.59 |
||
|
16279F
|
16279F
16279-28030 Pipe, Water By-Pass, No.3[05.2001 - 10.2003] 2AZFE..ACM2# |
16279-28030 |
US $47.47 |
||
|
16279F
|
16279F
16279-28060 Pipe, Water By-Pass, No.3[10.2003 -] 2AZFE..ACM2#..07S |
16279-28060 |
US $26.21 |
||
|
16282B
|
16282B
16282-28010 Hose, Water By-Pass, No.5[05.2001 - 10.2003] 2AZFE..ACM2# |
16282-28010 |
US $8.01 |
||
|
16282B
|
16282B
16282-28090 Hose, Water By-Pass, No.5[10.2003 - 12.2009] 2AZFE..ACM2# |
16282-28090 |
US $7.51 |
||
|
32921C
|
32921C
90404-13004
Union(For Oil Cooler Tube)
[05.2001 - 10.2003] ACM2# アウトレット |
90404-13004 |
— | ||
| replacement | |||||
|
32921C
|
32921C
90404-13010 Union(For Oil Cooler Tube)[05.2001 - 10.2003] ACM2# アウトレット |
90404-13010 |
US $5.56 |
||
|
32921C
|
32921C
90407-13009 Union(For Oil Cooler Tube)[05.2001 - 10.2003] ACM2# インレット |
90407-13009 |
US $5.39 |
||
| replacement | |||||
|
32921C
|
32921C
90407-13010 Union(For Oil Cooler Tube)[05.2001 - 10.2003] ACM2# インレット |
90407-13010 |
US $7.17 |
||
|
32921G
|
32921G
90301-10189 Ring, O(For Oil Cooler Tube Union)[05.2001 - 10.2003] ACM2# |
90301-10189 |
from US $2.63 |
||
|
32941
|
32941
32941-44010 Hose, Oil Cooler Inlet, No.1[05.2001 - 10.2003] ACM2# |
32941-44010 |
US $22.01 |
||
|
32942A
|
32942A
90445-17069 Hose, Oil Cooler Water Outlet[05.2001 - 10.2003] ACM2# |
90445-17069 |
from US $9.98 |
||
|
32942A
|
32942A
90445-17100 Hose, Oil Cooler Tube[03.2008 -] ACM2# |
90445-17100 |
from US $10.88 |
||
|
33493A
|
33493A
33493-44010 Cooler, Transmission Oil[05.2001 - 10.2003] ACM2# |
33493-44010 |
US $211.20 |
||
|
33829G
|
33829G
33829-44040 Support, Transmission Control Cable[05.2001 - 10.2003] ACM2# |
33829-44040 |
US $24.75 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.66 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
9010510301
|
9010510301
90105-10301 BOLT WASHER BASED |
90105-10301 |
US $1.97 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.78 |
||
|
9046616004
|
9046616004
90466-16004 Clip(For Ventilation Hose No.2) |
90466-16004 |
from US $1.85 |
||
|
9415080640
|
9415080640
94150-80640 NUT FLANGE |
94150-80640 |
from US $0.74 |
||
|
9613441900
|
9613441900
96134-41900 Clip Or Clamp(For Ventilation Hose) |
96134-41900 |
from US $1.61 |
||
|
9613642101
|
9613642101
96136-42101 Clip, Hose(For Radiator Hose Sub-Assy) |
96136-42101 |
from US $2.93 |
||
