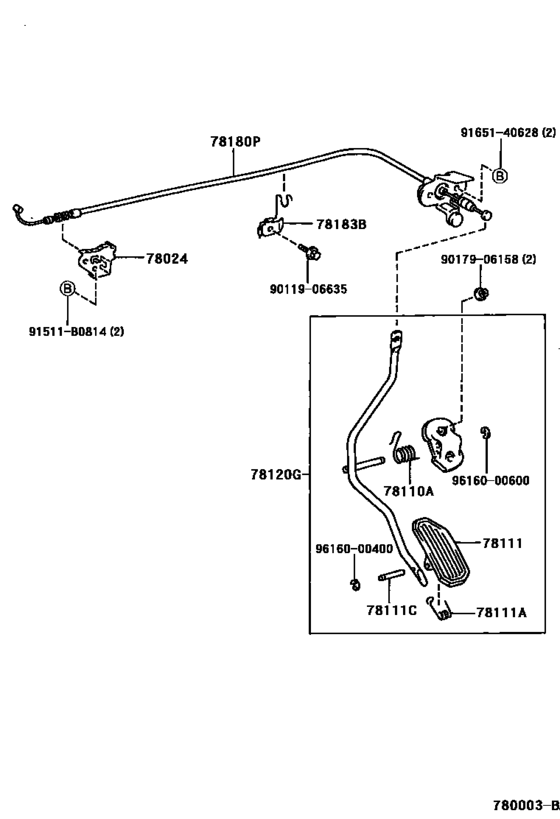

Accelerator Link ([05.1996 - ] (9605- )SXM1#) Diagram Toyota IPSUM
- Year
- 1996 - 2001
- Sales region
- Japan
- Frame
- SXM10
- grade
- E
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- From
- 05.1996
- To
- 05.2001
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-44020
Bracket Sub-Assy, Accelerator Control Cable
[05.1996 -] SXM1# |
78024-44020 |
— | ||
|
78110A
|
78110A
90508-18048 Spring (For Accelerator Pedal Rod)[05.1996 -] SXM1# |
90508-18048 |
US $1.40 |
||
|
78111
|
78111
78111-20050 Pedal, Accelerator[05.1996 -] CXM10,SXM1# |
78111-20050 |
US $13.98 |
||
|
78111A
|
78111A
90508-18050
Spring (For Accelerator Pedal Rod)
[05.1996 -] SXM1# |
90508-18050 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[05.1996 -] CXM10,SXM1# |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-44010 Rod Assy, Accelerator Pedal[05.1996 -] SXM1# |
78120-44010 |
US $32.32 |
||
|
78180P
|
78180P
78180-44010 Cable Assy, Accelerator Control[05.1996 -] SXM1# |
78180-44010 |
US $39.89 |
||
|
78183B
|
78183B
78183-44010 Clamp, Accelerator Control Cable[05.1996 -] SXM1# |
78183-44010 |
US $4.22 |
||
| replacement | |||||
|
78183B
|
78183B
78183-44030 Clamp, Accelerator Control Cable[05.1996 -] SXM1# |
78183-44030 |
US $5.24 |
||
|
91511B0814
|
91511B0814
91511-B0814 BOLT |
91511-B0814 |
US $1.60 |
||
|
9011906635
|
9011906635
90119-06635 New Genuine Part |
90119-06635 |
US $1.92 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9165140628
|
9165140628
91651-40628 New Genuine Part |
91651-40628 |
US $0.61 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
